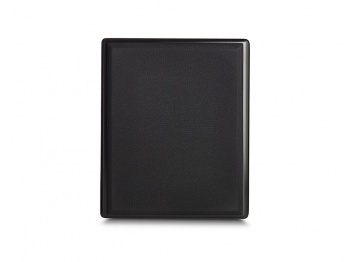

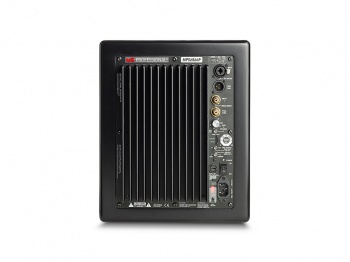

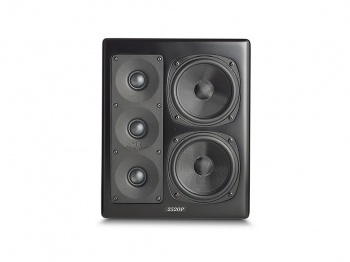

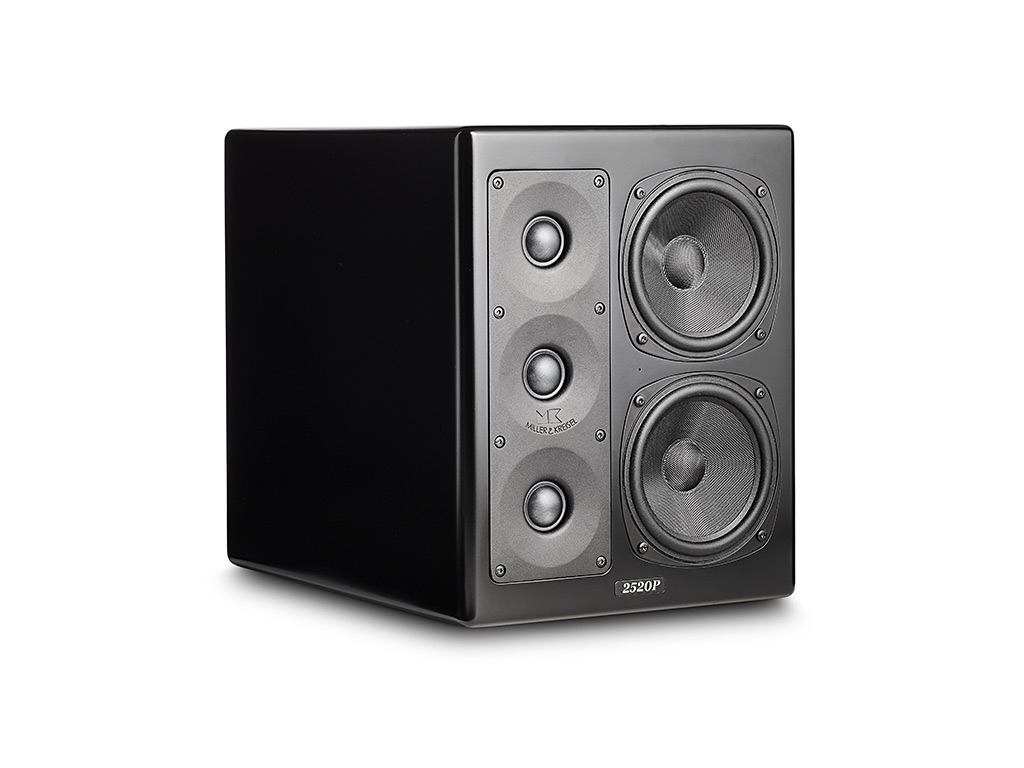

Miller & Kreisel 2520P THX Active Studio Monitor
Zoom  Zoom
Miller & Kreisel 2520P THX Active Studio MonitorMiller & Kreisel 2520P THX Active Studio MonitorMiller & Kreisel 2520P THX Active Studio MonitorMiller & Kreisel 2520P THX Active Studio Monitor

Miller & Kreisel 2520P THX Active Studio Monitor

Call for price
|  |

Miller & Kreisel 2520P THX Active Studio Monitor

The MPS2520P studio monitor are featured with a total of 5 loudspeaker units providing impressive sound impact in an ultra-compact format.

The dual channel power amplifiers drive the bass-midrange and high frequency sections with great precision and full control of signal dynamics.

The 5.25” bass-midrange drivers are tuned for sealed box with 0.707 box Q to provide an absolute optimal system step response control. Combined with triple stacked tweeters operating down to 1.2Khz, makes the MPS2520P sound response become fast and sharp, with superior qualities to control reference recordings, editing, processing, and master mixing for music and movie productions.

MPS2520P are designed for easy system setup using the build in high pass filter for smooth integration with M&K subwoofers.

Sound

Amplifier power bass-midrange: 200watt RMS/400watt peak
Amplifier power high frequency: 180watt RMS/360watt peak
Bass/Midrange: 2 x 5.25 Glassfibre
High frequency Drivers: 3 x 1,1” soft fabric dome
Frequency Response: 80-12KHz +/-1dB / 12-20KHz +/-2dB
Total Harmonic distortion: 0.002% into 4 ohms LF Channel / 0.03% into 4 ohms HF channel
Signal to noise ratio: 100dB
AC power consumption: Standby/Average/Max 17W, 45W, 360W
AC line voltage: 115VAC/60Hz 5A – 230VAC/60Hz 3.15A
Input impedance unbalanced: 11Kohm / balanced 22Kohm
Input sensitivity unbalanced 1 00mV 90dB 1m / balanced 200mV 90dB 1m
Max output level: 110dB/100Hz
Max input: 24dBu balanced
High pass filter: Fixed 80 Hz (24dB)
Vertical directivity control: Wide/Narrow – 50/30 Deg.

Dimensions

Dimensions HxWxD: 12.8 x 10.6 x 15.8” / 327 x 270 x 401 mm
Weight: 39.6 lbs / 18 kg

Colors

Finish: Black satin

Be the first to Write a Review for this item!

Related Products

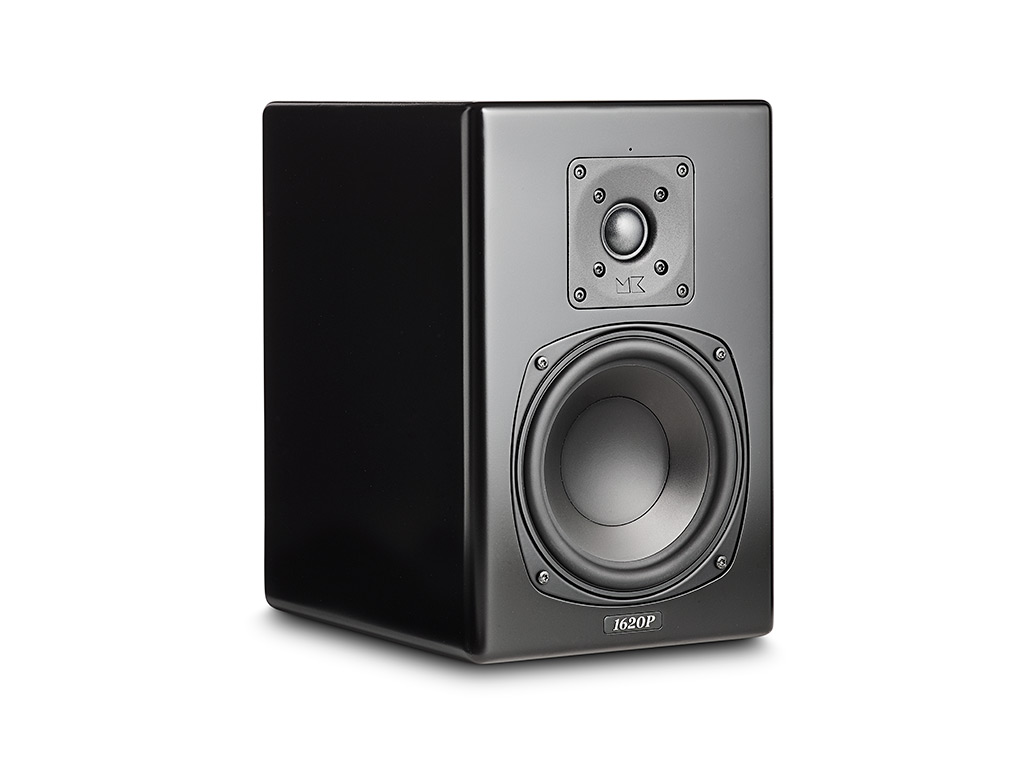

Miller & Kreisel 1620P Active Studio Monitor
