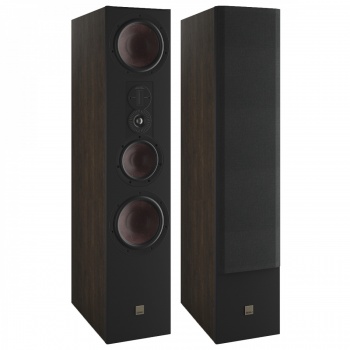

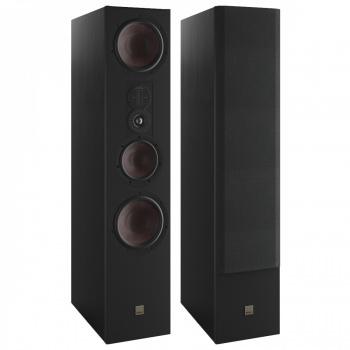

Dali Opticon 8 MK2 Speakers

The large-scale, floorstanding OPTICON 8 MK2 is the powerhouse of the new OPTICON MK2 family - the only three-way system in the series. The speaker combines immense low frequency bandwidth, volume potential and dynamic accuracy with the extraordinary detail and clarity from the dedicated midrange driver. The OPTICON 8 MK2 offers an extended low frequency profile that suits installation in large listening spaces with more distant room boundaries.

SMC TECHNOLOGY

The SMC used in OPTICON MK2's magnet motor system has very high magnetic permeability and very low electrical conductivity. It works primarily by minimising eddy currents in the magnet system pole piece. This improves flux linearity, reducing the magnetic hysteresis. Resulting in a significant reduction of electro-acoustic distortion.

REFLEX PORTS

The newly introduced OPTICON MK2 Dual Flare technique brings port design into the realm of aerodynamics - with exit and entry flares carefully designed to minimise turbulence. Dual Flare enables OPTICON MK2 reflex ports to remain laminar and work effectively to reinforce low frequency performance to a significantly higher volume level than would otherwise be possible.

ASSEMBLED IN PAIRS

Speakers used and enjoyed in pairs should also be built as pairs! Our manufacturing process is designed to ensure that stereo pairs of speakers are built and tested sequentially by a single manufacturing technician, using components taken in the same order from the same batch. It’s a process that helps ensure ultimate visual and acoustic pair matching.

MADE IN DENMARK

Manufacture of the OPTICON MK2 series has been retained firmly at our Danish factory. Our in-house woodworking facility handles everything from cutting the MDF enclosure panels to applying the surface finishes. Assembly by hand, testing and quality approval on each and every speaker is also handled on our own assembly lines.

Frequency Range (+/-3 dB) [Hz]	38 - 30,000
Sensitivity (2,83 V/1 m) [dB]	88.5
Nominal Impedance [ohms]	4
Maximum SPL [dB]	112
Recommended Amplifier Power [W]	40 - 300
Crossover Frequency [Hz]	380 / 2,200 / 14,000
Crossover Principle	3 + ½-way
Hybrid tweeter module, Super high freq. driver, Quantity	1 x 17 x 45 mm
Hybrid tweeter module, Super high freq. driver, Diaphragm type	Ribbon
Hybrid tweeter module, High frequency driver, Quantity	1 x 29 mm
Hybrid tweeter module, High frequency driver Diaphragm type	Soft Textile Dome
Midrange driver, Quantity	1 x 6 1/2"
Midrange driver, Diaphragm type	Wood Fibre Cone
Low frequency driver, Quantity	2 x 8"
Low frequency driver, Diaphragm type	Wood Fibre Cone
Enclosure type	Bass Reflex
Bass Reflex Tuning Frequency [Hz]	29.5
Connection Input	Bi-Wiring Bi-Amping (INT)
Magnetic Shielding	No
Recommended Placement	Floor
Recommended Distance From Wall [cm]	30 - 150
Dimensions With Base (HxWxD) [mm]	1141 x 241 x 450
Accessories Included	Manual Rubber Feet Spikes M8 Assembly Tools
Weight [kg]	34.0
