Miller & Kreisel C15S/VA500 Custom 15 Subwoofer System

Call for price

Description
Specifications
Customer Reviews (0)

Miller & Kreisel C15S/VA500 Custom 15 Subwoofer System

In our constant strive to be the BEST “go-to-speakers” for Home Cinema installations we have developed the real NO Compromise Bass machine.

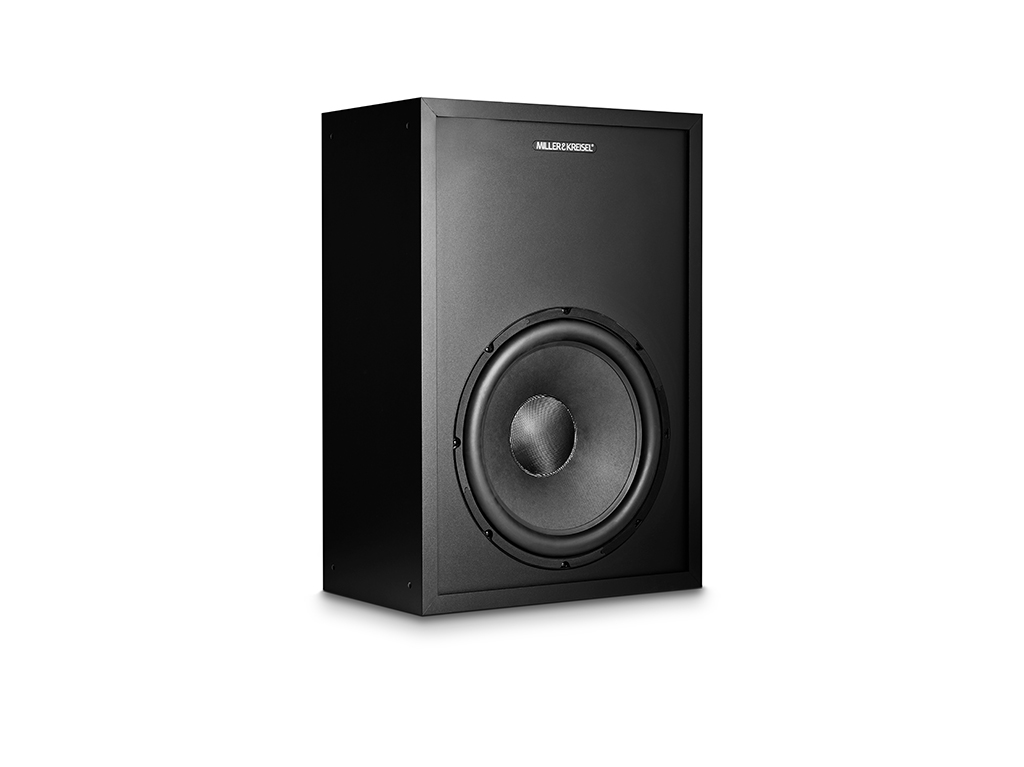

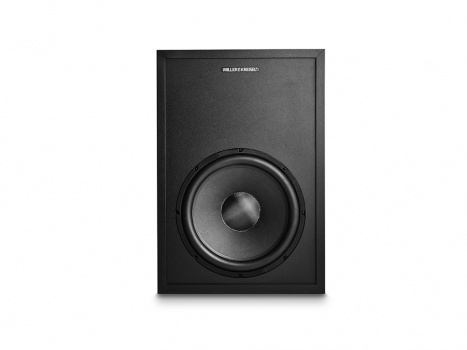

Introducing the C15S Custom Install Subwoofer. Designed for custom installations

Bigger is better when it comes to bass. Falling between the X10 and X12 in total woofer area, the C15S is a no-compromise bass machine.
Designed for behind the screen installations the C15S is only 298mm deep, same as the S150.
Full 1″ MDF cabinet construction with full center brace with additional front to back braces for Ultra-rigid cabinet construction.
Included Bass Brace brackets for bolting down to the floor/stage for safety, security and increased vibration reduction.
Included Stacking Coupler for stacking multiple subwoofer for additional output.
Separate subwoofers and amplifiers increase thermal performance.
External amp – VA500 Blue tuned specifically for the C15S with 3 custom boundary compensation EQ´s.
The C15S builds on the technology of the X-Series and V-Series subwoofers and goes BIG. With output on par with the dual 10” X-10 subwoofer (without the advantages of Push-Pull) in a single driver enclosure, the C15S is designed to enhance custom and large installations.

Utilizing a specially tuned VA-500 amplifier, the entire system was custom designed from the ground up to reproduce the deepest notes at levels loud to be heard and felt.

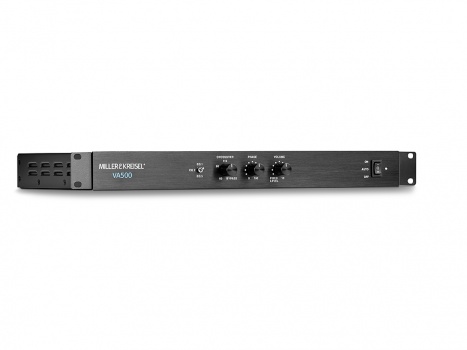

VA500 Blue Edition

Packaged with the C15S is this dedicated Class D amplifier with high efficiency, cool running and low standby voltage consumption is a further development of the amplifiers built into the popular Miller & Kreisel V Series subwoofers.

The Class D switch mode power module is designed with effective power reserves to effortlessly deliver copious amounts of clean power to the C15S sub for extraordinary, uncompromising handling of demanding deep bass transients

Sound

Amplifier Power:	200 watt RMS /350 watt peak
Frequency Response:	25-200Hz +/- 2dB
Total Harmonic Distortion:	0.5% 200 watt, 4 ohm
AC Power Consumption:	Standby/Average/Max 0,5/40/200W
AC Line Voltage:	100-240 VAC 50/60Hz 4A
LFE Input:	L/R line level RCA
LFE Passthrough Output:	L/R line level RCA
Lowpass Filters:	60–200 Hz Continuously variable, No low pass THX mode
Phase:	0-180 deg : Continuously variable
Volume:	Continuously variable

Dimensions

Dimensions HxWxD:	15,9” x 12,4“ x 13,7” / 405 x 3,3 x 350 mm
Weight:	39,7 lbs / 18,0 kg

Colors

Finish:

Black satin / White satin
