Monitor Audio C3L-A Creator Series In-Ceiling Speaker
Zoom  Zoom
 Monitor Audio C3L-A Creator Series In-Ceiling SpeakerMonitor Audio C3L-A Creator Series In-Ceiling Speaker

Monitor Audio C3L-A Creator Series In-Ceiling Speaker

Available In-Store Only or Buy and Collect

£950.00
£791.67 Exc. VAT |  |

Monitor Audio C3L-A Creator Series In-Ceiling Speaker

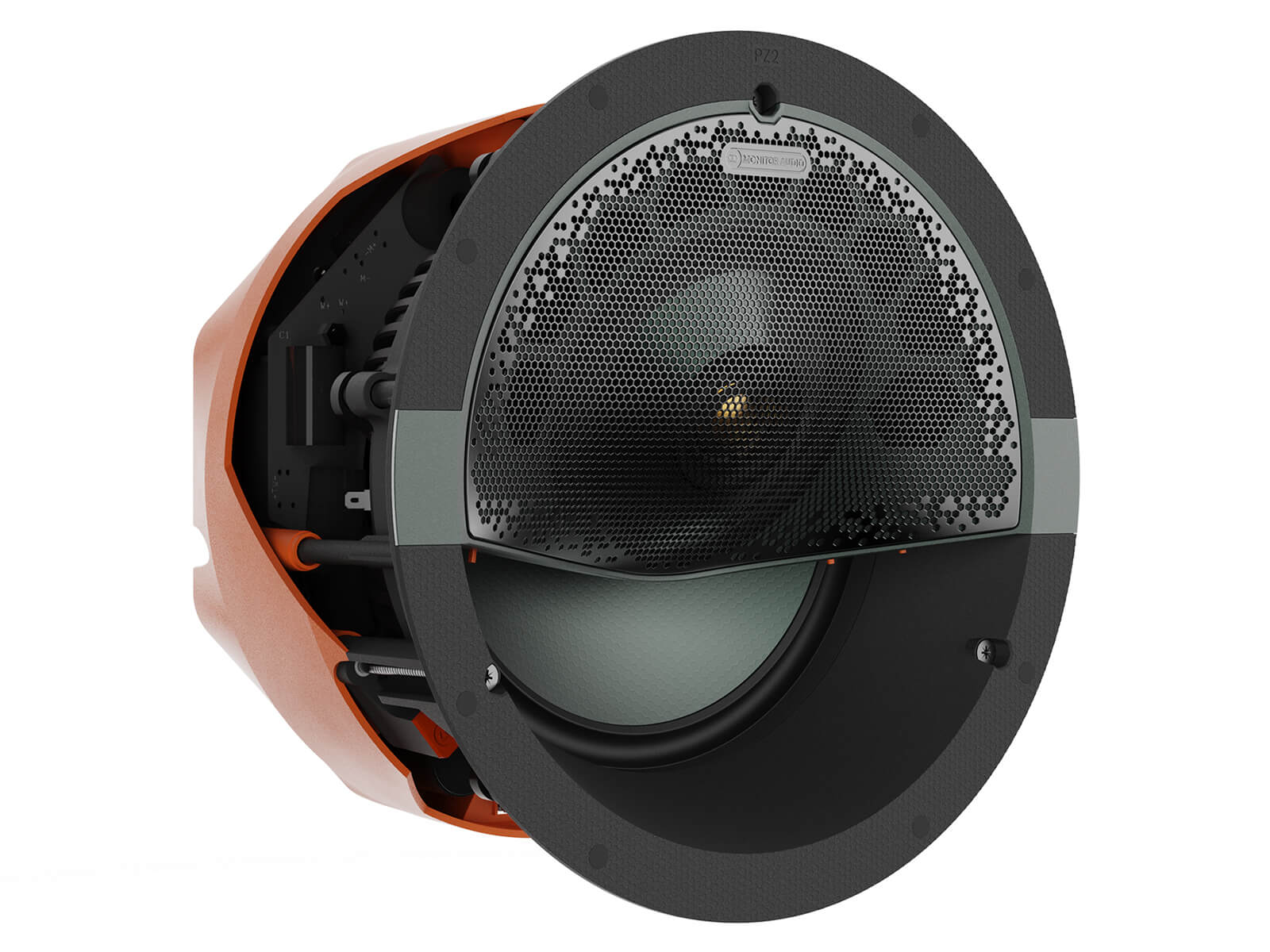

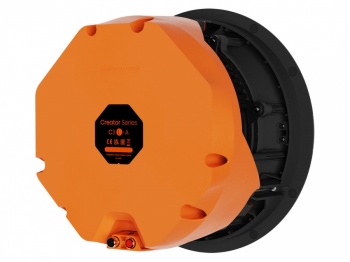

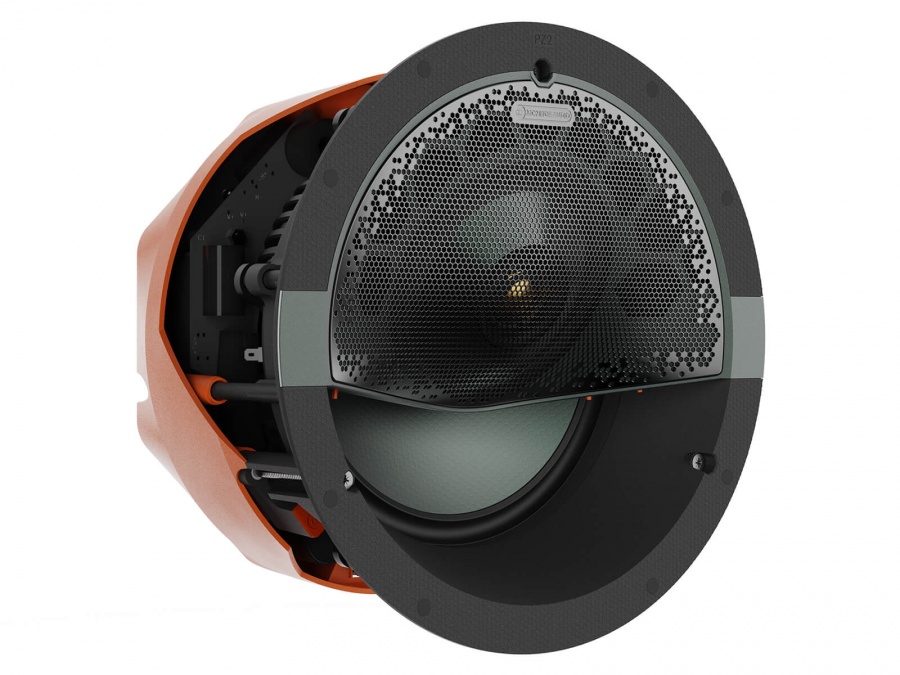

C3L-A is a new and invaluable addition to the Creator Series. ‘A’ stands for ‘Angle’, and the speaker consists of a fixed-angle IDC II that delivers a ‘spotlight’ effect that focusses and directs the mid-range and high-frequency sound into the listening area for improved intelligibility and clarity.

The completely redesigned IDC II is set at 25 degrees and delivers focused sound across the full frequency range into the listening area, making it an ideal in-ceiling LCR speaker – where In-wall speakers aren’t possible.

Supported with the lightweight, pistonic RDT III cone and an extensive motor system to drive it, the soundstage and dynamic range is highly impressive. C3L-A is ideal for creating a discreet home theatre and multi-channel music solution that offers high-fidelity performance, detail, clarity and deep, controlled bass.
It has a cut-out diameter of 248 mm and uses the patented Quik-Link speaker cable connecter, which revolutionises the ease and speed of speaker installation. Tri-Grip has also been evolved for simple, reliable and strong fitment.

Optional square grille can be used with this model.


Key Features

  • Ideal for installations where high-performance acoustics are desired
  • Angled IDC II projects sound into the room for pin-point accuracy
  • Three-way design
  • Mid-frequency ‘mid-pod array’
  • 1 x 1" (25 mm) IDC II tweeter with UD Waveguide II for lifelike sound
  • 1 x 9" (229 mm) RDT III bass driver
  • 1 x 4" (102 mm) IDC II mid-range driver
  • Patented Quik-Link speaker cable connector for quicker installation
  • Tri-Grip II for easy and secure fitment

System Format

3–Way

Channels

1

Frequency Response, Installed (-6dB)

45 Hz – 35 kHz​

Nominal Impedance

6 ohm

Minimum Impedance (20Hz to 20kHz)

4.6 Ohm @ 2 kHz

Sensitivity (2.83Vrms@1m, Installed)

89 dB

Maximum Peak SPL* (single speaker @ 1m Z-Weighted)

119 dB

Continuous Power Handling (RMS into Nominal Impedance, Pink Noise with 6dB Crest Factor)

150 W

Recommended Amplifier Power (RMS into 8 OHM, Music Signal)

60 – 225 W

Drive Unit Complement

1 x 9" (229 mm) RDT III bass driver
1 x 4" (102 mm) IDC II midrange driver
1 x 1" (25 mm) IDC II tweeter

Crossover Frequency

LF/MF: 700 Hz
MF/HF: 3 kHz

Mounting Depth

157 mm (63/16")

Cut-Out Hole Diameter

248 mm (93/4")

External Dimensions (Including Grille (H x W x D))

278 x 278 x 161​ mm (1015/16 x 1015/16 x 65/16")

Weight (each)

5.1 kg (11 lb 3 oz)

Pre-Construction Bracket

CL-B

Cabinet Finish

Matt black & Orange​ & Green

Sold As

Single Unit

Corner Switch

On/Off

HF Switch

- /0/ +

MF Switch

- /0/ +
