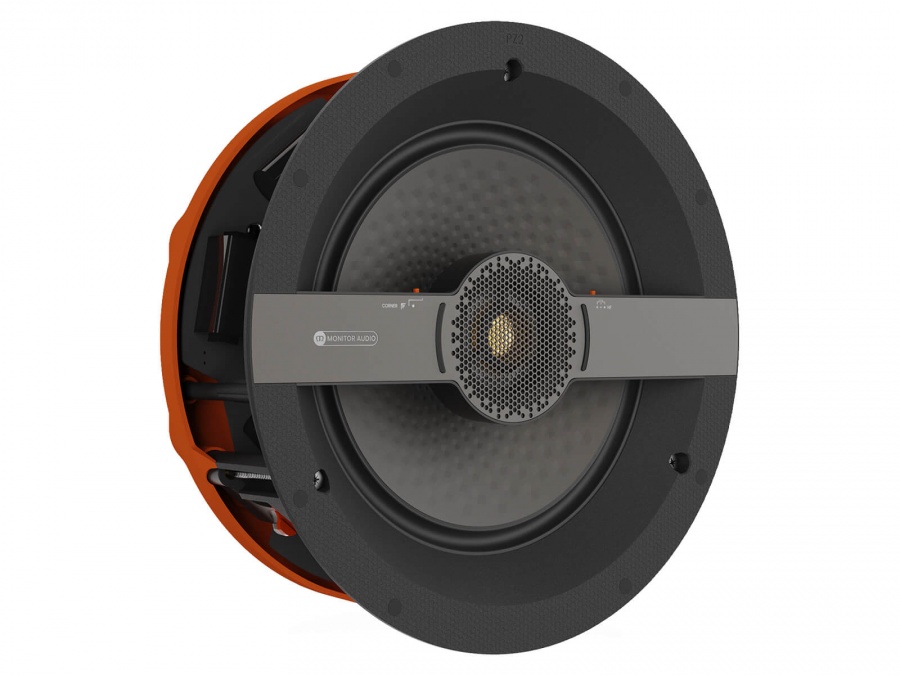

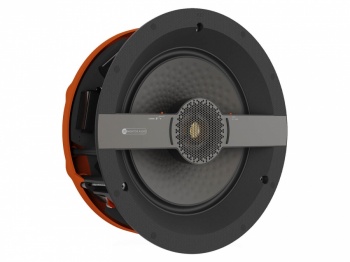

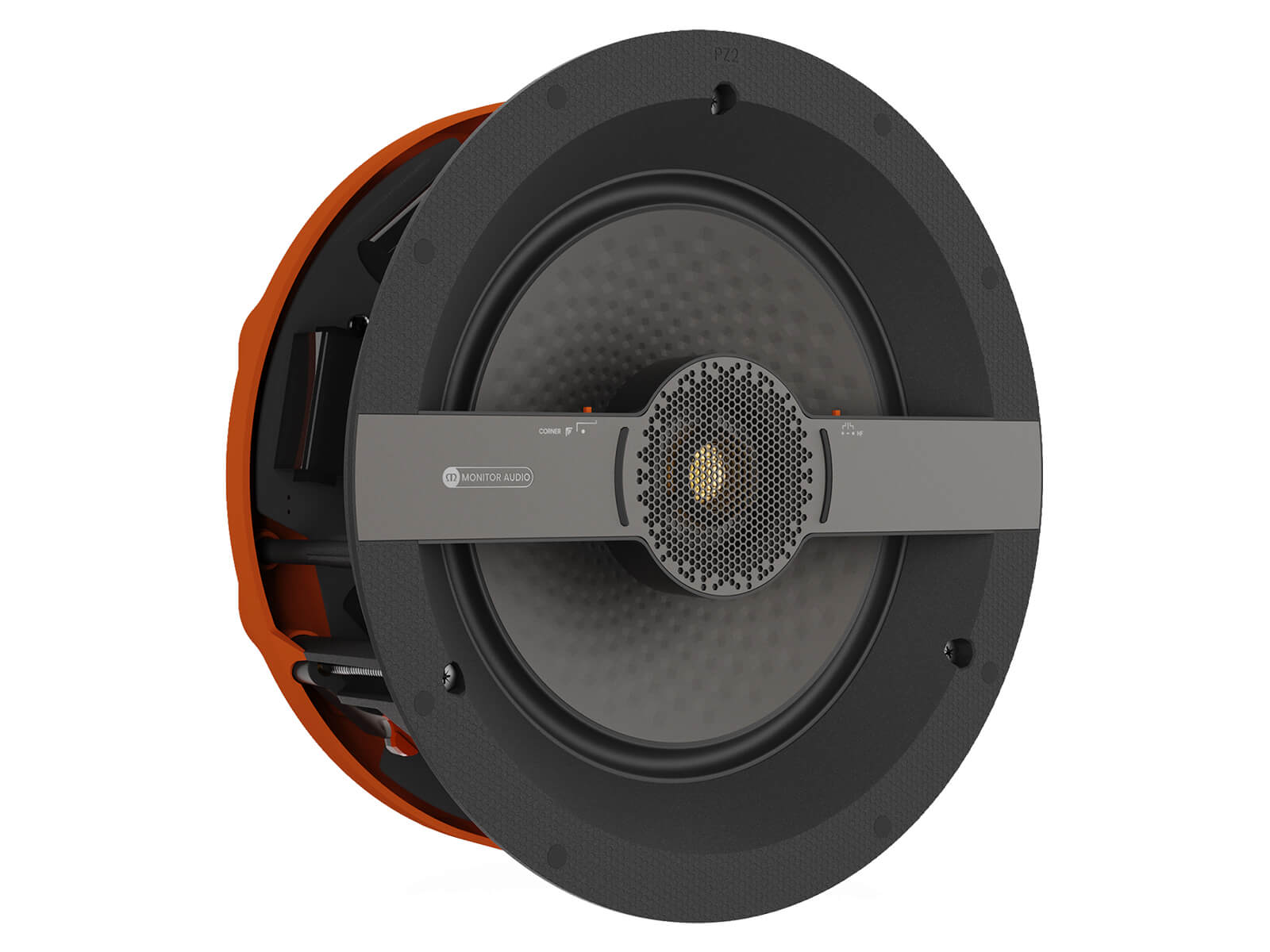

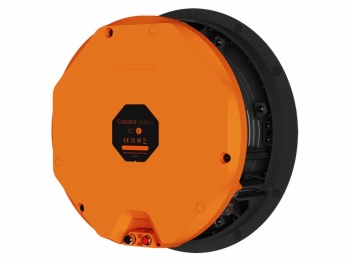

Monitor Audio C2L Creator Series In-Ceiling Speaker
Zoom  Zoom
 Monitor Audio C2L Creator Series In-Ceiling SpeakerMonitor Audio C2L Creator Series In-Ceiling Speaker

Monitor Audio C2L Creator Series In-Ceiling Speaker

Available In-Store Only or Buy and Collect

£450.00
£375.00 Exc. VAT |  |
Share

Monitor Audio C2L Creator Series In-Ceiling Speaker

This large Tier 2 in-ceiling loudspeaker is designed to deliver pristine, engaging acoustics where high-performance sound is a key requirement. It is a two-way model featuring an RST II mid-bass driver and C-CAM tweeter. The performance benefit of having both within a single design means greatly improved clarity, wider dispersion into the listening environment, and clear lifelike high-fidelity sound – of the quality you’d expect from any Monitor Audio passive box loudspeaker. It has a cut-out dimension of 248 mm and revolutionary patented Quik-Link speaker cable connector and Tri-Grip II for quick, simple, reliable and strong installation and fitting.

Optional square grille can be used with this model.


Key Features

  • Ideal for installations where pristine acoustic performance is required
  • Two-way design
  • 1 x 1.25" (32 mm) C-CAM tweeter with UD Waveguide II for lifelike sound
  • 1 x 9" (229 mm) RST II mid-bass driver for pristine mid-range and full bass
  • Patented Quik-Link speaker cable connector for quicker installation
  • Tri-Grip II for easy and secure fitment

System Format

2–Way

Channels

1

Frequency Response, Installed (-6dB)

30 Hz – 25 kHz​

Nominal Impedance

8 ohm

Minimum Impedance (20Hz to 20kHz)

6.4 Ohm @ 15 kHz

Sensitivity (2.83Vrms@1m, Installed)

88 dB

Maximum Peak SPL* (single speaker @ 1m Z-Weighted)

117 dB

Continuous Power Handling (RMS into Nominal Impedance, Pink Noise with 6dB Crest Factor)

120 W

Recommended Amplifier Power (RMS into 8 OHM, Music Signal)

60 – 240 W

Drive Unit Complement

1 x 9" (229 mm) RST II bass driver
1 x 1.25" (32 mm) C-CAM tweeter

Crossover Frequency

LF/HF: 2 kHz

Mounting Depth

99 mm (37/8")

Cut-Out Hole Diameter

248 mm (93/4")

External Dimensions (Including Grille (H x W x D))

278 x 278 x 103​ mm (1015/16 x 1015/16 x 44/16")

Weight (each)

2.5 kg (5 lb 8 oz)

Pre-Construction Bracket

CL-B

Cabinet Finish

Matt black & Orange​ & Bronze

Sold As

Single Unit

Corner Switch

On/Off

HF Switch

- /0/ +
