Q Acoustics Q 3020i Bookshelf Speakers
Expectations, Elevated
The 3000i Series is an evolution of the 3000 Series, which has undergone a number of innovative improvements intended to bring about significant enhancements in both sonic performance and aesthetics from the already established and highly awarded range. The 3000i Series forms the core Hi-Fi loudspeaker offering from Q Acoustics.
Coming from a fusion of both evolutionary and revolutionary thinking, the 3000i Series benefits from state-of-the-art speaker technology, as well as improvements to the cabinet construction. Every 3000i Series model is an outstanding, genuine Hi-Fi loudspeaker with models that can also be combined to deliver a fantastic home cinema sound.
Beautiful to behold and available in four attractive finishes. The perfect soundstage for movies and music, at an impressive price point that will deliver a pure and uncoloured sound that will please even the most discerning audiophile.
Leading Technology, Pioneering Innovation
At the heart of the 3000i Series is a wealth of technology to ensure these are a true step up from an already highly awarded series. P2P™ bracing has been introduced to help keep the enclosure extra quiet, HPE™ to eliminate sympathetic resonance, equalising air pressure within the cabinet and a 22mm High Frequency Driver with a micro-fibre soft dome with wide surround which helps to create a wide, even dispersion of stereo. Just a few of the many technologies employed to elevate the 3000i Series.
P2P™
Q Acoustics P2P™ (Point to Point) bracing across the 3000i series supports the parts of the enclosure that need to be stiffened making the new enclosures exceptionally rigid, improving the focus of the stereo image and giving the soundstage more accuracy than ever before.
High-Frequency Driver Unit
3000i Series tweeters are decoupled from the baffle via a compliant suspension system. Vibrations from the woofer, which can impair the performance of the tweeter are isolated allowing the tweeter to perform with dramatically reduced interference.
Mid/Bass Driver
Whichever 3000i model you choose the cone is precision formed from impregnated and coated paper and teamed with a newly developed, low-hysteresis, rubber surround. The coated paper cone provides the optimum balance between stiffness and self- damping which means it can accelerate without flexing and stop very accurately without unwanted resonances.

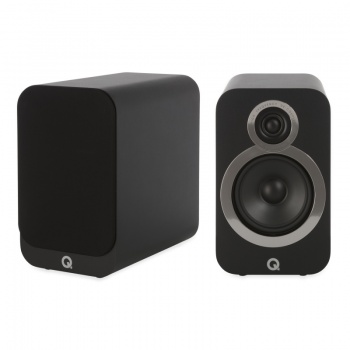

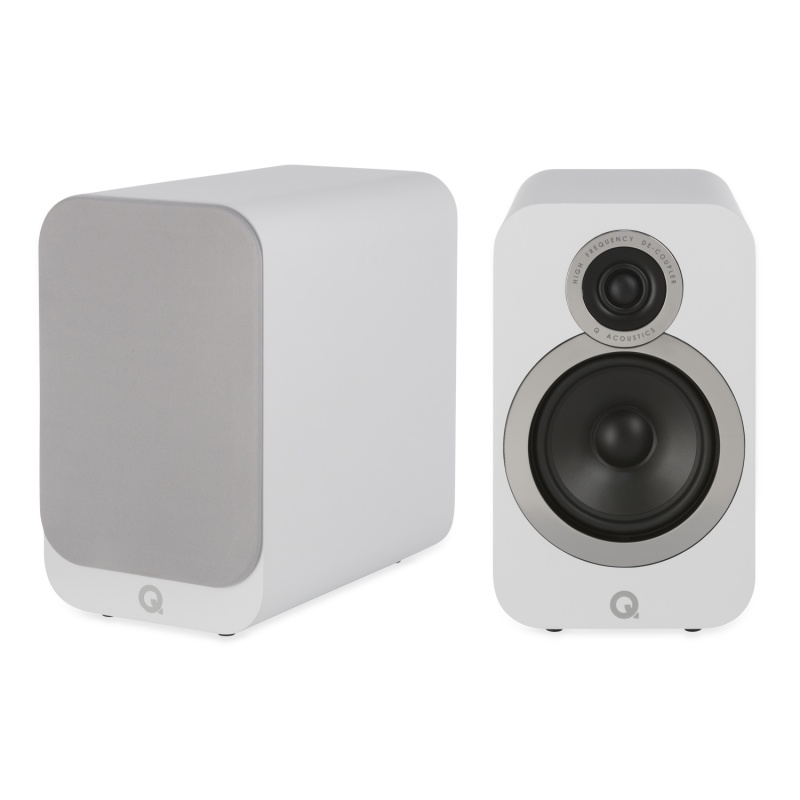

Q 3020i
Substantial Standmount / Bookshelf Speakers with 125mm (5 in) and 22mm (0.9 in) precision drivers, which can be shelf-mounted on compliant pre-fitted rubber feet, stand-mounted or wall-mounted on dedicated optional stands and brackets.
A cabinet as deep as it is high provides the listener with deep powerful bass from as small a frontal area as is possible to achieve.
Foam bungs are provided for the rear-facing ports to help with less than ideal room positioning. The level of bass can be reduced to compensate, but definition and bass extension are increased.
Conventional terminal panel cut-outs have been removed, giving greatly improved structural integrity to the enclosures and new low profile binding posts have been incorporated with sockets deep enough to accept 4mm (0.16 in) Banana Plugs
Specifications:
- Enclosure type: 2-way reflex
- Bass Unit: 125 mm (5 in)
- Treble Unit: 22 mm (0.9 in)
- Frequency Response (+3 dB, -6 dB): 64 Hz – 30 kHz
- Nominal Impedance: 6ohm
- Minimum Impedance: 4ohm
- Sensitivity (2.83 V@1 m): 88 dB
- Stereo Amplifier Power: 25 - 75w
- AV Receiver (2 ch. driven): 50 - 75w
- Crossover Frequency: 2.4kHz
- Effective Volume: 6.1 L (372 cu in)
- Dimensions H/D/W mm: 170 x 278 x 282 mm (6.7 x 10.9 x 11.1 in)
What's in the box?
- 2 x 3020i bookshelf speakers
- 2 x Foam Bungs
- 2 x Speaker Grilles
- 1 x User Manual
- 1 x Handling Gloves.
- 8 x Rubber Speaker Grips
