Quad S-1 S Series Loudspeakers
Zoom  Zoom
Quad S-1 S Series LoudspeakersQuad S-1 S Series LoudspeakersQuad S-1 S Series Loudspeakers

Quad S-1 S Series Loudspeakers

  (2 Reviews)

The S-1 speakers are the smallest speakers in new S-series range, sporting a bespoke ribbon tweeter for a spellbindingly sensuous sound

£549.95
£458.29 Exc. VAT |  |


Please note we are unable to export any Quad products to the USA due to distribution restrictions

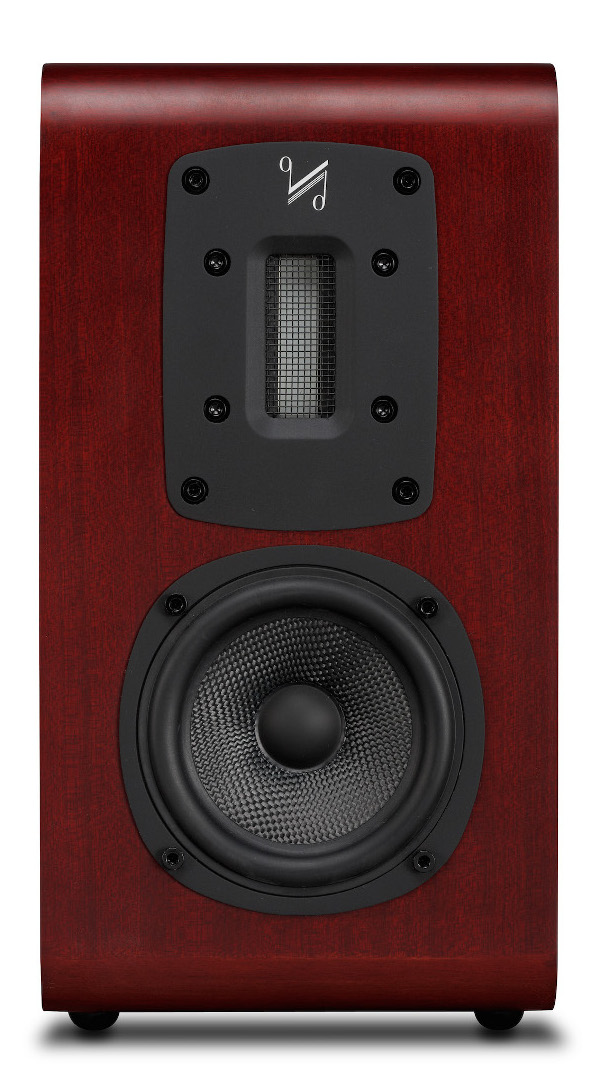

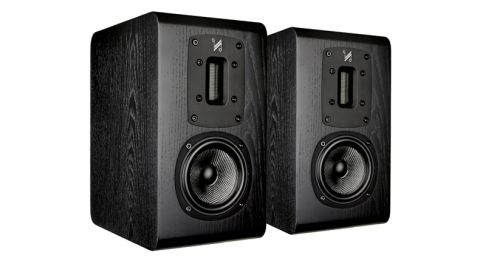

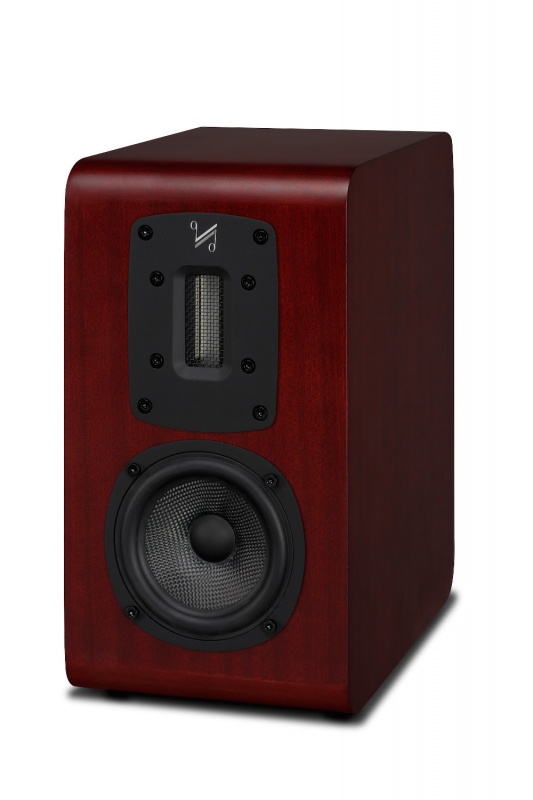

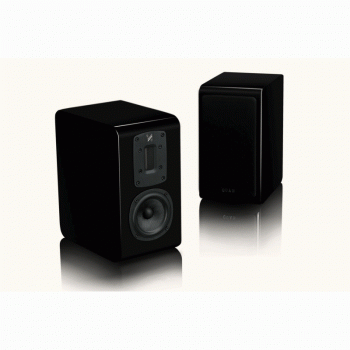

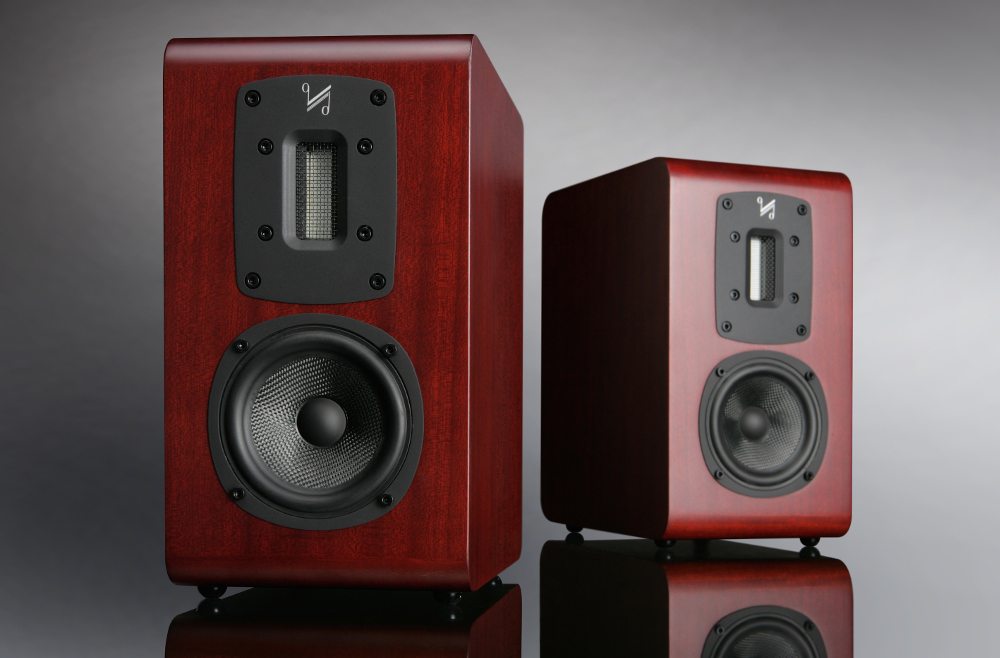

Quad S-1 S Series Loudspeaker

Quad marks its 79th year with an all-new loudspeaker range: the S Series. Each model combines advanced Kevlar-coned bass/midrange drivers with a specially designed ribbon tweeter, supplying effortless sonic expression to capture all the nuances and passion of the original performance.

"Pioneering technology on a small scale"

Just 285mm high, the standmount S-1 incorporates a 100mm bass/mid cone, yet still elegantly proportioned.

The S-1 sports a bespoke ribbon treble unit, delivering effortlessly extended high frequencies that are audibly superior to those supplied by typical dome tweeters. The use of a ribbon-based driver is not new to Quad; in fact, the company’s first loudspeaker was known as the Corner Ribbon, launched in 1949. Back then, ribbon drivers were delicate affairs, easily prone to burning out if overpowered.


The new ribbon unit developed for the S-1 is a thoroughly modern affair, utilising the latest techniques and materials. The ribbon itself is a sandwich construction, making it robust enough to handle high-powered amplifiers, and is fully immersed in a powerful magnetic field so that it accomplishes its dual role of being both the voice coil and the sound radiator.

"Sumptuous Sonics"

As well as delivering excellent transient response and superb musical detail, the sound from this ribbon unit is smooth right up to the highest musical overtones beyond the limits of human hearing. Controlled directivity maintains this sound quality over a wide horizontal arc to cover all listeners whilst vertical dispersion is tailored to avoid floor and ceiling reflections, resulting in the purest high frequency performance at the listening seat.


This ribbon tweeter is aligned with Quad’s Kevlar-coned bass and midrange drivers through sophisticated crossover networks. While the standmount models use carefully tuned, rear-firing reflex ports to augment the bass, the floorstanders are unusual in incorporating three ABRs (Auxiliary Bass Radiators) in place of a port. These passive, rear-firing bass units support the main drivers to extend bass response down to 35Hz whilst maintaining an accurate and articulate rendition of instrument fundamentals

"Cutting edge construction"

Beautifully presented with rounded top edges at the front and rear, each speaker cabinet uses a sandwich construction of alternate layers of MDF and high-density particleboard to reduce panel resonance to below the level of audibility. Aesthetically, the look is classically Quad yet subtly updated, available initially in a choice of black or sapele mahogany wood veneers.



  • Configuration: Two-way standmount
  • Tweeter: 12x45mm True Ribbon
  • Midrange (or bass/mid) driver: 100mm woven Kevlar
  • Bass drivers: N/A
  • Bass system: Reflex port
  • Sensitivity (2.83V @ 1m): 84dB
  • Recommended amp power: 25-100W
  • Nominal impedance: 8 Ohms
  • Frequency response (+/-3dB): 58Hz ~ 20kHz
  • Bass extension (-6dB): 55Hz
  • Crossover frequency: 3.2kHz
  • Cabinet volume: 8.15L
  • Dimensions (HxWxD): 285x156x240mm
Average Rating (2 Reviews):
Write a Review and share your opinions!

Rating:
good sound
04 April 2017  |

good sound, but the color of the cabinet is not so good ,ihave them in mahogany ,when the light falls on it you see rare spots ,but the sound is good, don't place them to close by the wall,you get a booming bass,but it's still worth the money

Was this helpful to you?  Yes  /  No

6 of 15 people found this review helpful.


Rating:
Wonderful !
21 September 2016  |

I use them in a 15-25m2 room with an old naim integrated amplifiers the sound is really good.
it's refined and smooth.

Was this helpful to you?  Yes  /  No

16 of 23 people found this review helpful.
