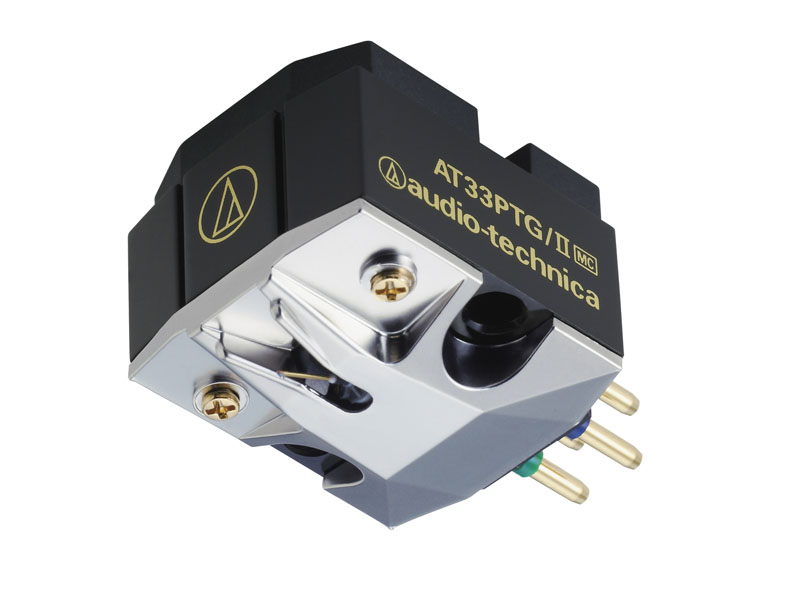

Audio Technica AT33PTG/II - Moving Coil Cartridge

Audio Technica AT-33PTG/II -  MC Cartridge

This model succeeds in thinning down and shortening the cantilever, compared to the AT33PTG.

Advanced nude tapered boron and weight reduction

This model succeeds in thinning down and shortening the cantilever, compared to the AT33PTG. The coil impedance is also refined from 17W to 10W. We realized significant weight reduction of the vibration system and successfully improved the basic performance and sound quality of the cartridge.

High performance and long-life MicroLinear™ stylus

MicroLinear™ (ML) is a specially polished line contact stylus. This has better high range performance than the conical or elliptical stylus due to its small curvature radius and realizes low distortion and expanding high range reproduction even when playing at the inner circumference of records. And the constancy of the line contact shape is one of its main features with an average product lifetime of around 1000 hours.

Specifications:

• Type: Dual Moving Coil
• Frequency Response: 15 to 50,000 Hz
• Channel Separation: 30 dB (1 kHz)
• Channel Balance: 0.5 dB (1 kHz)
• Coil Impedance: 10 W (1 kHz)
• DC Resistance: 10 W
• Force d’Appui: 1.8 à 2.2 g (standard 2.0 g)
• Tracking Force: 1.8 to 2.2 g (standard 2.0g)
• Vertical Tracking Angle: 23 degrees
• Recommended Load Impedance: Min 100 W
• Coil Inductance: 22 mH (1 kHz)
• Static Compliance: 40 x 10 – 6 cm / dyne
• Dynamic Compliance: 10 x 10 – 6 cm / dyne (100 Hz)
• Output Voltage: 0.3 mV (at 1 kHz, 5 cm/sec)
• Stylus Shape: MicroLine™
• Cantilever: Gold-plated solid boron
• Stylus Construction: Nude square shank
• Mount: 1/2” centers
• Dimensions: 16.0 (H) x 16.6 (W) x 26.5 (L) mm
• Weight: 6.9 g
• Accessories: 1 non magnetic screw driver; 2 washers; 2 Nuts; 2 x 13 mm mounting screws; 2 x 19 mm mounting screws; 1 plastic protector; 1 set of PCOCC Lead Wires(AT6101)
