E.A.T Jo No 5 MC Cartridge

E.A.T Jo No 5 MC Cartridge

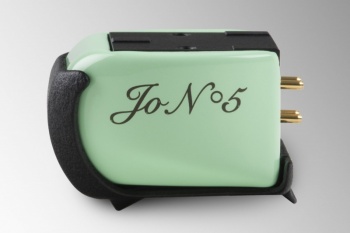

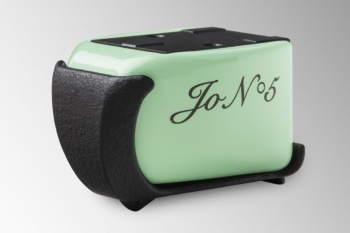

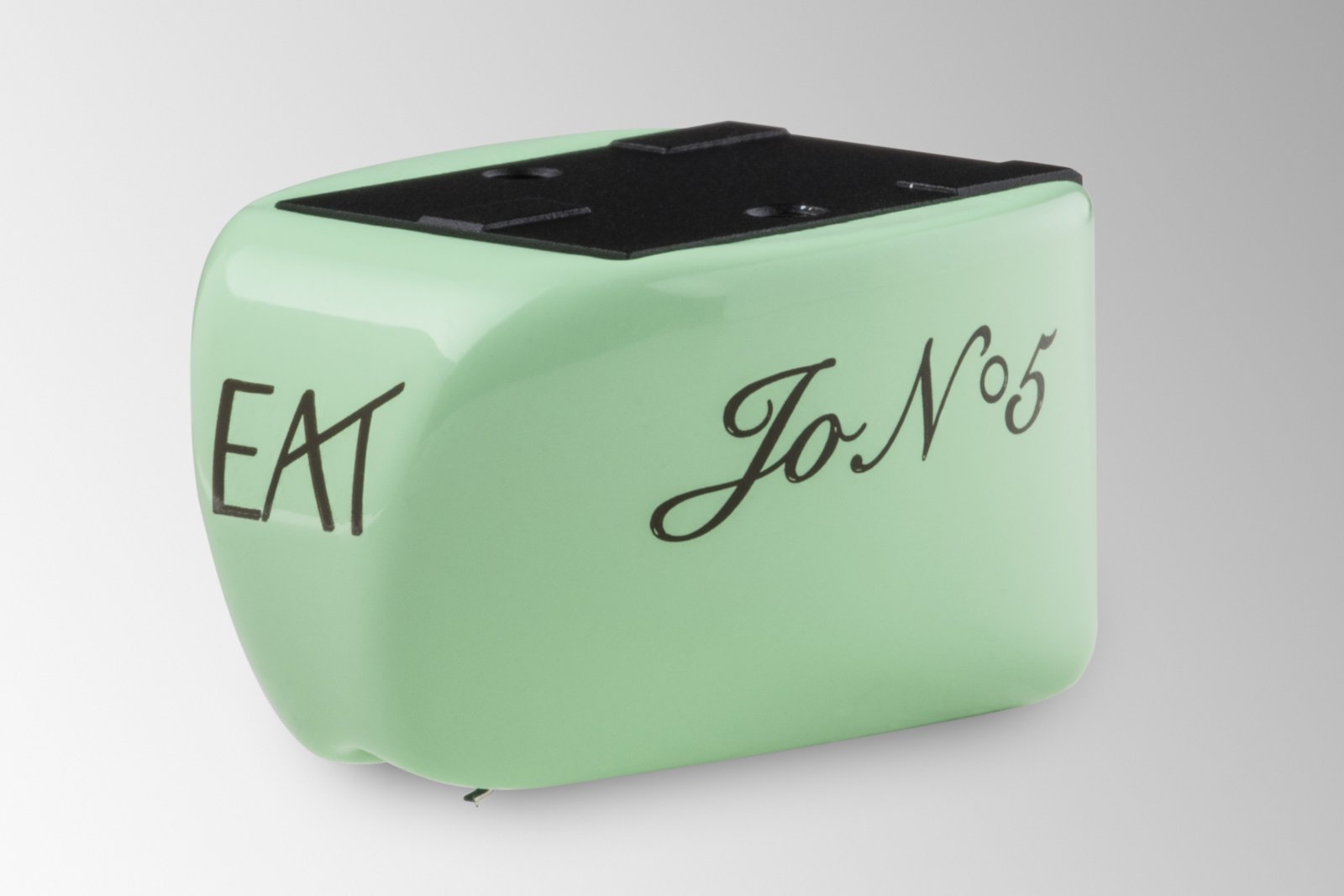

High End E.A.T. cartridge. It comes in unmistakeable mint green colour and features a truthful and immersive sound that is pure E.A.T.

E.A.T. is very proud to announce its second cartridge creation in history, after the highly acclaimed and successful Yosegi MC. Jo No.5 is an elegant masterpiece, both sonically as well as visually.

Cartridge body and stylus guard are produced by an additive manufacturing process which is called Selective Laser Sintering (SLS). This process sinters thin layers of powder with a laser to build the final structure.

Moving Coil Cartridge

    Moving Coil turntable pickup
    Nude Fine Line stylus type!
    Body and stylus guard made of Polyamide
    Selective Laser Sintering manufacturing process
    Elegant looks
    Unmistakeable E.A.T. mint colour!

E.A.T. Jo N°5 Cartridge technical information
Stylus type     Nude Fine Line
Cartridge Weight     15 g
Stylus tip radius     8/40 μm
Frequency response     20 – 26.000 Hz ±1.5dB
Output voltage at 1000 Hz     5cm/sec. 0.33 mV
Channel Separation at 1 kHz     > 25dB
Channel Separation at 15 kHz     > 16dB
Channel Balance at 1kHz     > 1.2 dB
Compliance, dynamic/lateral     12 μm/mN
Tracking force range     2.2-2.5 g (22-25 mN)
Tracking force recommended     2.4 g (24 mN)
Tracking ability at 315 Hz at recommended tracking force    80 μm
Tracking angle     20°
Coil wire material     Pure 4N copper
Recommended load impedance     > 20Ω
Internal impedance, DC resistance     5Ω
