Goldring E3 MM Cartridge
Zoom  Zoom
Goldring E3 MM CartridgeGoldring E3 MM CartridgeGoldring E3 MM Cartridge

Goldring E3 MM Cartridge

  (3 Reviews)
£109.00
£90.83 Exc. VAT |  |

Click here for the outstanding What Hi-fi review on the Goldring E3 cartridge.

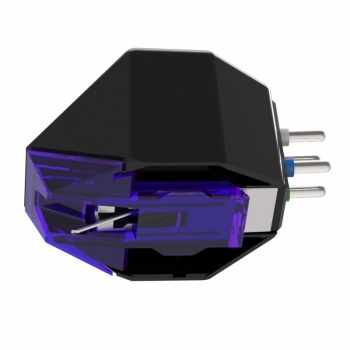

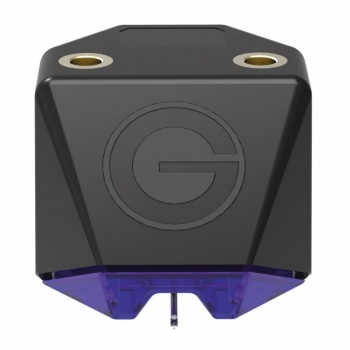

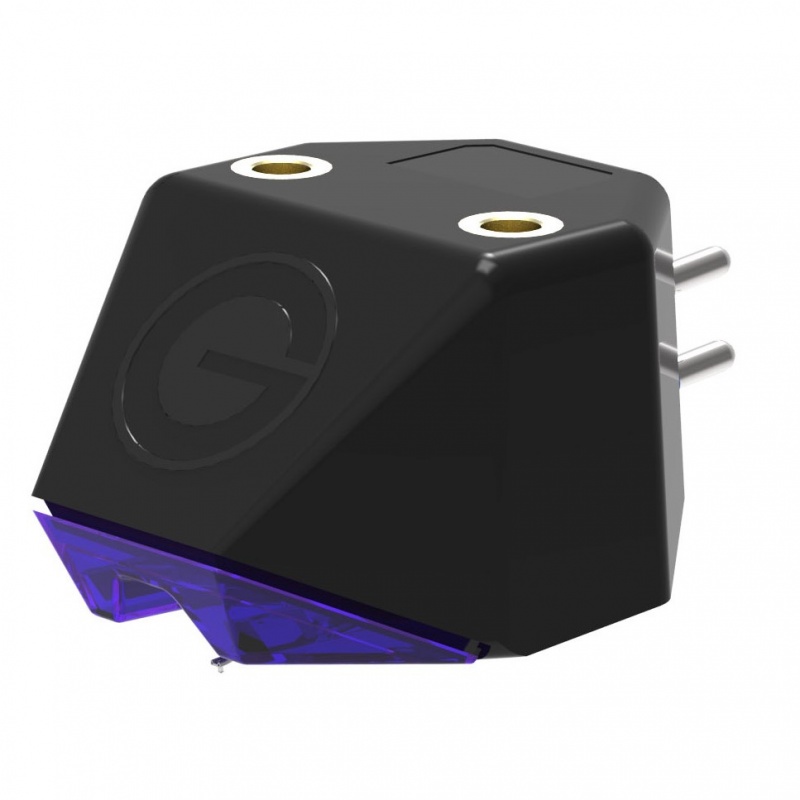

Goldring E3 Cartridge

The Goldring philosophy is to promote the accurate reproduction of the original recording, maintaining the creative nuances, musicality and rhythm the artist intended you to hear. The E Series is designed to capture this experience when used with all medium to high mass tonearms found on the majority of budget to medium priced turntables. This is achieved through the use of our Magnetic Duplex Technology and Goldring Expert Adjustment.

The E3 cartridge, the highest in the range features the same aluminium cantilever as the E2, but benefits from a superior bonded, super-elliptical (0.3 x 0.7 mil) stylus. This gives it superior high frequency groove detail retrieval ability over ordinary elliptical (0.4 x 0.7 mil) or spherical (0.6 mil) styli due to its smaller front to back radius. Its main effect is the reduction of sibilance, especially in high level vocal recordings.







Magnetic Duplex Technology™

All cartridges in the range feature Magnetic Duplex Technology™-a ‘dual magnet’ generator assembly which more accurately traces the record groove providing better stereo separation and a more involving and musical sound stage.

Expert Adjustment

The E-series cartridges have been designed to allow micro-adjustments to be made during production using a special adjustment screw. This means the cartridge can be safely installed in a typical turntable because the angle that the stylus makes with the record surface has been pre-set. The result is an optimised channel balance with zero degrees of horizontal tracking adjustment required. This ensures a consistent and reassuring performance for the life of the product.

Stylus/Cantilever

Featuring spherical styli with a choice of cantilevers, the E1 and E2 models are ideal as an upgrade to any budget, pre-fitted or obsolete cartridge.

The E3 model with its re­fined super elliptical stylus is a worthwhile upgrade for those wishing to squeeze even more information and detail from the record groove.

Specifications

  • Colour Violet
  • Cantilever Aluminium
  • Stylus profile Elliptical
  • Stylus radius 0.3 x 0.7 mil
  • Transducer Characteristics
  • Frequency range 20 Hz - 20 kHz
  • Channel balance 1.5 dB at 1 kHz
  • Channel separation >20 dB at 1 kHz
  • Sensitivity 3.5 mV (1 kHz @ 5 cm/sec)
  • Static compliance 20 mm/N
  • Vertical tracking angle 208
  • Electrical Characteristics
  • Load resistance 47 kOhm
  • Load capacitance 100 - 200 pF
  • Internal inductance 400 mH
  • Internal resistance 410 Ohm
  • Mechanical Characteristics
  • Cartridge mass 6.9 g
  • Fixing centres 12.7 mm (0.5 in)
  • Playing weight 1.5 g - 2.5 g (2.0 g recommended)
Average Rating (3 Reviews):
Write a Review and share your opinions!

Rating:
Excellent
21 May 2023  |

Great price, very nice sounding cartridge and fast shipping to Canada. Recommended!

Was this helpful to you?  Yes  /  No

This review has not been appraised.


Rating:
A very nice sound
21 January 2023  |

I fitted this cartridge to a Goldring Lenco GL75 that I have refurbished. It was easy to fit and set up and sounds very smooth indeed. Channel seperation is very good and it's super quiet between tracks. Very happy with the E3.

Was this helpful to you?  Yes  /  No

1 of 1 people found this review helpful.


Rating:
Goldring E3 Cartridge
06 May 2021  |

Great sounding cartridge.

Easy to fit due to captive threads - no fiddly nuts or washers.

Even looks good.

Was this helpful to you?  Yes  /  No

2 of 4 people found this review helpful.
