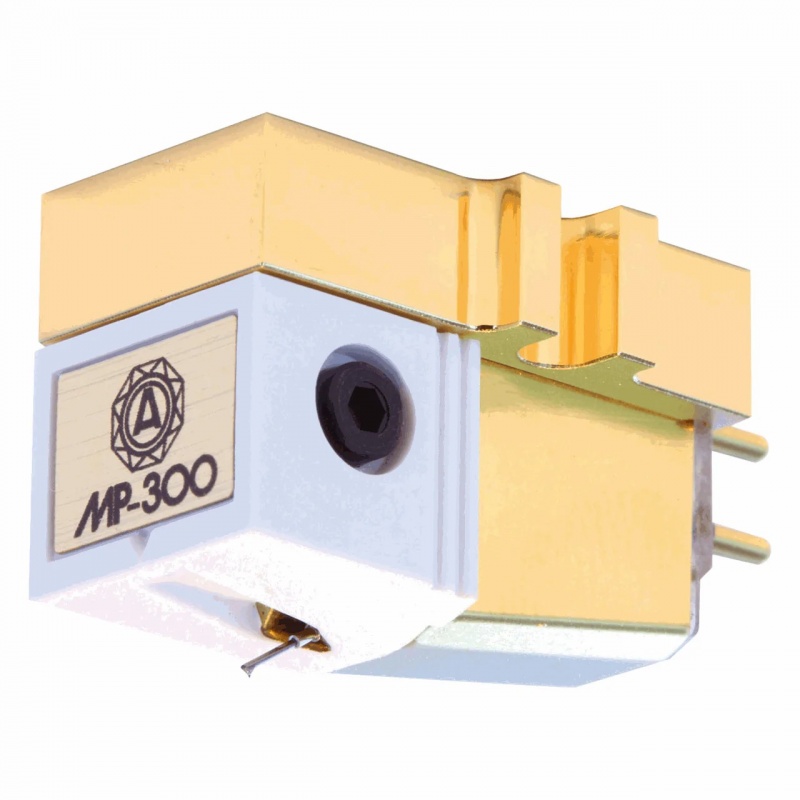

Nagaoka MP300 Cartridge
The Nagaoka MP300 phono cartridge offers sophistication, refinement and high-definition at all audible frequencies thus making it one of our favorite phono cartridges. It is nimble on the grooves and easy on the ears so you keep on wanting to listen more. The Nagaoka MP300 is an advanced technology cartridge that is destined to become a classic out of the box.
Features:
•Exclusive superrigid body for ultralow resonance and superb fidelity
•SuperFine polished elliptical diamond bonded stylus
•Powerful samarium cobalt magnet
•Low-mass, high strength boron cantilever
•Carbon Fibre reinforced plastic shoe
•Anti-ferro magnetic permalloy shield casing
Technical data:
•Principle: MM
•Cantilever: High-strength boron
•Frequency response: 20 - 25,000 Hz
•Channel balance: better than 1.0 dB
•Channel separation: better than 25 dB at 1kHz
•Output voltage: 4 mV (5 cm/sec)
•Tracking force: 1.3 - 1.8 g
•Impedance: 47 000 ohms
•Dynamic compliance: 7.2 x10-6/dyne
•Static compliance: 20 x10-6/dyne
•Weight: 8.0 g
•Mounting: 1/2 inch
•Microsection: super-fine polished, elliptical, bonded diamond
