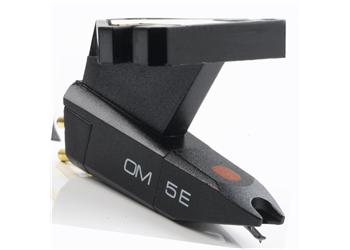

Ortofon OM5E Moving Magnet Cartridge
The OM5E is a magnetic cartridge (MM) with an elliptical shaped stylus that provides balanced and distortion-free playback for general purpose applications.
As found on many of our award-winning introductory turntables such as the hugely popular Pro-Ject Debut, the OM5E is a highly affordable but very competent hi-fi cartridge. Using the same body type as the rest of Ortofon's instantly recognisable OM series, this model is a great accompaniment to your entry-level hi-fi set-up.
Please note, any OM-series replacement stylus will fit in this body, including the Stylus 78.
Specifications:
| Output Voltage (at 1kHz, 5cm/sec): | 4mV |
| Channel Balance at 1kHz: | 2dB |
| Channel Separation at 1kHz: | 22dB |
| Channel Separation at 15kHz: | 15dB |
| Frequency Range (at -3dB): | 20 Hz - 25 kHz |
| Frequency Response 20Hz - 20kHz: | ± 2dB |
| Tracking Ability at 315Hz: | Typically 65μm |
| Compliance, Dynamic, Lateral: | 20μm / mN |
| Stylus Type: | Elliptical |
| Stylus Tip Radius r / R: | 8 / 18μm |
| Tracking Force Range: | 1.5 - 2.0g (16 - 20mN) |
| Recommended Tracking Force: | 1.75g (17.5mN) |
| Tracking Angle: | 20º |
| Internal Impedance / DC Resistance: | 750Ω |
| Internal Inductance: | 450mH |
| Recommended Load Resistance: | 47kΩ |
| Recommended Load Capacitance: | 200 - 600pF |
| Cartridge Colour Body / Stylus: | Black / Black |
| Cartridge Weight: | 5g |
| Replacement Stylus Unit: | Stylus 5E |
