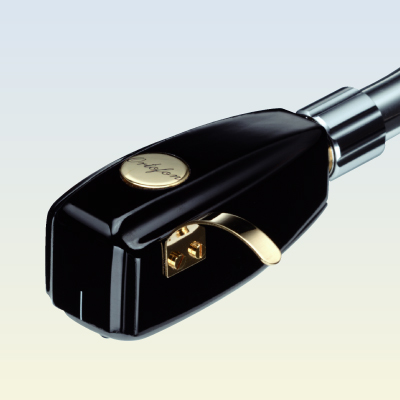

Ortofon Synergy GM Moving Coil Cartridge

Ortofon Synergy GM Moving Coil Cartridge

Please note this cartridge is a special order item.  Please contact us for estimated delivery times.

The SPU Synergy GM modernises the classic SPU design with a number of optimisations designed for optimum compatibility and sonic purity.

This cartridge features a wood-based housing and has a revised generator system which allows for a maximum output of 500µV, relaxing the requirement for high gain transformer or active preamplification systems.

While still making use of a highly polished Nude Elliptical stylus, the stylus tip mass has been reduced significantly, resulting in reduced VTF and higher tracking ability.

TECHNICAL DATA:

Output Voltage At 1000 Hz, 5cm/sec:	500 µV
Channel Balance at 1 kHz:	<1.5dB
Channel Separation at 1 kHz:	> 23 dB
Channel Separation at 15 kHz:	> 15 dB
Frequency Range (At - 3dB):	20 - 30.000Hz
Frequency Response:	20 - 20.000Hz ± 2 dB
Tracking Ability At 315Hz:	70 µm
Compliance, Dynamic, Lateral:	8 µm/mN
Stylus Type:	Nude Elliptical
Stylus Tip Radius:	r/R 8/18 µm
Tracking Force Range:	2,5-3,5 g (25-35 mN)
Recommended Tracking Force:	3,0 g (30 mN)
Tracking Angle:	20°
Internal Impedance, DC Resistance:	2 Ohm
Recommended Load Impedance:	10 - 50 Ohm
Cartridge Body Material:	Grinded Wood
Coilwire Material:	Goldplated Silver
Cartridge Colour:	Shiny Black
Cartridge Weight:	30 g
