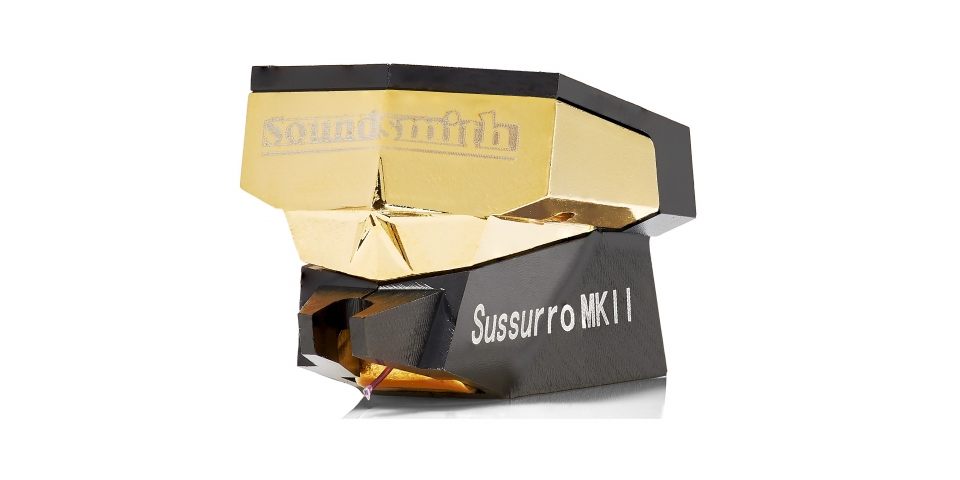

Soundsmith Sussurro MkII Phono Cartridge
The Sussurro ~ critical design decisions, realized. Lowest internal mass. Best damping. Esoteric stylus and cantilever. If you need to stay in constant contact, your cartridge has arrived.
Inspired by Frank Schröder, designed and individually hand made by Peter Ledermann, Soundsmith's Sussurro is a cartridge designed to specifically address the most intricate and critical issues of cartridge design. The new MKII Sussurro has a newly designed moving iron element to reduce moving mass by 70%; extremely low stored energy, the new MKII damping system and an innovative energy distribution path to effectively transfer mechanical energy away from the cantilever through the cartridge body into the tone arm. So what does all this mean??
Low jitter. Jitter? You probably thought that was a term reserved for digital systems. Not so. Stylus jitter is responsible for loss of detail, and making a cartridge sound, well, like a cartridge. The Sussurro stays in constant contact with the record groove. If you are not in constant contact, you can’t hear what has truly been recorded.
Also available in dual-coil mono.
Cartridge Type
Fixed Coil
Stylus Type
O.C. Contact Line
Output
Low
Output Voltage
,4mV
Available As Dual Coil Mono
Yes
Type: | • Fixed Coil / Moving Iron |
Mount: | • Standard ½” |
Stylus: | • Contact Line, Nude, 0.10 mm square |
Radius of Curvature: | • Optimized Contour Contact Line SELECTED |
Cantilever: | • Ruby |
Recommended Tracking Force: | • 1.8 - 2.2 g |
Effective Tip Mass: | • 0.30 mg |
Compliance: | • 10 µm/mN |
Frequence Response: | • 20 - 20,000 Hz ± 1.0 dB |
Channel Separation @ 1000 Hz: | • > 34 dB • N/A (Mono version) |
Channel Separation @ 50 - 15,000 Hz: | • > 25 dB • N/A (Mono version) |
Channel Difference: | • < 0.5 dB • < 1.0 dB (Mono version) |
Output Voltage @ 5cm/sec: | • > 0.40 mV (LOW) |
DC Resistance (DCR): | • 10Ω |
Coil Inductance per channel: | • 2.75 mH |
Suggested Preamp Gain: | • 58 - 64 dB |
Cartridge Weight: | • 12.2 g (ES series) |
Recommended Load Resistance: | • ≥ 470Ω |
Recommended Load Capacitance: | • n/a |
