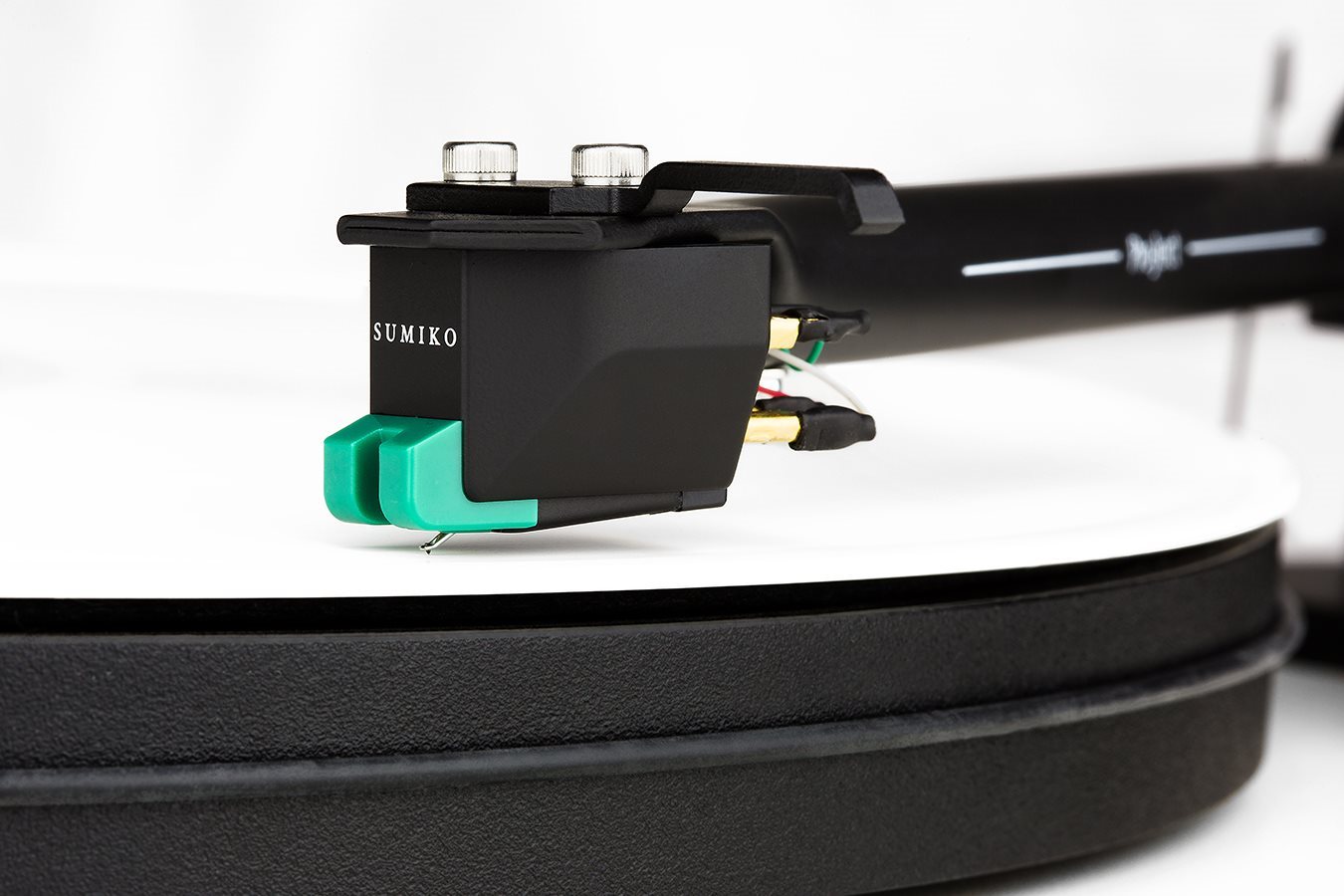

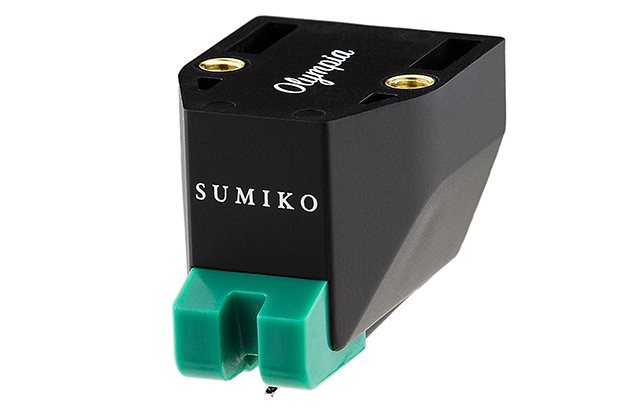

Sumiko Olympia Moving Magnet Cartridge
The Olympia brings another level of acoustic refinement to the mix with an upgraded stylus and cantilever assembly, allowing for more dynamic punch and improved frequency response during playback. Due to its improved tracking capabilities, the Olympia is an excellent return on investment when upgrading from the Rainier cartridge, and can even be upgraded to the capable Moonstone stylus further on down the line.
Reviews
Sumiko Oyster MM cartridges: Shucking the sonics
Download User Manual
TECHNICAL SPECIFICATIONS
Cartridge Type:
Moving Magnet
Stylus:
0.3 x 0.7 micron Elliptical
Cantilever Material:
aluminum
Wire Material:
copper
Internal Impedance:
1,130Ω
Load Impedance:
47kΩ
Frequency Response:
12Hz - 30kHz
Output Voltage:
4mV @ 1kHz
Channel Separation:
30dB @ 1kHz
Channel Balance:
1.5dB @ 1kHz
Compliance:
12x10-6 cm/dyn @ 100Hz
Recommended Load Capacitance:
100pF - 200pF
Vertical Tracking Angle:
20°
Tracking Force:
1.8g - 2.2g
Recommended Force:
2.0g
Cartridge Weight:
6.5g
Replacement Stylus Unit:
RS Olympia
RS Moonstone
RS Rainier
