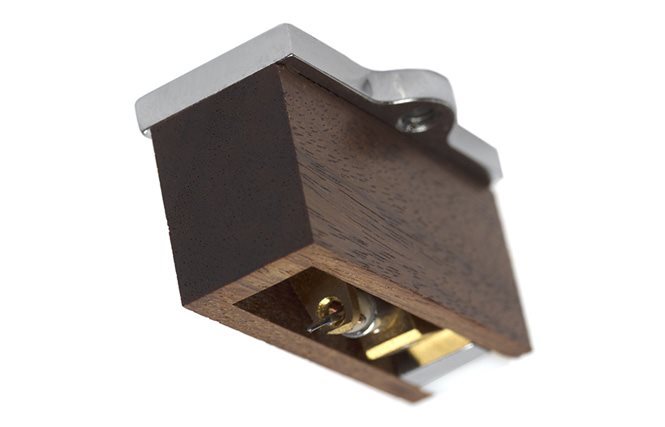

Sumiko Palo Santos Presentation Moving Coil Cartridge
For over thirty-five years, SUMIKO has provided a comprehensive range of phono cartridges to music lovers seeking the finest musical experience at a variety of price points. In fact, the great market success of SUMIKO phono cartridges has hinged on their phenomenal cost-to-performance ratio. The Palo Santos Presentation is no exception. New design requirements incorporating advances in material technology and construction techniques have resulted in a significantly improved product which delivers a highly refined and resolved, yet musically satisfying sound quality previously unavailable at or even near its price.
Improvements grace virtually every facet of the product to differentiate it from its smaller sibling the Pearwood Celebration II. Most significant is the new generator anchoring system, which has substantially improved rigidity and reduced resonance and background noise to previously unheard of levels. From the new handcrafted Palo Santos (Brazilian Rosewood) body, which is shorter in height to add vision when mounting and aligning this cartridge, to the Long Grain Boron cantilever and new Line Contact stylus, which significantly improves resolution, the Palo Santos Presentation truly deserves the title as our flagship offering.
TECHNICAL SPECIFICATIONS
Cartridge Type:
Moving Coil
Suspension:
synthetic rubber
Frequency Response:
10Hz - 40khz (+/- 1.5dB)
Output Voltage/Channel:
0.5mV (3.54cm/s @ 1kHz)
Channel Separation:
>30dB @ 1kHz
Channel Balance:
<0.5dB @ 1kHz
Optimum Tracking Force:
2.0g
Tracking Force Range:
1.8g - 2.2g
Dynamic Compliance:
8x10-6 cm/dyn
Internal Impedance:
12Ω
Load Impedance:
100Ω - 1kΩ
Capacitance Range:
100pF - 300pF
Cantilever:
long-grain boron
Stylus:
75 x 4 micron ultra low-mass Line-Contact
Output Terminals:
unique gold-plated tapered brass pins
Cartridge Weight:
8.3g
Mounting System:
standard 0.5” hole spacing (M2.5 threaded)
Supplied Hardware:
2x M2.5 (6mm) stainless steel mounting screws
2x M2.5 (8mm) stainless steel mounting screws
4x M2.5 stainless steel washers,
1x 2.0mm allen wrench
