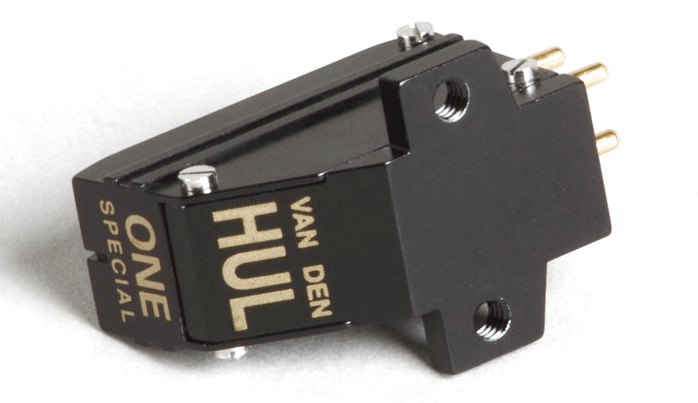

Van den Hul MC-One Special MC Moving Coil Cartridge
Zoom  Zoom

Van den Hul MC-One Special MC Moving Coil Cartridge

£1,725.00
£1,437.50 Exc. VAT |  |



Van den Hul MC-One Special MC Moving Coil Cartridge

A custom handbuilt moving coil cartridge; Special selected version of the MC - 10 Special with 0.65 mV/channel.

The designation “Special” in this cartridge’s name indicates important improvements over its previous version.

The cartridge is equipped with a thicker frontpole and an extra small magnet, both further enhancing its resolution capabilities and output voltage.

Specifications:

stylus shape VDH - I
stylus radii 3 x 85 Micron
frequency range 5 - 50.000 Hz
tracking force 13.5 - 15.0 mN
static compliance 28 Micron/mN
tracking ability 70 - 80 Micron
output voltage

0.65 mV RMS

channel unbalance < 0.5 dB
channel separation

> 35 / > 30 dB

stylus tip mass 0.35 Milligram
system weight 8.2 Gram
vertical tracking angle 22 Degrees
load impedance

200 Ohm

eff tone arm mass 8 - 12 Gram
moving coil resistance

9 Ohm +/- 10%
