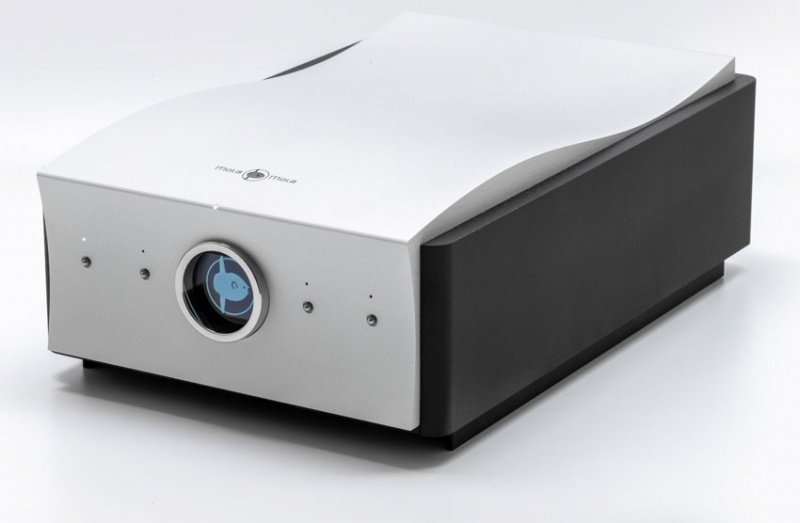

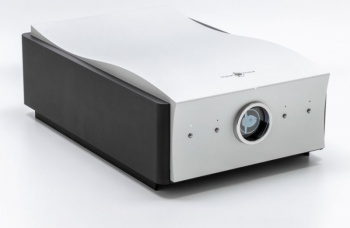

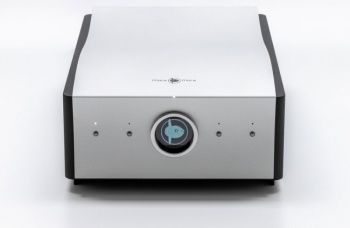

Mola Mola Tambaqui DAC
Zoom  Zoom
Mola Mola Tambaqui DACMola Mola Tambaqui DACMola Mola Tambaqui DACMola Mola Tambaqui DAC

Mola Mola Tambaqui DAC

  (2 Reviews)

Please note we can only supply Mola Mola products to the UK

£9,999.00
£8,332.50 Exc. VAT |  |

Mola Mola Tambaqui DAC

'Whether used as a headphone amp, as a preamp or just as a DAC, fed from a Mac mini computer or via Ethernet using Roon, the Mola Mola DAC was never anything short of a total cracker. Simply, the sheer musical flow and vitality were spellbinding, as was the impressive of a total lack of artifice: there’s nothing mechanical or ‘technical’ going on here, but rather just great performances pouring from the speakers, drawing the listener in and making the temptation to listen more all but irresistible.'

ANDREW EVERARD, HIFI CRITIC 2020

DIGITAL THAT’S AS GOOD AS ANALOGUE

Responding to popular demand, Mola Mola launched the famous discrete DAC from the Makua as a separate unit.



Mola Mola’s Tambaqui DAC is the perfect upgrade for owners of complete high-end systems who want to retain the characteristic sound of their existing preamplifier whilst lifting their digital sources to another level. The converter is a two board stack. On the first board, all incoming digital audio is upsampled to 3.125MHz/32 bits and converted to noise shaped PWM. On the other board are two mono DACs, in which a discrete 32- stage FIR DAC and a single-stage 4th order filtering I/V converter, convert the PWM into analogue with a breathtaking 130dB SNR. This is near the theoretical limit for 24-bit files and far beyond that of even quad-speed DSD. Uniquely, distortion remains below the noise floor even for full scale signals.

With the addition of a lossless digital volume control and headphone outputs, it is also the ideal control hub of a minimalist audio system for music lovers who have moved on to a digital sources only system. This DAC, combined with a pair of Mola Mola Kaluga monoblocks constitutes the finest digital replay chain available, irrespective of price.

OPERATING PRINCIPLE

PWM DAC with 32-stage discrete analogue FIR output stage. Avoids “sigma delta” tones and “R2R” glitch and low-level linearity errors.
Asynchronous upsampling to 3.125MHz/32 bit. 7-th order noise shaper clearing 80kHz band. Each input rate has an optimized upsampling filter chain.

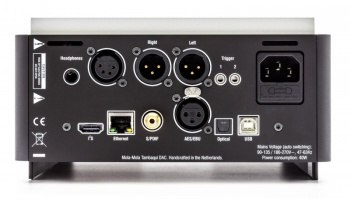

I/O

Optical (Toslink)
S/PDIF (Cinch)
AES/EBU (XLR)
USB type B
Ethernet (Roon Ready)
Bluetooth (A2DP, APTX)
I²S over HDMI
Balanced output (XLR)
Headphone output (6.3mm Jack, Balanced XLR 4pin)
2 programmable trigger outputs (3.5mm Jack)



SUPPORTED FORMATS

PCM up to 384kHz/32 bits (>192kHz and >24 bits via USB and Roon only)
DoP and Native DSD up to quad speed (USB and Roon only)



PERFORMANCE

Full-Scale Output Level (XLR): 18dBu
Full-Scale Output Level (headphone): 18dBu
Signal to Noise Ratio: 130dB
THD, IMD: not measurable (estimated -140dB)
Bandwidth: Up to 80kHz (apodizing response)
Integrated jitter: <1ps from 10Hz upwards, <300fs from 1kHz upwards
Jitter rejection: >80dB at 1Hz after 20 seconds of loc



CONTROL

4 programmable presets
(Premium) Remote Control (available separately)
Mola Mola Remote app



DIMENSIONS AND WEIGHT

200mm (W) x 110mm (H) x 320mm (D)
5.2kg


Average Rating (2 Reviews):
Write a Review and share your opinions!

Rating:
Mola Mola Tambaqui - Fabulous DAC
18 January 2024  |

This is an incredible sounding DAC. It presents a wide/deep soundstage with an uncanny ability to pick out instruments deep in the soundstage. Drums and percussion are well handled and have the most realistic sound I've had in my system so far.

The DAC is neutral sounding and will show you exactly what is on the recording.

The Mola Mola app is easy to use and allows you to configure the inputs and outputs (0.8/2/6 volts). I prefer the 6V setting.

Thoroughly recommended!

Was this helpful to you?  Yes  /  No

1 of 1 people found this review helpful.


Rating:
Mola Mola Tambaqui
06 June 2022  |

Best value for money Dac I have ever had. Can compete with other more expensive Dacs. Sound quality is super and is life like. Sound stage is huge and is very musical. Highly recommended.

Was this helpful to you?  Yes  /  No

3 of 6 people found this review helpful.
