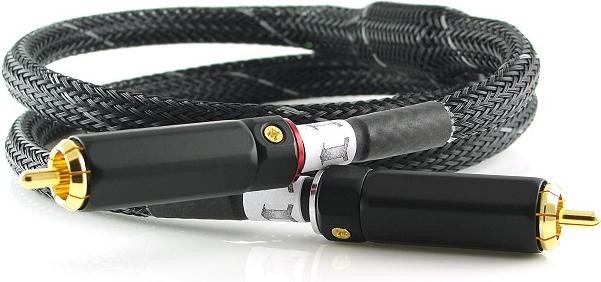

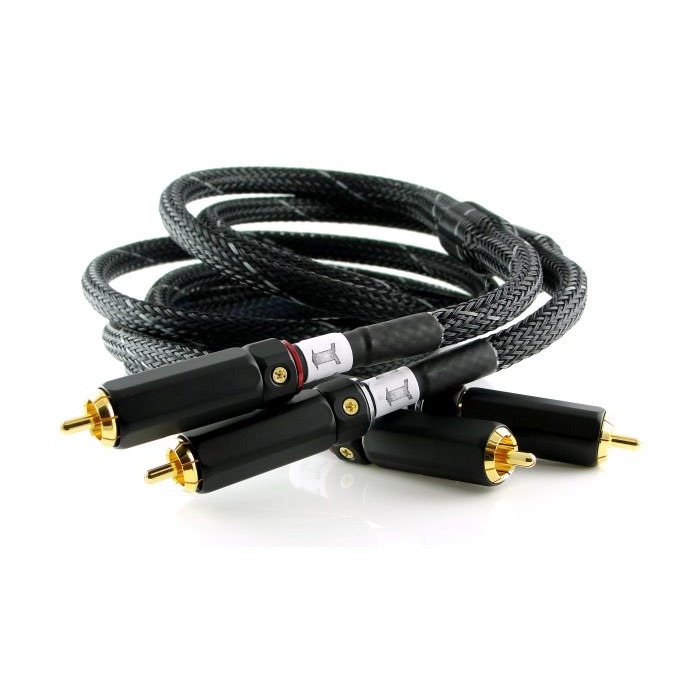

Graham Slee Lautus SPDIF Digital Interconnect
Graham Slee Lautus RCA digital cable is designed to deliver an excellent digital connection, thanks to strategically placed Ferrites to reduce the effects of RF interference and deliver a much better connection. The 75 Ohm characteristic impedance of the Lautus makes it highly desirable as a digital connection cable.
It's the ideal S/PDIF interconnect because sending and receiving circuits use 75 Ohm impedances. It's also suitable for 5MHz video over short domestic distances.
The Lautus Digital interconnect can be supplied with high quality nickel plated BNC adaptors should the equipment require them. The gold plating on the Lautus ensures a corrosion-free connection even with dissimilar metals and the Lautus phono plug clamps make a tight fit with the BNC adaptors.
Tech Specs
- Coax stock cable diameter: 6.5mm
- Sheathed diameter: 10mm
- Conductor: 1mm d solid soft annealed copper
- DC resistance: 0.026 Ohms per metre
- Annealed braid over 100% copper foil wrap
- DC resistance: 0.015 Ohms per metre
- Jacket: PVC
- Dielectric: 5 cell semi air-spaced
- Dielectric constant: 1.49
- Velocity ratio: 0.82 (82%)
- Capacitance: 55pf per metre
- Characteristic impedance: 75 Ohms
- Shielding efficiency: Better than 65dB
- Lay-up "stereo" flexible PVC with welded ends
- Lay-up "dual-mono": Separated stereo pair
- Min safe bend diameter: 150mm (6 in)
- Phono: Locking (RCA) with gold plated plugs
