Nordost Valhalla 2 Digital Interconnect

Nordost Valhalla 2 Reference Digital Interconnect

Digital signals are subject to extremely precise transmission and termination standards. Ensuring that your digital cables meet those standards is vital to achieving the best possible performance from high-resolution digital systems. Valhalla 2 Digital Interconnects employs our advanced Dual Mono-Filament construction to mechanically dampen its silver-plated, solid copper conductors, while also reducing dielectric contact by over 85%.

In order to achieve exact impedance matching, Nordost’s Valhalla 2 Digital leads offer a double layer of silver shielding. The 75 Ohm cable is terminated with gold-plated HOLO:PLUG® BNC connectors for correct impedance matching and is supplied with gold-plated RCA adapters, while the 110 Ohm cable uses gold-plated HOLO:PLUG® XLR connectors. Ensuring that they have the minimum effect on the digital signal, our HOLO:PLUG® connectors are designed to enhance sonic properties and maintain constant impedance throughout each cable. Like all Nordost cables, Valhalla 2 Digital Interconnects are made in the USA.

75 OHM SPECIFICATIONS

• Insulation: High purity class 1.1 extruded Fluorinated Ethylene Propylene (FEP)
• Construction: Mechanically tuned spacing, length and Dual Mono-Filament, Co-axial design
• Conductors: 1 x 16 AWG
• Material: Silver-plated 99.999999% solid core OFC
• Capacitance: 15.3pF/ft
• Impedance: 75 Ohm
• Overall Shield Coverage: 98% Total coverage with 2 layers of silver-plated shielding
• Velocity of Propagation: 89%

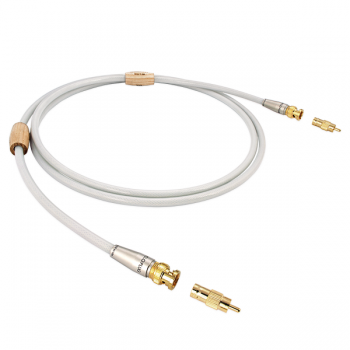

• Termination:  Gold-plated true 75 Ohm HOLO:PLUG® BNC. Gold-plated BNC to RCA adapter included.

110 OHM SPECIFICATIONS

• Insulation: High purity class 1.1 extruded Fluorinated Ethylene Propylene (FEP)
• Construction: Mechanically tuned spacing, length and Dual Mono-Filament, Twin-axial design
• Conductors: 2 x 18 AWG
• Material: Silver-plated 99.999999% solid core OFC
• Capacitance: 10.5pF/ft
• Impedance: 110 Ohm
• Overall Shield Coverage: 98% Total coverage with 2 layers of silver-plated shielding
• Velocity of Propagation: 89%

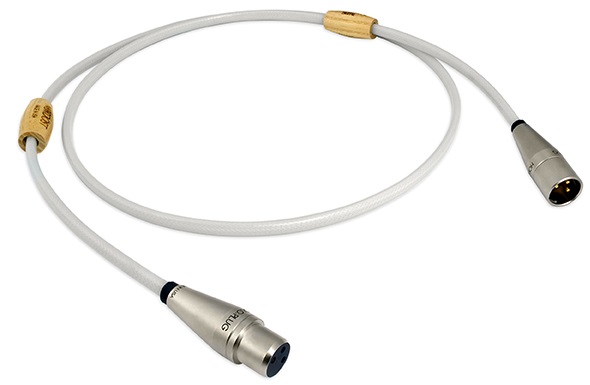

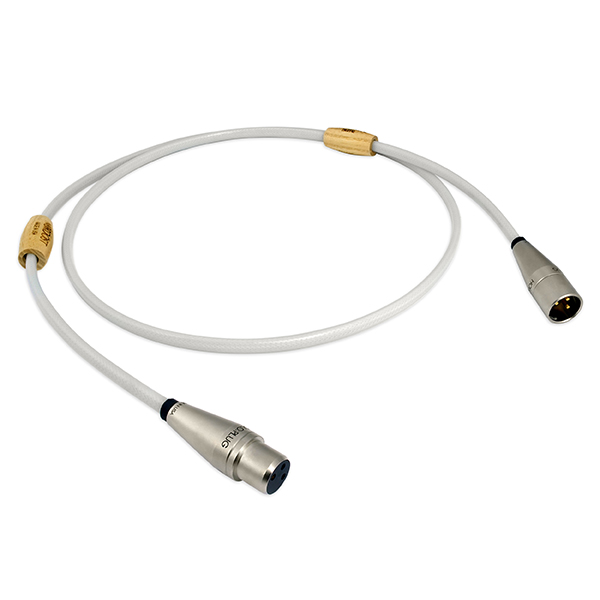

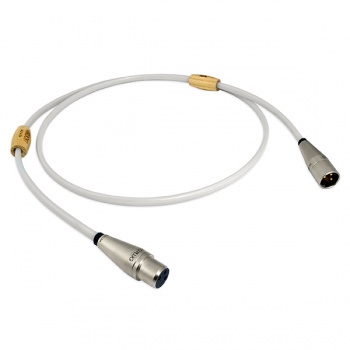

• Termination: Gold-plated true 110 Ohm HOLO:PLUG® XLR
