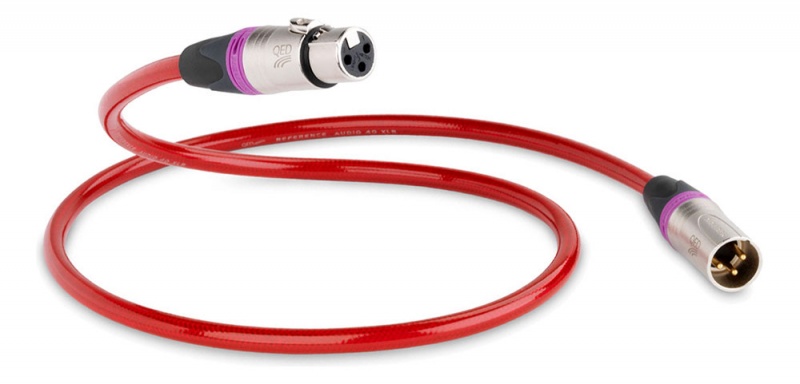

QED Reference XLR 40 Digital Interconnect
Available in 0.6m , 1.0m and 3.0m
The QED Reference XLR 40 cables build on the award winning Audio 40 range of products. XLR 40 was designed primarily for low capacitance as this has been identified by QED as a major factor which leads to a high fidelity experience. Further steps have been taken to eliminate minute timing errors in the cable by the use of a special floating Zn/Mn ferrite jacket alongside use of QEDs unique Tri-Conductor technology reducing signal to ground capacitance to vanishingly low levels.
QED have joined forces with world renowned professional audio connector supplier Neutrik (UK) to bring you an innovative new XLR balanced interconnect cable with legendary build quality and reliability. Neutrik XX-14 Nickel Series XLR gold plated connectors are provided as standard with Reference XLR 40 cables. These connectors are rugged and reliable and are the connector of choice for audio professionals around the world.
SPECIFICATIONS
99.999% Silver Plated Oxygen Free Copper 24 AWG Tri-Conductors with foamed PE dielectric
Unique floating Zn/Mn impregnated ferrite jacket
99.999% OFC outer shield braid for 100% electrostatic screening
High performance gold plated Neutrik XLR connectors with low contact resistance and high signal integrity
Ultra Low Jitter
Conductor Section 0.25 mm2
Characteristic Impedance 110 Ω nominal
Dissipation Factor@10kHz 0.0001
Nominal Outside Diameter 8 mm
QED Lifetime Guarantee
