AVID Isorak 4 Leg Equipment Support
Please note:
- Price is per single shelf, please specify from the drop down options which heights and colour variations you require
- This listing is for the 4 leg version, please see a separate listing for the 3 leg version
-
Stated price is not for a full rack, it is for each individual tier. You will need 1 base shelf, however many shelves/tiers you require. For example if you require a 4 shelf/tier stand please select quantity 1 base shelf and then quantity 3 of your desired heights

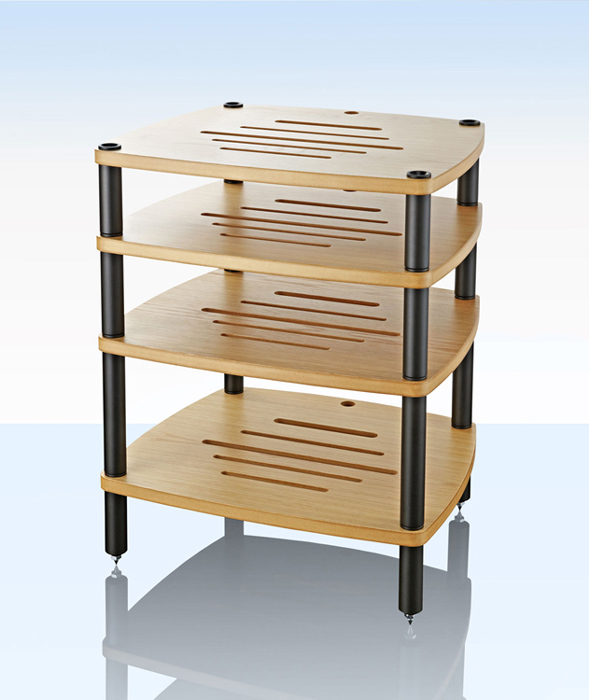

The AVID Isorak offers a high quality solution for audio equipment support allowing the heights and number of shelves to be tailored to suit individual installations. In building a hi-fi system that is capable of extracting the optimum performance from each component, the importance of the support system cannot be overstated.
Each shelf is precision machined, in either 30mm MDF or 26mm Oak veneered MDF - profiled to dissipate vibrations and prevent standing waves from forming. The usual configuration for stability is always three legs, however the four leg system allows easy access to certain types of equipment where the rear third leg is an obstruction, but still remaining stable as each spun 40mm solid aluminium leg is machined to a 0.1mm tolerance. Each solid aluminium leg is isolated at each termination point using AVID's unique ball contact system.
Purchased individually, each shelf simply stacks onto each other above the base section.
Choose your Isorak colour, choose your leg height and choose your leg colour, assemble and stack, designing to your own requirements.
Five different lengths of leg are available, allowing a support system to be constructed to match virtually any combination of hi-fi components.
Features:
-
Thick solid shelves with resonance diffusion slots
-
Solid aluminium support poles
-
Steel bearing separation points
-
Incorporated cable management
-
Custom leg lengths available
-
Flat pack design
Specifications:
-
Width: 650.0mm
-
Depth: 560.0mm
-
Pole Heights: 135mm, 165mm, 205mm, 245mm, 305mm
-
Bottom Pole Height: 135.0mm
-
Maximum Tested Load: 100 Kg (220lb)
