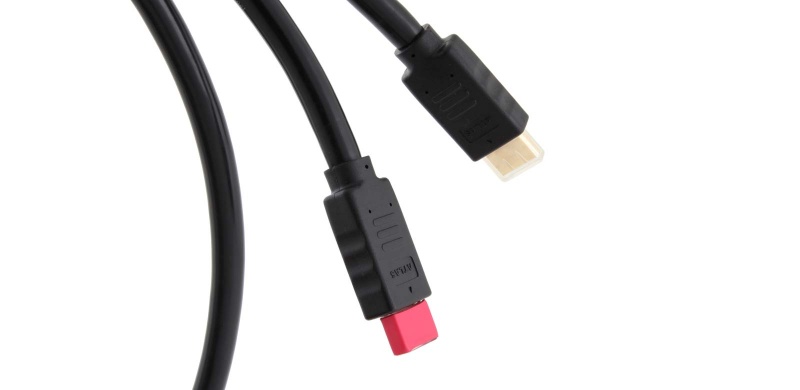

Atlas Hyper HDMI 4K Interconnect
Passive HDMI cables have a natural limitation, that being the attenuation characteristics of the base cable. Once the optimum length has been exceeded an exponential increase in data errors occur. Typically we consider around 8-10m is the maximum length for a passive HDMI cable, under the less-demanding HDMI 1.4a specification (lower resolution & bandwidth than the newer HDMI 2.0 requirements).
To meet the more stringent performance requirements (ultra high resolution & wide bandwidth) of HDMI 2.0, Atlas has implemented ‘Active’ HDMI technology. Sophisticated electronics are built into the ‘Display’ end of the cable, which effectively extends the operational performance of longer cables. This adaptive technology is used effectively to keep the cable’s outside diameter to a reasonable size whilst extending the length of the cable.
The ‘Active’ Hyper 4K HDMI is available in 10, 12 and 15m lengths with no loss of performance. Coupled with our installation grade precision connectors, Hyper is superbly suited to ‘high-end’ video installations.
As you’d expect given our passion for audio, the Hyper 4k HDMI is designed to give optimum sound quality. Atlas’ expertise in world-class digital audio interconnects means ‘jitter’ (signal-degrading digital ‘noise’) is kept to extremely low levels.
Specification
Construction 10 conductors, 24 awg multicore cable: (Active 10m, 12m, 15m)
Material OFC (data), OFC (Power)
Dielectric PEF (Data), HDPE (Power)
Screen OFC, 90%
Shielding Triple 100% Cu Mylar™
Outside Diameter 9.5mm PVC (CL3/FT4)
