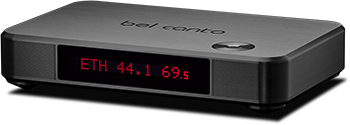

Bel Canto ACI600 Integrated Amplifier

The Black Integrated refines the elements of the three chassis Black system into one beautifully constructed component. The ACI 600, with its modern look and feel, is the ideal all-in-one solution for the most critical listener. The Black Integrated reveals the subtlest intonations of voice and instrument together with the power and emotion recorded in the music you enjoy.

ACI 600

The ACI 600’s advanced integrated platform expands the way you live with your audio. The ACI 600 suite of options focuses on the core technologies of our high dynamic range DAC, precision volume and system control, ethernet streaming, programmable phono stage and headphone technologies, powered by ultra-low noise amplification for the ultimate all-in-one high performance solution.

The ACI 600 is designed to manage the complexity of all audio source and control functions with ease and efficiency. The volume and system functions are controlled by manually pressing and rotating the control dial on the top of the unit, or by using the IR custom remote control, or with your iPhone/iPad and the custom iOS app. The fully programmable display is easy to read and illuminates system status indicating source and volume. It also displays all programming functions and serves as the streaming display for meta data.

ACI 600 Technology

Our new AMiP (Asynchronous Multi-Input Processor) Platform manages all the inputs of the Black Integrated amplifier. It is a powerful custom asynchronous core with 6 processor units that consist of: 2-32 bit XMOS general purpose processors, 2-32 bit ARM processors units as well as 2-dedicated audio processors. These together handle the ethernet interface that works with Roon Ready and DLNA servers, USB-A host streaming input, a USB2-24/384 input, legacy digital SPDIF/AES/TOS inputs and analog line level and phono inputs. The AMiP platform handles DSD and MQA processes and our custom Time Optimized Filter with integer up-sampling. There is a high-performance MM/MC programmable phono stage and 2-line level inputs that feed a high dynamic range 24/192 ADC into the processor core. Dual free running Ultra-Low Phase Noise Master Clocks direct all the digital processing and strip any incoming jitter from external digital input streams. There is a 32-bit ARM core processor that handles the user interface and coordination of the AMiP Platform.

SPECIFICATIONS

Inputs:

24bit Data to 192ks/s: AES, SPDIF, TOSLINK
24bit Data to 192ks/s and DSD64: 10/100 Ethernet
24bits to 384ks/s and DSD64/128 (DoP): USB2 Audio

Low Level Outputs:

Line Level Analog: 4.5Vrms with Bass Management
St Fiber Digital Outputs: 2- MPS1 Compatible
Headphone: 4.5Vrms maximum, 32ohm minimum load

MM/MC Input:

MM: 2.5mV to 5mV; 47K ohms
MC: 0.25mV to 0.5mV; 50, 100, 500, 1k
RIAA Accuracy: +/- 0.25dB, 50Hz-15kHz
THD+N: <0.01% 1kHz A-Weighted
SNR: >70dB A-Weighted

Line Inputs:

Maximum Input: 2.2 Vrms RCA
Input Impedance: 10k ohms RCA
THD+N: 0.003%, 1kHz
Dynamic Range: 110dB, A-weighted 20Hz-20kHz

Loudspeaker Output:

Maximum Power Output: 600W-4ohm, 300W-8ohm
Minimum Load: 2 ohms
Peak Output Current: 27 amperes
Frequency Response: -3 dB 0.5Hz-50kHz, all loads
Output connections: 2-pair WBT Nextgen binding posts

Performance:

Dynamic Range: 127dB A-weighted
THD+N: <0.001% 1W, 1kHz, 4 ohms
IMD (CCIF): <0.001%, 1W, 18.5:19.5kHz 1:1, 4 ohms
