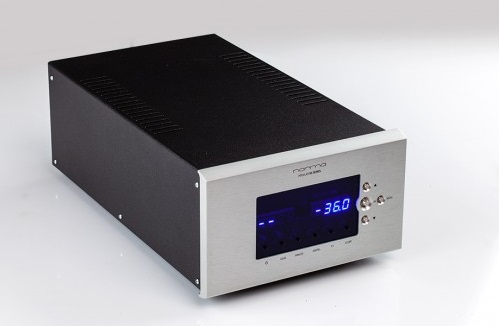

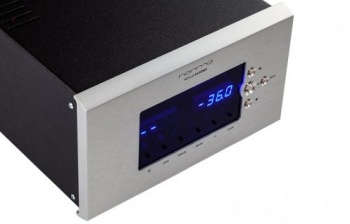

HS-IPA1 Integrated Technical Features:

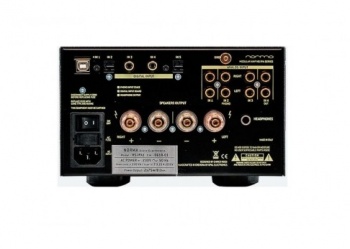

⦁ 4 x RCA analogue inputs.
⦁ User configurable output connections (subwoofer, tape, etc.)
⦁ Extreme low noise, high resolution and high speed
⦁ Wide band ( >1 MHz ) schematic topology
⦁ 2 x 24 A continuous output current (100 A peak per channel)
⦁ 2 x 75 W RMS / 8 Ohm - 150 W RMS / 4 Ohm
⦁ High filtering capacity with numerous low impedance capacitors
⦁ Regulated power supply for both Gain and Driver stages
⦁ Toroidal transformer specially designed for audio applications
⦁ Multi function display
⦁ Remote control of all functions
HS-IPA1 (Phono Option) Technical Features:
⦁ High quality, low noise phono section
⦁ Compatible with MM/MC cartridges
⦁ User selectable Gain and Input Impedance values
HS-IPA1 (Digital Option) Technical Features:
⦁ 5 x digital inputs (USB, 2 x SPDIF RCA, 2 x SPDIF OPTICAL)
⦁ USB input and SPDIF full bandwidth, up to 24 Bit / 192 KHz
⦁ High Resolution Digital > Analogue converter, DSD compatible
HS-IPA1 (Headphone Option):
⦁ 1/4" (6.3 mm) Jack connection
⦁ User selectable output sensitivity
⦁ High current, high voltage output
⦁ Drives dynamic and orthodynamic headphones (16-600 Ohm)
