WHY LUMIN AMP

Featuring everything you need and nothing you don't, LUMIN Amp focuses purely on performance. If your LUMIN streamer sounded like a breath of fresh air, prepare to take it to the next level.

Matched styling.
Unmatched performance.

Multi-Stage transistors amplifier
Dual Mono power supply and amplifier design
Fully discrete voltage and current gain stages
DC-coupled signal path
Class AB operation
High input impedence and sensitivty for direct DAC drive
Intelligent bias and thermal management
Stereo / Dual Mono / Bridged operation
CNC single billet aluminium construction
600VA custom toroidal transformer
Built-in overload, overheat and DC protection

True Dual Mono design throughout

Keeping the design Dual Mono all the way from the power supply delivers full power simultaneously from both channels and keeps crosstalk to an absolute minumum.

In LUMIN Amp, each channel is a mirror image of the other.

Discrete Transistors

Fully discrete voltage and current gain operating in class AB to deliver the finest details with the lowest distortion from your music.

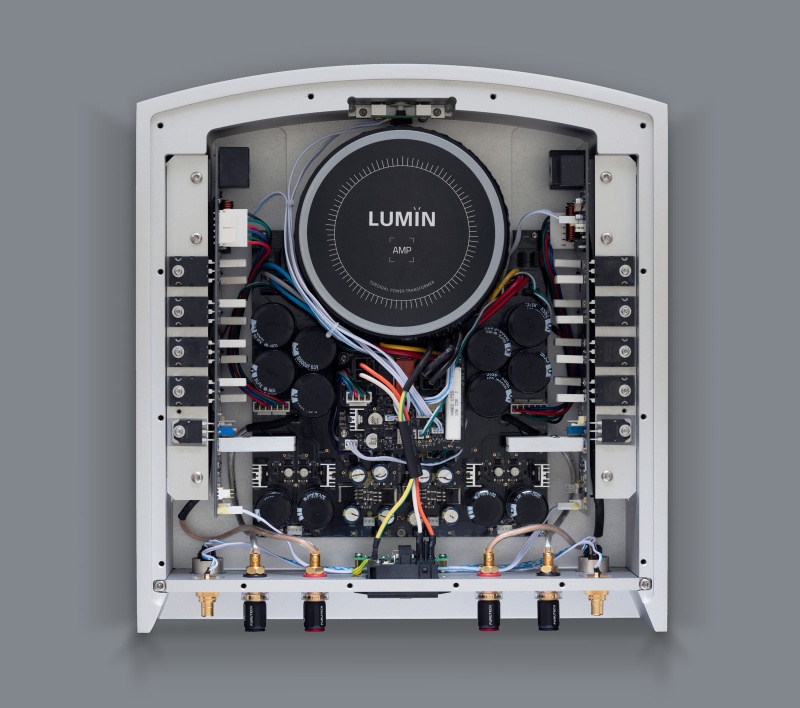

Custom low-noise toroidal power supply

LUMIN Amp features a unique completely separate dual mono power supply design.

The ultra low noise design features advanced voltage regulation circuitry.

SPECIFICATION

LUMIN AMP SPECIFICATION

OPERATING MODE: (selectable)
- Stereo, Dual Mono or Bridged mode
INPUT: (selectable)

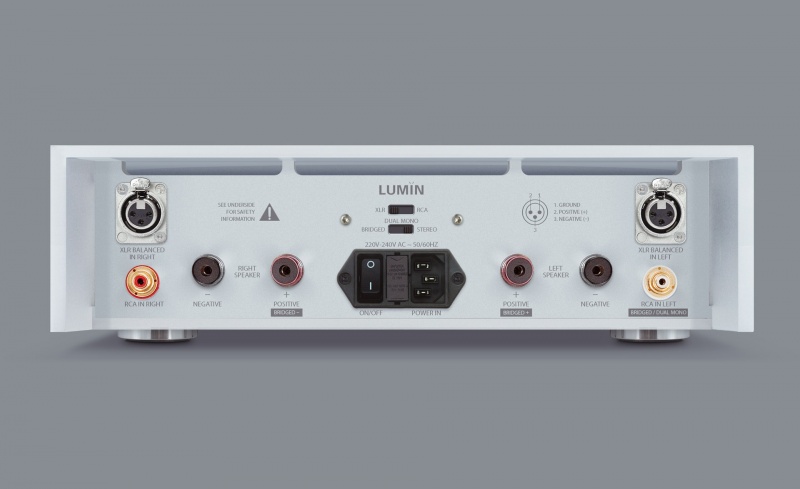

- 1 x XLR pair (pin 2 hot), 1 x RCA pair
POWER:
- 160W per channel into 8Ω
- 320W per channel into 4Ω
- 640W into 8Ω (Bridged)
POWER SUPPLY:
- Available in 220–240V AC and 110–120V AC versions ~ 50/60Hz
POWER CONSUMPTION:
- Standby <0.5W
- Idle 40W
- Max 700W

FREQUENCY RESPONSE:
- 20hz - 40000hz ± 0.1db
SIGNAL TO NOISE RATIO:
- 103db, unweighted
INPUT IMPEDANCE:
- 200kΩ Balanced (XLR)
- 100kΩ Unbalanced (RCA)
OUTPUT IMPEDANCE:
- 0.1Ω
INPUT SENSITIVITY:
- 1.16Vrms
GAIN:
- +26dB (Stereo, Dual Mono)
- +32dB (Bridged)

PROTECTION:
- DC, overload and overheating protection
FINISHES:

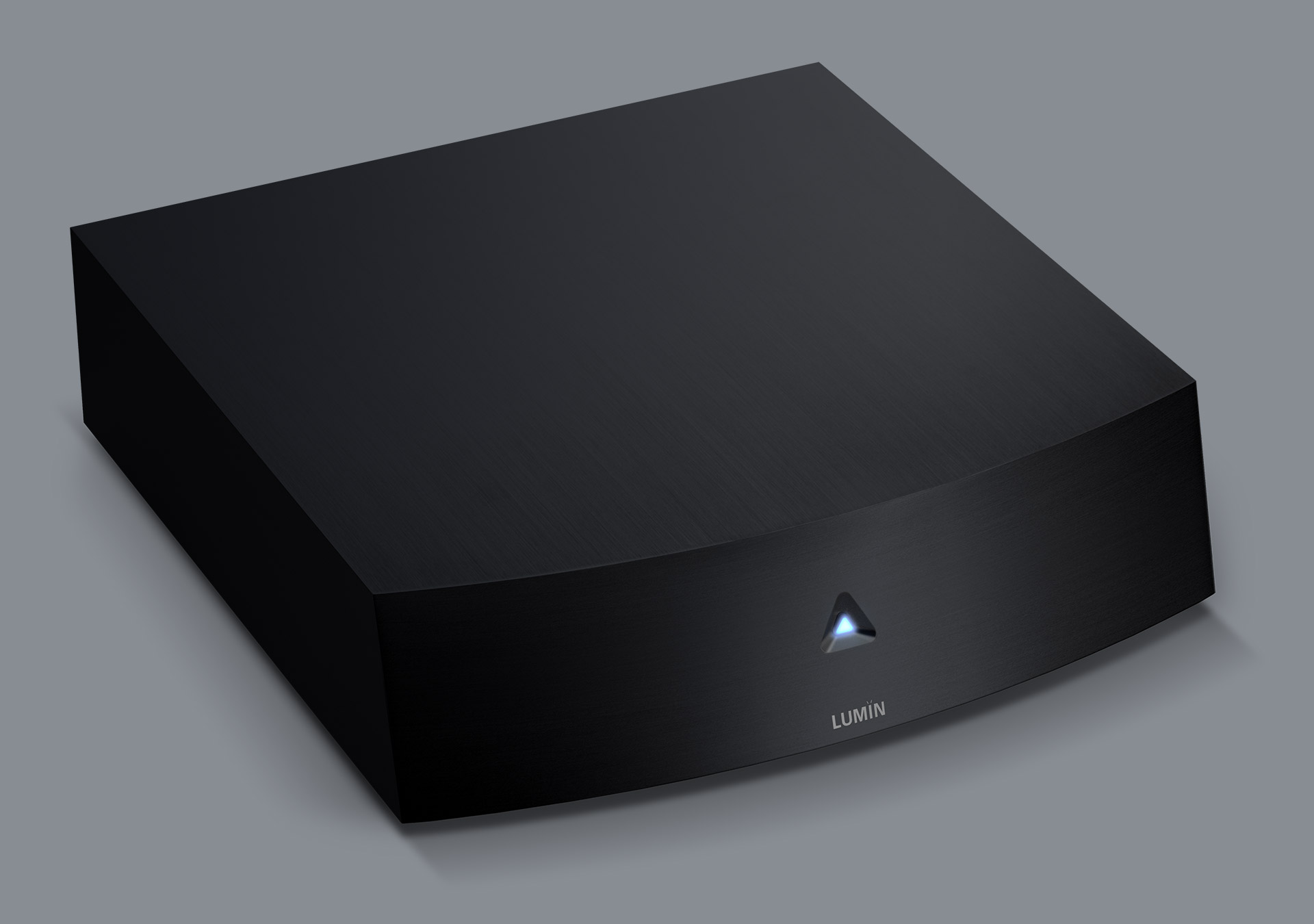

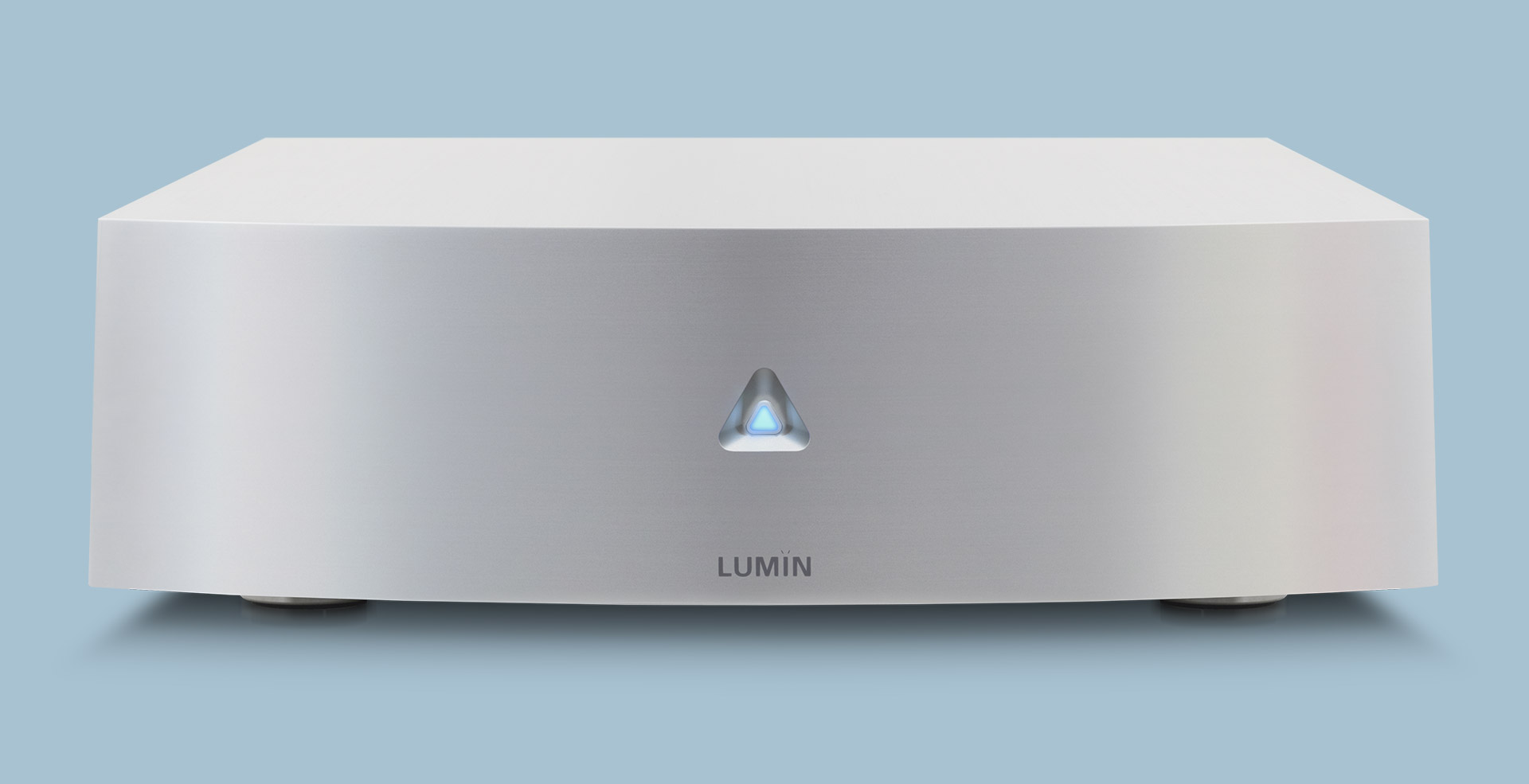

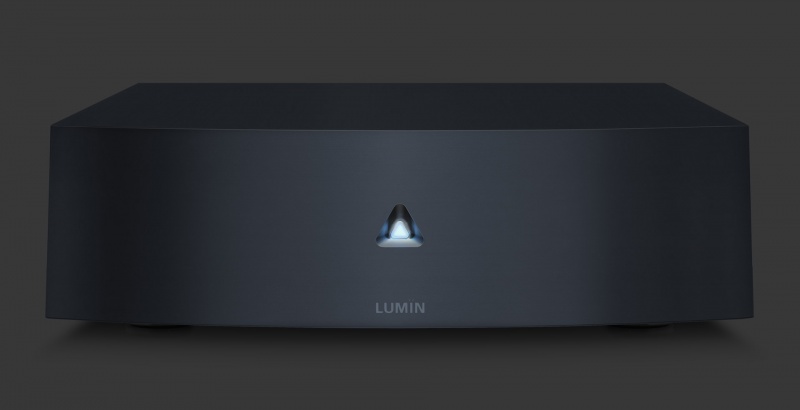

- Black anodized brushed aluminium or Raw brushed aluminium
CONSTRUCTION:
- CNC-machined from a single billet for front, top and sides. Thick 8mm walls, rear panel and base plate
DIMENSIONS:
- 350mm (W), 374mm (D), 104mm (H)
WEIGHT:
- 19kg

T1 SPECIFICATION

DSD SUPPORT:
- DSD64 2.8MHz, 1-bit
HDMI OUTPUT:
- PCM 44.1kHz–192kHz, 16–24-bit
- DSD 2.8MHz, 1-bit
ANALOG OUTPUT STAGE:
- Wolfson WM8741 DAC chips, 1 chip per channel
- Fully balanced layout with high quality components
- Output connectors coupled with dual LUNDAHL LL7401 output transformers
POWER SUPPLY:
- External dual-toroidal
- Available in 240V and 110V versions
PHYSICAL:
- LUMIN:
  - 326mm (W), 295mm (D), 60mm (H), 3kg
- DUAL-TOROIDAL PSU:
  - 100mm (W), 295mm (D), 55mm (H), 2kg

SPECIFICATION FOR ALL LUMIN MUSIC PLAYERS

Specifications are subject to change without notice.

STREAMING PROTOCOL:
- UPnP AV protocol with audio streaming extension
- Gapless Playback
- On-Device Playlist
SUPPORTED AUDIO FILE FORMATS:
- DSD LOSSLESS:
  - DSF (DSD), DIFF (DSD), DoP (DSD)
- PCM LOSSLESS:
  - FLAC, Apple Lossless (ALAC), WAV, AIFF
- COMPRESSED (LOSSY) AUDIO:
  - MP3, AAC (in M4A container)
SUPPORTED AUDIO SAMPLE RATES, BIT DEPTHS, NUMBER OF CHANNELS:
- PCM, 44.1kHz - 384kHz, 16 - 32bit, Stereo
- DSD, 2.8MHz, 1bit, Stereo
UPSAMPLING RATES & BIT DEPTHS:
- DSD upsampling option for all files up to 96kHz
SUPPORTED CONTROL DEVICES:
- All models of Apple iPad (v2 or later). iOS 5.0 or later required. Full Retina Display support.
APP FEATURES:
- High-resolution artwork. Artwork caching. AirPlay compatibility. Multiple-tag handling. ‘Composer’ tag support. Find & Filter. Tag browsing.
INPUT:
- Ethernet Network 100Base-T
- USB storage, flash drive, USB hard disk (Single-partition FAT32, NTFS and EXT2/3 only)
OUTPUTS:
- ANALOG AUDIO:
  - XLR balanced, 4Vrms, pin 2 Hot
  - RCA unbalanced, 2Vrms
- DIGITAL AUDIO:
  - BNC SPDIF:
    - PCM 44.1kHz-192kHz, 16-24bit
    - DSD (DoP, DSD over PCM) 2.8MHz, 1bit
FINISH:
- Raw brushed aluminium
OTHER:
- Firmware-upgradable for further features and enhancements
