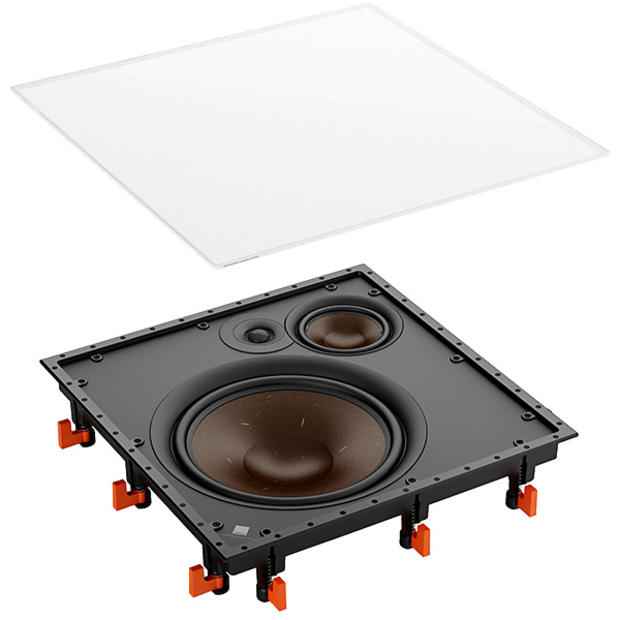

Dali Phantom H120 In Wall Speakers
The totally unique PHANTOM H-120 in-wall speaker brings the best, and then some, from a traditional big floor standing speaker, but is mounted in your wall. With an unprecedented 12” woofer to deliver deep and powerful bass, and a separate 5” woofer to handle the important mid-range area, this 3-way speaker delivers like no other in-wall speaker in the world. Perfect for installations where normal floor-standing speakers or an external subwoofer cannot be used, or when deep, room filling bass is essential.
The PHANTOM H series
The DALI PHANTOM H series is an in-wall speaker build around traditional speaker technologies. At its centre is the easy to recognize the DALI woofer cone made from a mix of paper pulp and wood fibre. This gives the cone a light, well behaved, but random structure that helps reproduce even the smallest details in the music.
The powerful low-loss magnet system deliver precision and timing to the low frequencies and the ultra lightweight soft dome tweeter adds great resolution to the high frequencies. Together they blend into a very coherent, highly detailed, clear and natural soundstage. The PHANTOM H series is a true full range speaker and needs no supplement subwoofer – it is all about true hi-fi sound, versatility, and flexibility.
Frequency Range (+/-3 dB) [Hz] 32 – 25,000
Sensitivity (2,83 V/1 m) [dB] 90.0
Nominal Impedance [ohms] 4
Maximum SPL [dB] 112
Recommended Amplifier Power [W] 50 – 400
Crossover Frequency [Hz] 850 / 4,000
High frequency driver, Quantity 1 x 28 mm
High frequency driver, Diaphragm type Soft Textile Dome
Low frequency driver, Quantity 1 x 5.25″ / 1 x 12″
Low frequency driver, Diaphragm type Wood Fibre Cone
Enclosure type Open back
Connection Input Single Wire
Recommended Placement
Dimensions (HxWxD) [mm] 471 x 471 x 170
Cut-Out Dimensions (HxWxD) [mm] 445 x 445
Weight [kg] 9.00
Accessories Included
- 3mm Allen Key
- Cut-Out Template
- Logo Badge
- Manual
