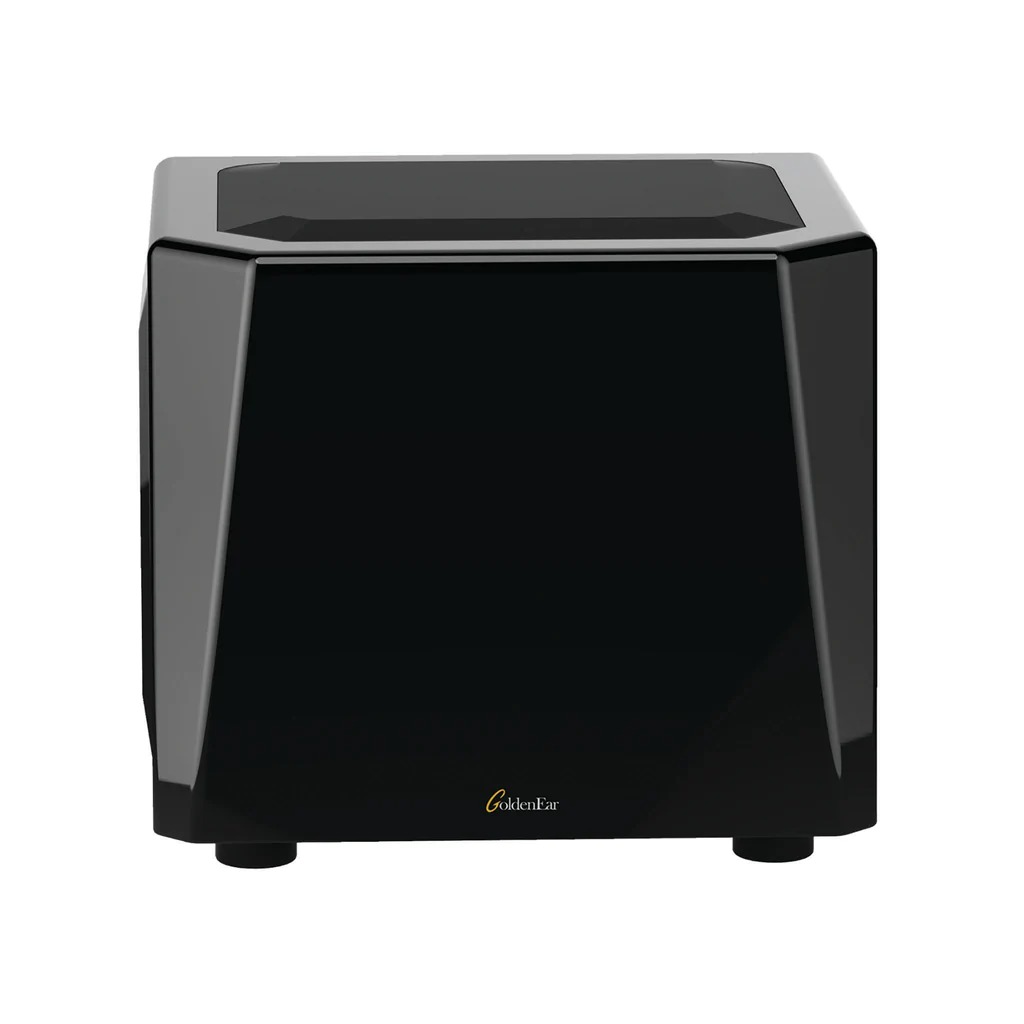

GoldenEar Technology SuperSub XXL Subwoofer
GoldenEar's best subwoofer, the new SuperSub™ Series models are ultra-high-performance yet amazingly compact subwoofers that incorporate many recently developed unique and advanced technologies and components. The goal was to create beautifully styled, finely finished, reasonably sized subwoofers that could generate very low-frequency pressure waves of extremely high amplitude, while delivering accurate and precise low-frequency performance that is both highly impactful and extremely musical.
In order to achieve this, the SuperSubs, GoldenEar's best subwoofer series, incorporates a patented 360 degree dual-plane inertially-balanced driver and sub-bass radiator topology, combined with an advanced electronics package. With two active drivers separated horizontally in space, as well as two passive radiators separated vertically, the driver-to-room coupling is distributed much more smoothly, for in-room bass performance that can’t typically be achieved with a single subwoofer.
The electronics packages that drive the SuperSubs' fully balanced array are a 1,600 W (XXL) and 1,400 W (X) Class D Digital amplifiers whose design is based on the technology originally developed for the GoldenEar Triton One tower. Features include: Discrete multi-band limiting, phase-perfect equalization, fully balanced and advanced reconstruction filters and a strong focus on keeping latency to an absolute minimum. Input facilities include a direct-coupled, unfiltered LFE input for home theater, or stereo Left/Right low-level inputs with low-pass for two-channel setups. Sonically, the result of all this technology is a rock-solid bass response that is both exceptionally fast and tuneful for music and extraordinarily deep and powerful, in order to effortlessly reproduce the most extreme movie sound effects.
Specifications
Frequency response: 10 Hz - 250 Hz
Driver complement: 2 x 12˝ long-throw high-output bass drivers, 2 x 13"x15" quadratic planar infrasonic radiators
Amplifier: 1,600 W ForceField digital amplifier
Inputs: 1 x LFE, 1 x stereo line-level
Dimensions (WHD): 19-3/4" x 17-5/8" x 15-7/8"
Weight: 82 lb
