Meridian AC12 Audio Processor
The AC12 Comms Interface allows Meridian products which use SpeakerLink connections to be combined with products with non-SpeakerLink connection-types. The AC12 is purely passive in operation so all conversion is bi-directional. This allows the AC12 to be used in many differing applications. As it is passive, the AC12 does not require any power-supply or mains connection.
Meridian’s SpeakerLink uses an “Ethernet style” cable that delivers pristine digital sound and control down a single cable between Meridian components.
Easy to install with a variety of applications

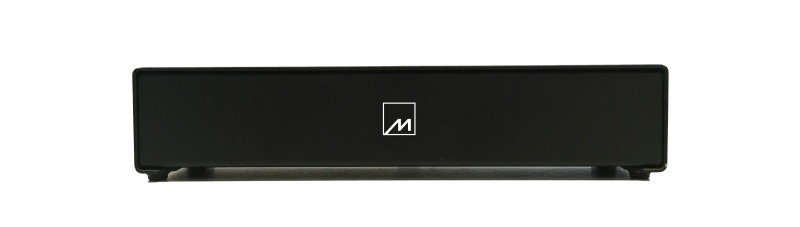

The case is manufactured in high grade steel and is finished in black with white labelling.
Can be shelf or rack mounted near the legacy component.
Technical Specifications:-

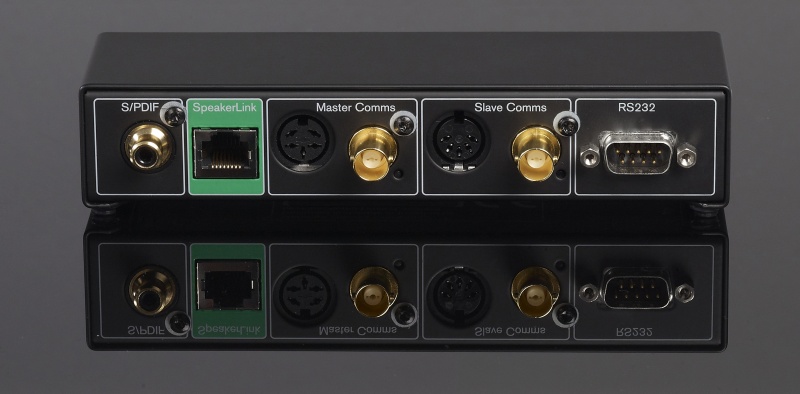

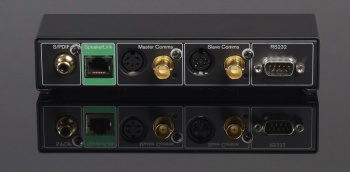

AUDIO INPUTS/OUTPUTS
1 x RS232 control signal (DB9)
1 x SpeakerLink (RJ45)
1 x Digital S/PDIF coax (phon0)
1 x Master Comms” on a 240° 5-pin DIN socket
1 x Master Comms” on BNC socket
1 x Meridian “Slave Comms” on 180° 5-pin DIN socket
1x Meridian “Slave Comms” on BNC socket
DIMENSIONS / WEIGHT
HEIGHT: 35mm [1.38in]
WIDTH: 170mm [6.7in]
DEPTH: 50mm [2in]
WEIGHT: 0.35 kg (12.4 oz)
