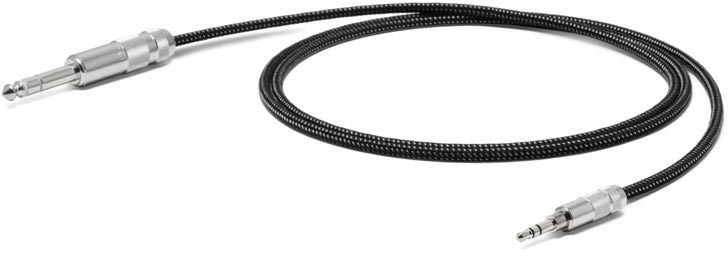

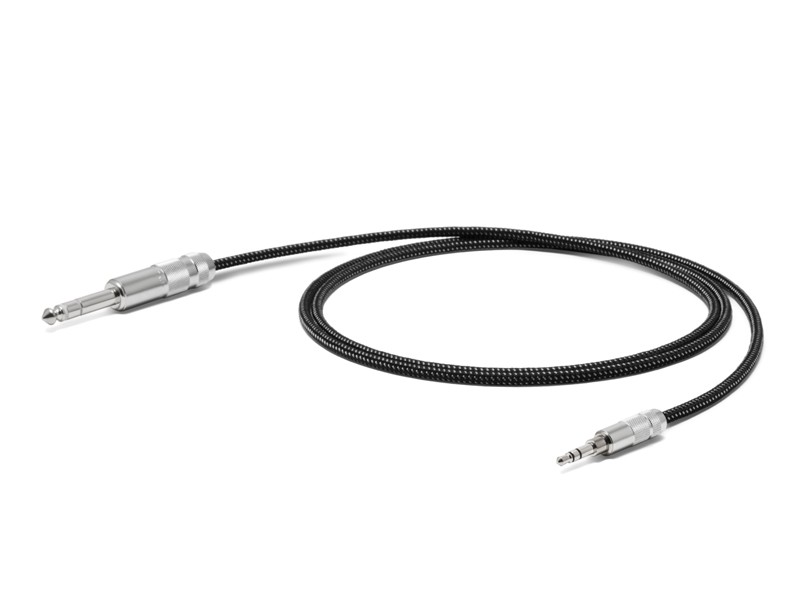

Oyaide HPSC-63 6.3mm to 3.5mm Headphone Cable

Oyaide HPSC-63 6.3mm to 3.5mm Headphone Cable

HPSC Series is a new series to replace the HPC Series. Its key technology is located in the "precision conductor 102 SSC" and "silk". The cable conductor has adopted a "precision conductor 102 SSC" as new materials to replace the PCOCC-A.

Specifications

Cable Name    HPSC-22W
conductor    Precision conductor 102 SSC 7/7 / 0.089 (0.3sq)
Insulator / sheath    TPE (olefin-based elastomer)
Intervention / cable sheathing    Pure silk filament
shield    102 SSC horizontal wound shield (58 / 0.089)
Outermost layer    Pure silk filament braid
Electrical characteristics    Conductor resistance: max 67.9 [Ω / km] .
Insulation resistance:. Min 1 [MΩ · km ]
Outer diameter    φ4.0mm

Plug details

Headphone side plug    [3.5 stereo mini] P-3.5SRHP brass + silver plated + rhodium-plated
Equipment side plug    [6.3 stereo phone] silver plating + rhodium plating to P-240-TRS brass
