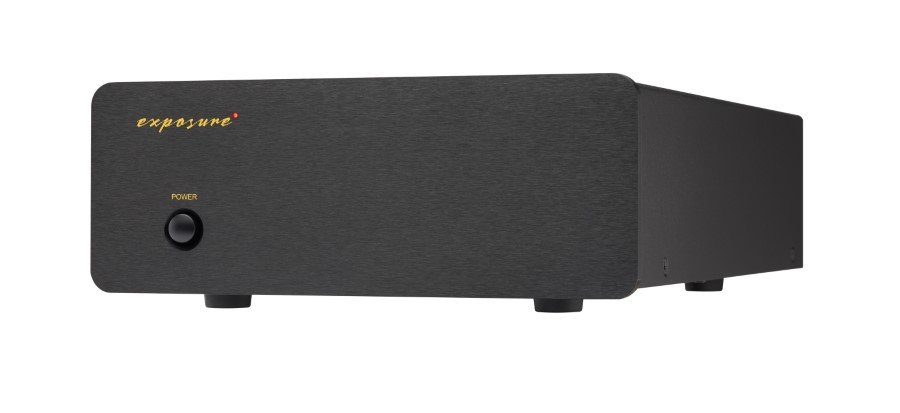

Exposure XM3 Phono Stage

Exposure XM3 Phono Stage

Features

• Large 200VA custom made toroidal transformer for power supply
• Multiple power supply capacitors in parallel for low ESR
• All discrete transistor audio stages
• High quality resistors & capacitors used in the signal path
• Separate MM & MC inputs selectable on the back panel
• Adjustable loading & gain switches on the back panel
• High quality all aluminium case work and extruded front panel
• Three year guarantee

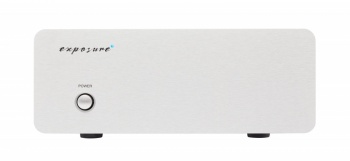

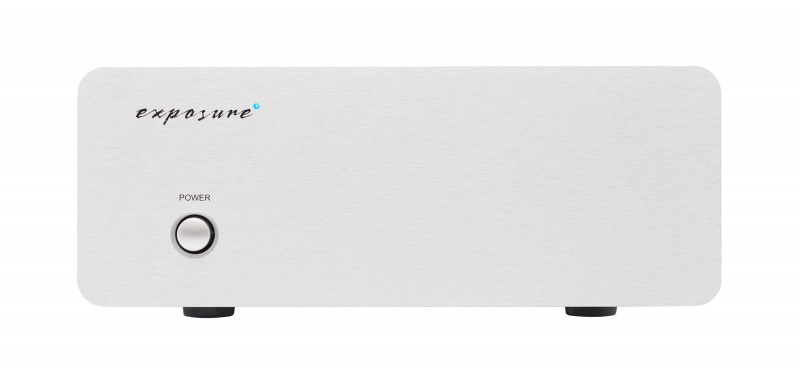

• Available in black or titanium

Specifications

Moving Magnet Input

• Sensitivity : 3.5mV input for 350mV output, 40dB gain setting
• Signal to Noise ratio, ref 1KHz & 350mV out :
• Gain Switch 4 ON : >70dB
• Gain Switch 4 OFF : >78dB

Moving Coil Input

• Sensitivity : 350uV input for 350mV output, 60dB gain setting
• Signal to Noise ratio, ref 1KHz & 350mV out : >67db A weighted. ALL gain switches (4-6)
• General Specifications
• Frequency Response : 30Hz - 20Hz within +/- 0.25dB ref 1KHz with low frequency roll off below 30Hz
• Total Harmonic @ 1KHz, ref 350mV out <0.025% MC Input :
• Maximum Ouput Voltage : 7.8V RMS 1KHz
• Output Impedance : 50 ohms
• Mains Supply : 110/120V or 220/240V @ 50/60Hz (factory set)
• Power Consumption : <25W
• Dimensions (WxHxD) : 218mm x 89mm x 348mm
• Net Weight (unpacked) : 4kg
• Gross Weight (packed) : 5kg
