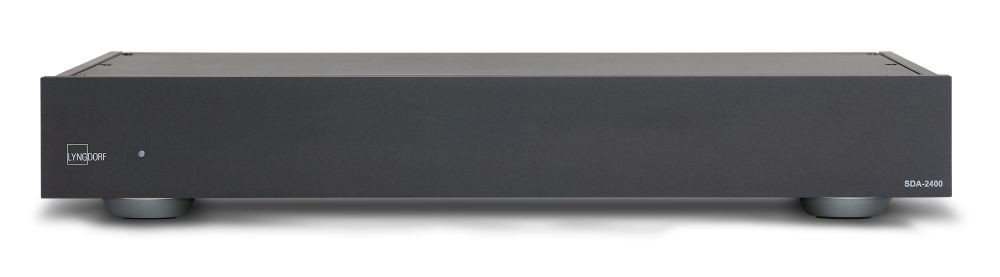

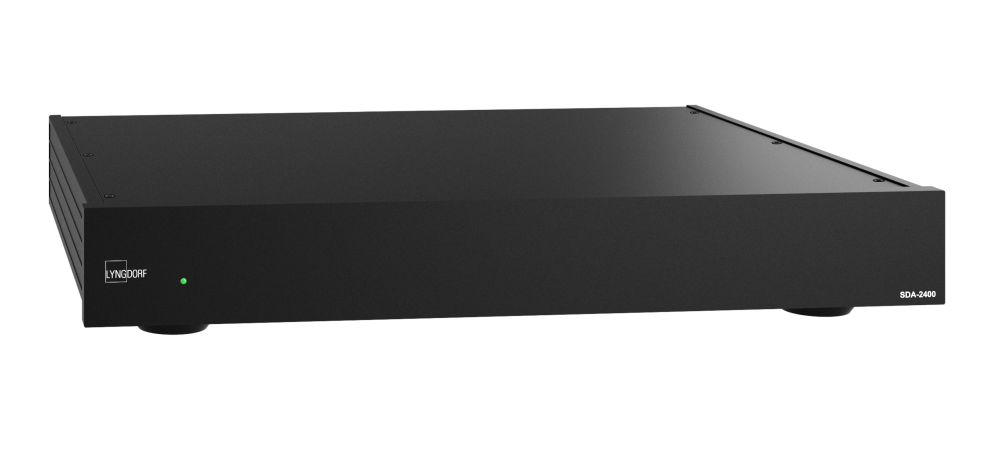

The versatile SDA-2400 digital stereo power amplifier features both analog and digital inputs and optional rack mounts, as well as a range of novel features to deliver outstanding performance in a wide range of applications. The SDA-2400 includes both optical and coaxial digital inputs in addition to the traditional balanced and single-ended analog inputs in order to fit any possible setup.
This power amplifier can function in a traditional stereo or multichannel setup—but also as a powerful addition to single standing media players and streaming devices with integrated volume control. Using the digital connections, there will be no interference or noise from external sources.
The inputs are based upon the Wolfson WM8804 PLL Transceiver for excellent dynamic performance and improved tolerance to clock jitter.
The SDA-2400 has no on/off button. It will automatically go into stand-by mode when not in use. When the amplifier detects a signal, it will turn on automatically. You can set it to always be on—and if your connected device has a 12V trigger output, this can control the power state of the SDA-2400, and even daisy-chain several SDA-2400 amplifiers. Based on the latest technology of MOSFETs, the generation of heat inside the SDA-2400 is much less than comparable amplifiers—both in max load situations and, more importantly, in idle situations where an amplifier typically spends most of its lifetime.
Digital Amplification
Lyngdorf is the pioneer in digital amplifiers, and the SDA-2400 power amplifier is not your typical Class D digital power amplifier. It’s better. It has very low and linear distortion and an impressive signal-to-noise ratio, making it the perfect choice for those seeking the purest sounding high-power amplifier on the market.
The output stage uses Pulse Width Modulation with a patented switch speed optimisation technology. Together with a fixed switching speed of 390 kHz and minimal feedback control, this ensures low and linear distortion compared to typical Class D amplifiers.
