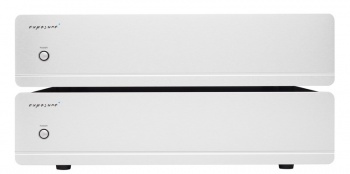

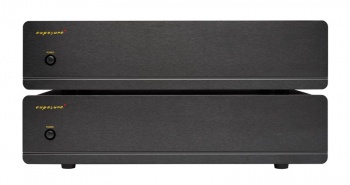

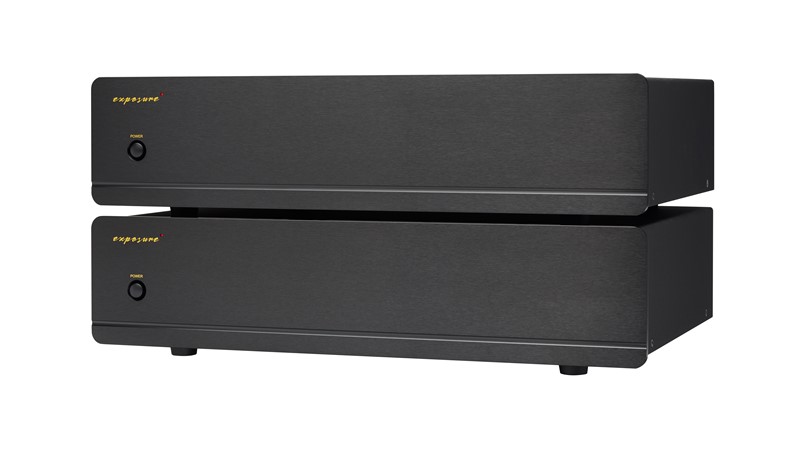

Exposure 5010 Mono Power Amplifiers (Pair)
Features
Large custom made toroidal transformer and screw terminal smoothing capacitors for power supply
All bipolar transistor design using carefully selected parts
DC coupled throughout
Electronic, non-invasive overload protection circuit and thermal trip
Bi-wire speaker outputs using high quality shrouded sockets
High quality all aluminium case work
Three year guarantee
Available in black or titanium
![](/user/products/large/5010mono-hi-image4 (800 x 449).jpg)
Specifications
Power Output : 200W into 8 Ohms, 370W into 4 Ohms
Input Impedance : 75K Ohms at 1KHz, unbalanced input
Frequency Response : -3dB at 52KHz, ref. 1KHz, unbalanced input
Total Harmonic Distortion : 1KHz <0.015% at 200W into 8 Ohms, 1KHz <0.005% at 100W into 8 Ohms
Signal to Noise ratio : >120dB, A weighted, ref. 200W, 8 Ohms output, >100dB A weighted, ref 1W, 8 Ohms output
Power Consumption : <800VA, 8 Ohms load
Mains Supply : 110/120V or 220/240V, 50/60Hz (factory set)
Dimensions - H x W x D : 115mm x 440mm x 300mm
Nett Weight (unpacked) : 14kg
Gross Weight (packed) : 16kg
