Leema Corvus Single Channel (Mono) Amplifier
Zoom  Zoom

Leema Corvus Single Channel (Mono) Amplifier

£3,095.00
£2,579.17 Exc. VAT |  |




Leema Corvus Single Channel (Mono) Amplifier



Available in black or silver

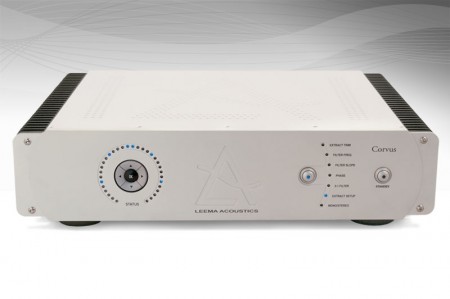

The Corvus is two products in one chassis: an intelligent mono slave amplifier and a studio quality stereo subwoofer controller.  The slave amplifier section of the Corvus has exactly the same topology as one half of the Tucana and the Hydra and is therefore perfect for driving the centre channel in a multi-channel system of uncompromised audiophile quality.

The groundbreaking mono design uses three heavy-duty toroidal power transformers, one for the power amplifier, one for the sub controller, and one for the central processing unit (CPU).  This coupled with a refined bi-polar output stage, which can swing over fifty amps of current, ensures a vice-like grip and precise control of even the most esoteric centre channel loudspeaker.

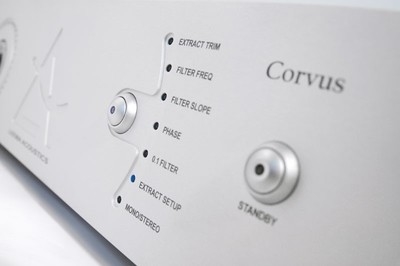

The other side of the Corvus is a studio quality, comprehensive subwoofer control system. This section offers bass extraction, trim, filtering and phase control of mono, or uniquely: stereo subwoofers, in both multi-channel and stereo systems.

Once set up, the Corvus takes its commands from the Tucana via LIPS®.  The input selection and volume controls tracks that of the controlling amplifier with the level indicated by the sophisticated volume display.



Frequency Response +/- 3 dB @ 1W

5 Hz - 80 kHz

Output Power into 8 Ω

148 W RMS

Output Power into 4 Ω

285 W RMS

Minimum load impedance

2 Ω

Output Current

Greater than +/- 50 A

Noise (A weighted, minimum volume)

-100 dBm

Signal to Noise ratio (A weighted, ref: 285 W RMS, 4 Ω)

-104 dB

T.H.D. (10 W RMS, 4 Ω, 1 kHz)

0.004%

T.H.D. (Max output before clipping, 4 Ω, 1 kHz)

0.004%

Maximum DC offset

+/- 15 mV

Sensitivity for maximum output (CD input)

565 mV RMS

Sensitivity for maximum outputs (other inputs)

311 mV RMS

Output Impedance

0.057 Ω

Damping Factor (8 Ω)

140

Bass Management Section



Bass extraction

True stereo bass extraction allowing 2.1, 2.2, 5.1, 5.2 etc. up to 7.2

Filter Frequencies

30 Hz - 200 Hz

Filter slopes

1st, 2nd, 3rd & 4th order

Phase

0-180 degrees, variable

Dimensions (W x H x D)

440 mm x 110 mm x 320 mm

Weight

16 kg
