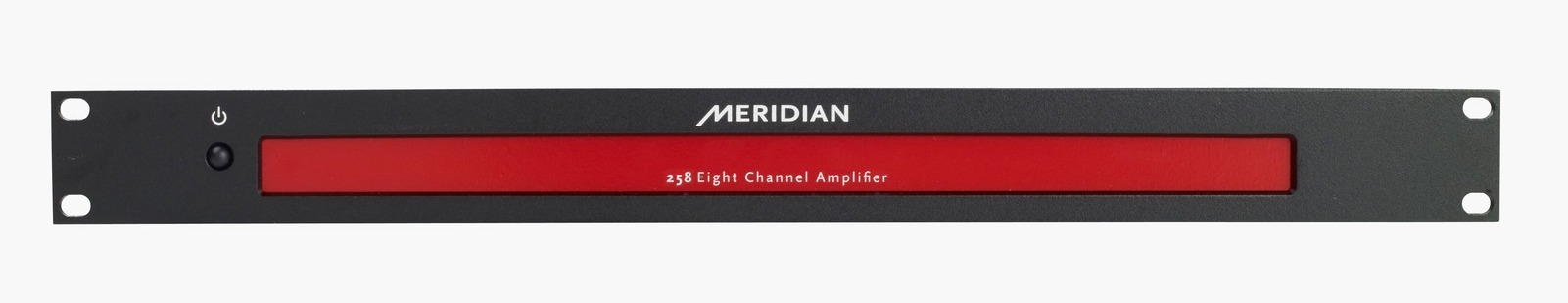

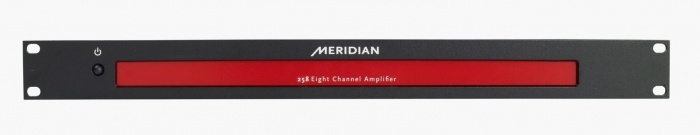

Meridian 258 8 Channel Power Amplifier - New Old Stock
The Meridian 258 is a dedicated rack-mount Eight Channel Power Amplifier. This powerful, high performance, cool-running Class D amplifier is simple to integrate into a wide range of applications and delivers >100W per channel into 4 ohms or >70W per channel into 8 ohms. At only 1U high, the compact 258 is a category changing amplifier; bringing Meridian high resolution sound quality to every zone it powers.
Featuring a highly efficient, cool and fan less construction, the Meridian 258 provides a truly ‘fit and forget’ solution when driving multiple zones. An audiophile approach has been taken to the 258’s component selection, resulting in a level of performance typically associated with power amplifiers offered at a significantly higher price.
Delivers >100W per channel into 4 ohms or >70W per channel into 8 ohms.
Short signal path construction delivers excellent isolation between the 258’s eight channels.
Linear power supply provides isolation from the AC supply to deliver both unbeatable audio performance and reliability.
High efficiency (>95%) Class D amplifiers generate minimal heat, making the 258 a cool-running and stackable solution.
Audio Inputs: Eight RCA inputs
Audio Inputs: 70W into 8 Ohms per channel at 10% THD
100W into 4 Ohms per channel at 10% THD
Phoenix Connectors supplied for ease of installation 24-12 AWG cable
Rear Panel: Trigger input [3.5mm 5-30 VDC]
Front Panel: On/Off Switch
LEDs to indicate ‘Standby’ [Blue], ‘On’ [White], ‘Overload’ [Red]
Dimensions (H x W x D): 44mm x 480mm x 360mm
Weight: 5.5Kg
All aluminium construction
Optional standalone feet pads supplied
Advanced linear power supply: 100V ac 50/60 Hz
