Bel Canto e.One DAC 2.8 DAC Control Preamp

£3,500.00

£2,916.67 Exc. VAT |

Colour:

Description
Specifications
Customer Reviews (0)

Bel Canto e.One DAC 2.7 DAC Control Preamp

Incredible audio performance, features, and flexibility, the DAC2.8 is musically open, detailed, and natural sounding.

HDR Core

HDR Core is the result of 20+ years of engineering that refines the digital to analog process using precision components: Ultra Low Noise Master Clocks, Advanced Asynchronous Interfaces, and Dual Mode Low-Noise High Efficiency Power Supplies. HDR Core technology is fundamental to every e.One DAC and Integrated product, creating the most realistic, open, and defined musical experience possible.

Built In Headphone Output

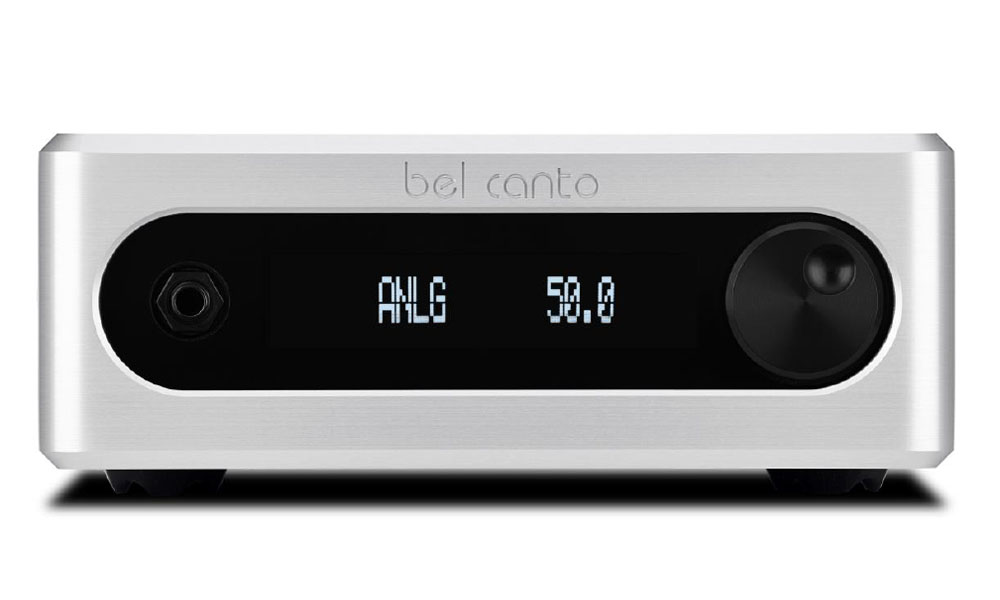

This low-impedance, high-output headphone amp circuit has been designed to drive any pair of high quality headphones with pristine clarity. You'll be amazed at the musical depth they bring to your headset.DAC 2.8 and C6i display and knob controller detail

Simple, Elegant Interface

Designed to be functional and simple, the dual-functioning one knob interface is a joy to use. The programmable 8 character display works with it seamlessly to access all basic functions in a few clicks. The included 36 button infrared remote allows instant command functions and display editing.

Asynchronous USB Input

24/192 Asynchronous input works with the internal dual Ultra Low Noise Femtosecond clocks to provide unprecedented audio sound quality and impact from your computer audio sources.

Class Leading 124dB Dynamic Range
24 Bit Volume Control
24/192 Asynchronous USB2.0
Analog Input

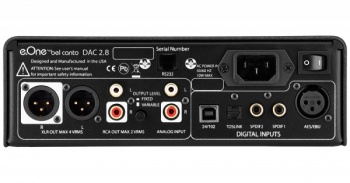

5 Asynchronous Digital Inputs
High Current Headphone Output Driver
Remote Control
Available in Black or Silver Faceplate
MAC USB 2.0 compatibility and custom Windows USB 2.0 driver

Digital Section:
Maximum Data Input Rate:
24bit Data at 192KS/s:	AES XLR, SPDIF BNC/RCA, TOSLINK, USB
Master Clock noise:	0.07 picoseconds RMS
Analog 24/192 DAC Section:
Maximum Output:	4.5Vrms balanced XLR, 2.25Vrms RCA
Output Impedance:	200 ohms balanced XLR, 100 ohms RCA
Frequency Response:	20Hz-20KHz, +/- 0.5dB
THD+N:	<0.001%, 1KHz
Output Noise:	3.3uVrms A-weighted 20Hz-20KHz
Dynamic Range:	124dB A-weighted 20Hz-20KHz
Analog 24/192 ADC Section:
Maximum Input:	2.5 Vrms RCA
Input Impedance:	12K ohms RCA
THD+N:	0.003%, 2.5Vrms in, 1KHz
Dynamic Range:	110dB, A-weighted 20Hz-20KHz
Headphone Section:
Headphone Output Current and Voltage Level:	4.5Vrms, 300mA
THD+N:	0.0015% 1KHz
Output Noise:	3.3uVrms, A-weighted 20Hz-20KHz

General:
Power Usage On:	8W
Power Usage Off:	0.0W
Power Requirement:	100-120VAC, 220-240VAC 50/60 Hz
Dimensions:	8.5" W x 12.5" D x 3.5" H (216 mm x 318 mm x 88 mm)
Weight:	14lbs. (6.5 kg)
