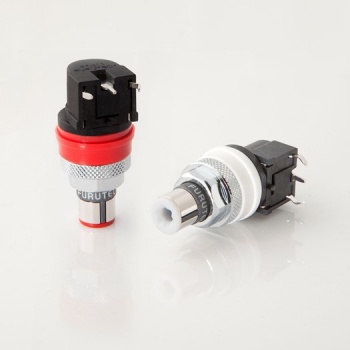

FT-909 (R) Rhodium-Plated

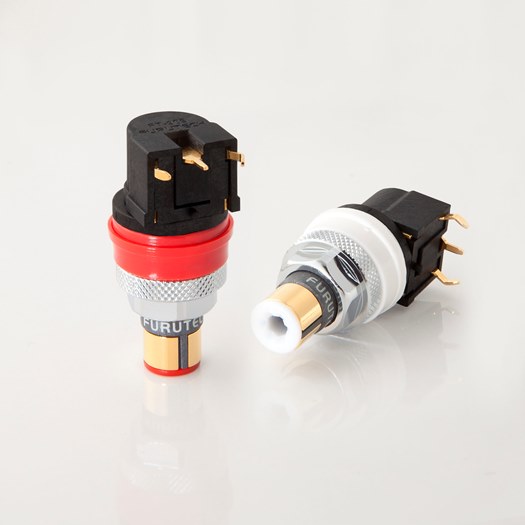

FT-909 (G) 24k Gold-Plated
FEATURES
• Main conductor: 24k gold-plated α (Alpha) Pure copper conductor
• Insulation Body: Liquid Crystal Polymer Resin
• Central Color Insulation and Color ring: Nylon resin (red/white)
• Chassis nut: Plated Lead Free Copper alloy
• Connections: Soldered
Specified for PCB
SPECIFICATIONS
• Specified for core diameters up to 4.5mm
• Dimensions: 20.9 × 17.35 × 36.5mm(L) overall length approx.
