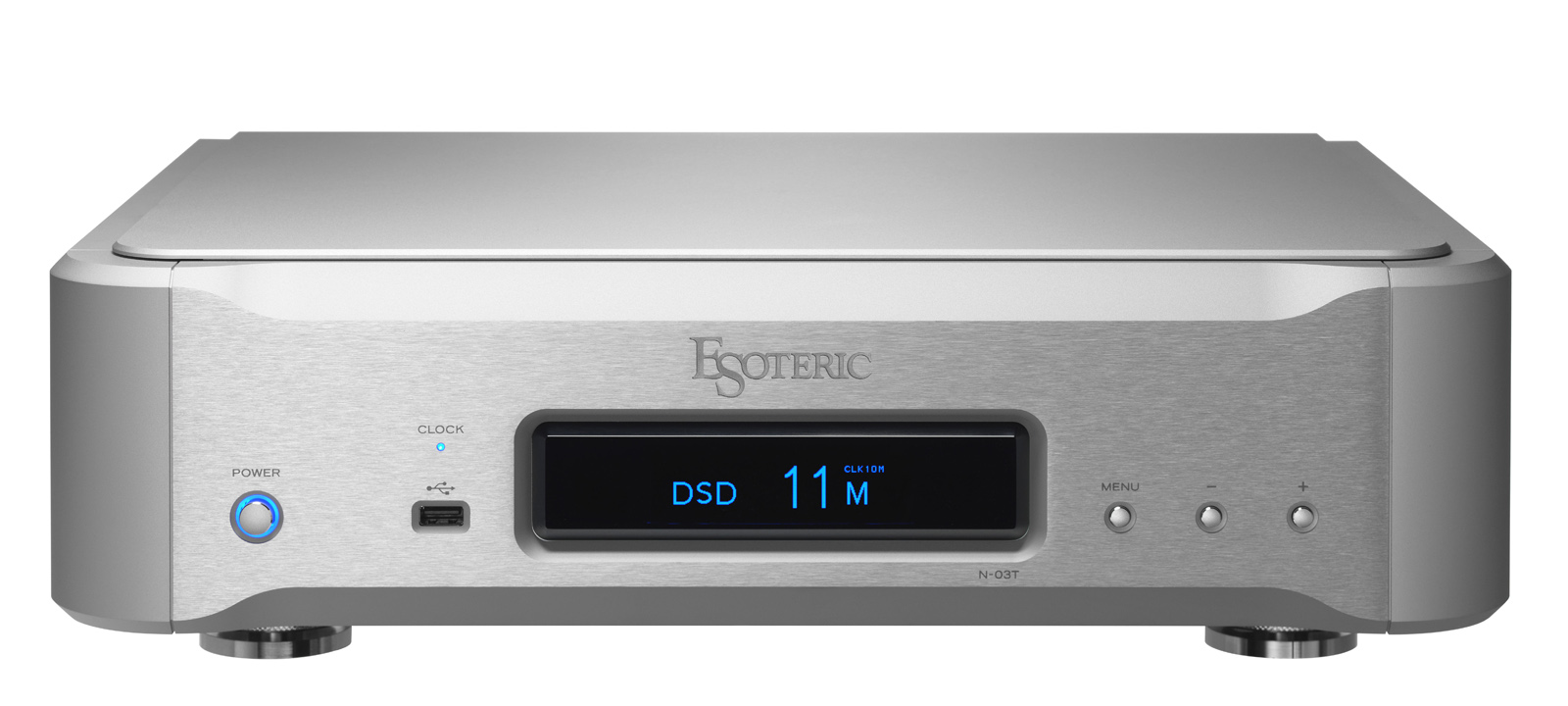

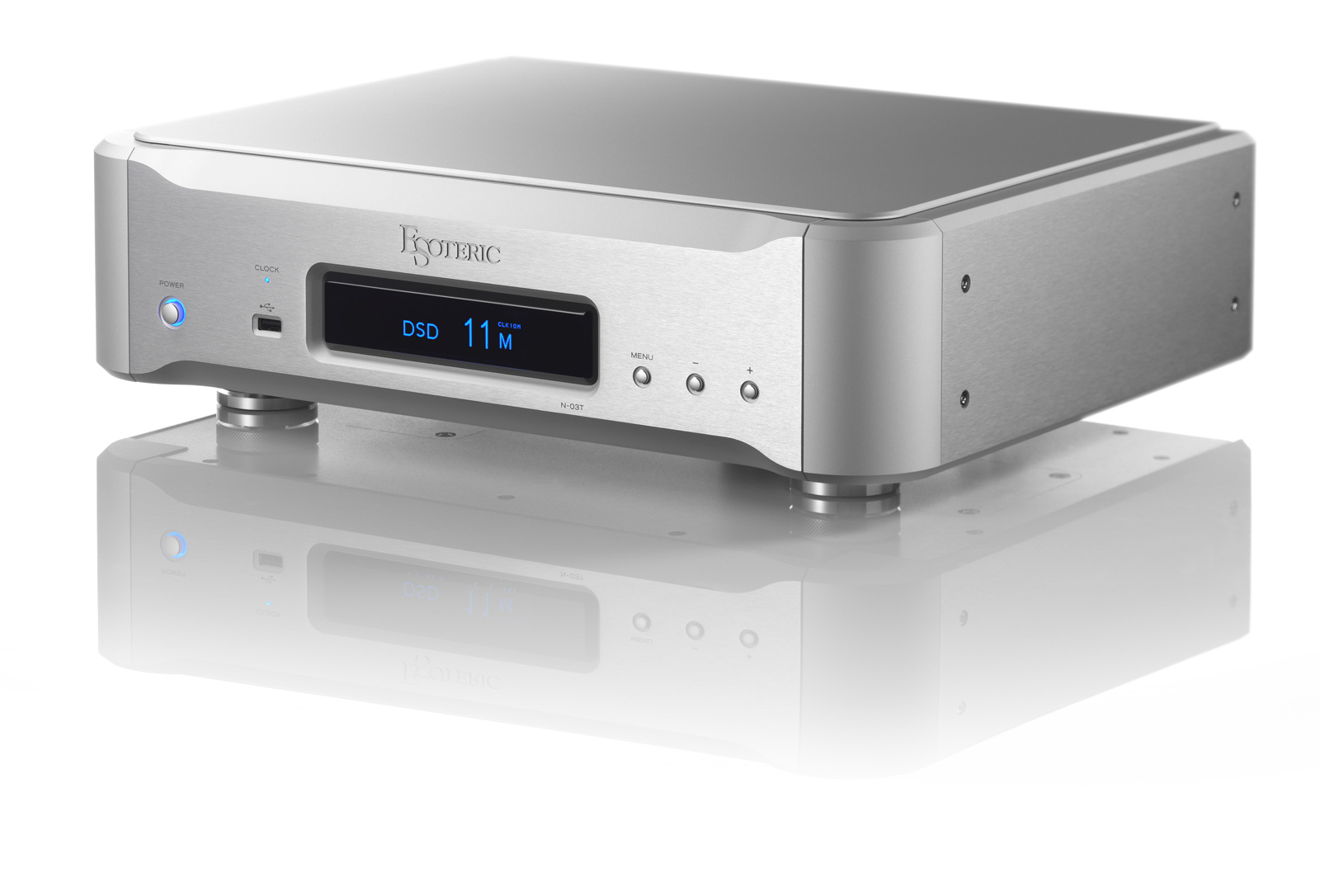

Esoteric N-03T Network Audio Transport
Zoom  Zoom
 Esoteric N-03T Network Audio TransportEsoteric N-03T Network Audio Transport

Esoteric N-03T Network Audio Transport

£11,650.00
£9,708.33 Exc. VAT |  |

Esoteric N-03T Network Audio Transport

To the Future of Musical Reproduction

Massive, super high quality modular systems are the key philosophy that Esoteric has followed since we were first established. We are now bringing this same philosophy to network playback systems with the N-03T network digital audio transport system. Your favorite D/A converter or Super Audio CD player can be digitally connected by USB, enabling you to build just the right system to enjoy playing files or streaming content your way.

Esoteric takes digital transport to a new level with endless options and even more possibilities for audio playback.

The N-03T fulfills every music lover's dream: to access music freely from your living room chair and enjoy the very best audio quality. The DSD master audio source provides a crystal-clear audio experience, your CD collection is arranged in a library for easy access, and streaming services put new music at your fingertips.

The N-03T is a network audio transport system specially designed to connect with an external DAC or a Super Audio CD player's built-in DAC via USB connection. Other than your audio system, all you need is a home LAN (Wi-Fi router, etc.), a tablet or smartphone and a NAS (music server) to store your music library. That's all you need for an easy, comfortable music experience where you don't have to compromise on quality.

Network section
ETHERNET 1 (1000BASE-T)
Supprted file formats
PCM lossless FLAC, Apple Lossless (ALAC) , WAV, AIFF, MQA
DSD lossless DSF, DSDIFF (DFF)
Compresed audio MP3, AAC (m4a container)
USB DRIVE 2 (Front, Rear)
Supported file system FAT32, exFAT, NTFS
  Single partition
  USB2.0 or later recommended
Maximum power supply 0.5A
Input signal formats
Linear PCM 44.1k to 384kHz, 16bit / 24bit / 32bit (stereo)
• Only integer format file supported at 32bit
DSD 2.8MHz, 5.6MHz, 11.2MHz, 22.4MHz (stereo)
Supported file formats
PCM Lossless FLAC, Apple Lossless (ALAC), WAV, AIFF, MQA
DSD Lossless DSF, DSDIFF (DFF) , DoP
Compressed audio MP3, AAC (m4a container)

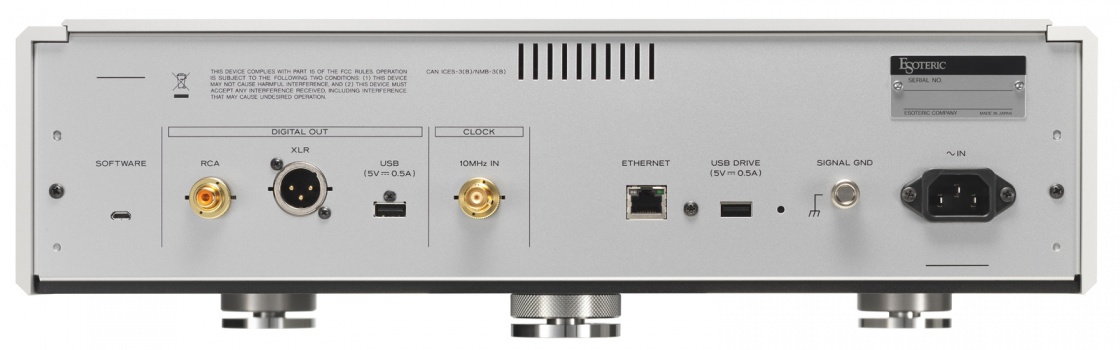

Digital audio outputs
USB 1 (USB2.0 standard)
XLR 1
Output level 3.0Vrms (110Ω load)
Output audio formats
Linear PCM 44.1k to 192kHz, 16bit / 24bit
DSD 2.8MHz (DoP format)
RCA 1
Output level 0.5Vrms (75Ω load)
Output audio formats
Linear PCM 44.1k to 192kHz, 16bit / 24bit
DSD 2.8MHz (DoP format)
Clock sync input
BNC 1
Input impedance 50Ω
Frequencies that can be input 10MHz (±10ppm)
Input level
Rectangle wave equivalent to TTL levels
Sine wave 0.5 to 1.0Vrms (50 to 75Ω)
General
Power supply
  AC 220 - 240V, 50/60Hz
  AC 120V, 60Hz
  AC 220V, 60Hz
Power consumption 31W
External dimensions (W×H×D) 445 × 131 × 360mm
17-⅝" × 5-¼" × 14-¼" (including protrusions)
Weight 17kg / 37-½ lb
Included accessories Power cord × 1
Felt pads × 3
Owner's manual × 1
Warranty card × 1



  • This product is available in three different power supply variations, as shown in the chart above. Make sure that the voltage shown on the rear panel matches the AC line voltage in your area.
  • The shape of the AC inlet and plug of the supplied power cord depends on the voltage rating and destination country.
  • Design and specifications are subject to change without notice.
  • Weight and dimensions are approximate.
