Turntable section
Drive System Belt Drive
Motor DC Motor
Speed 33 1/3 RPM, 45 RPM
Rotation Speed Variation +/–2%
Wow and Flutter 0.2%
Signal-to-Noise Ratio 67dB or higher (A-weighted, 20kHz LPF)
60dB or higher (unweighted, 20kHz LPF)
Platter Aluminum Die-cast
Diameter of Platter 12", 300mm

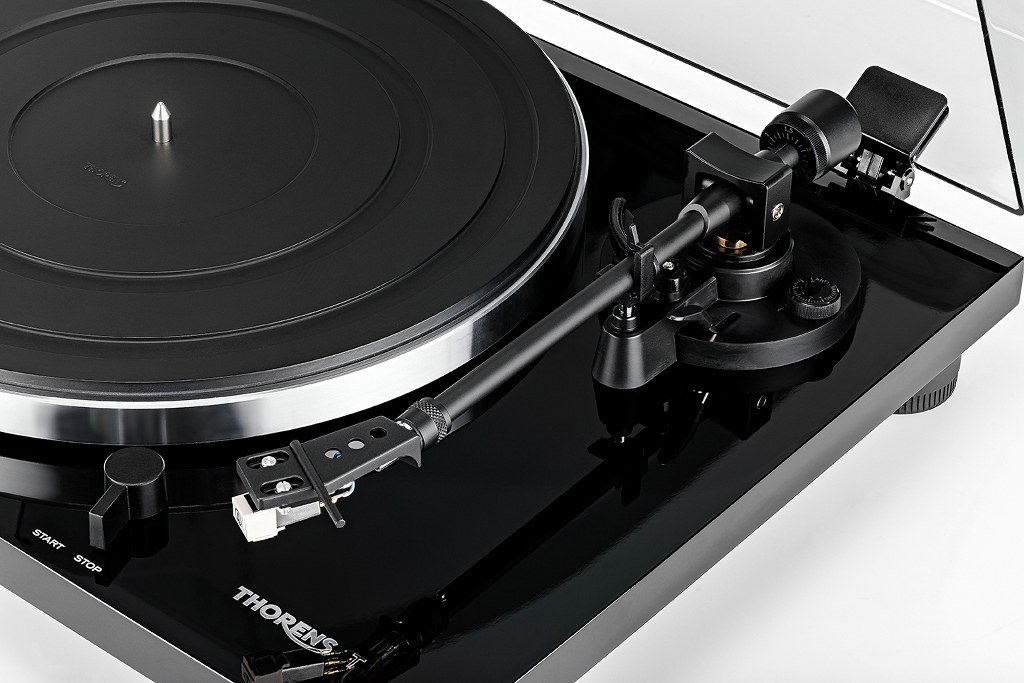

Tonearm section Alumi tube
Type Static Balance, Straight
Effective Arm Length 8.8", 223.6mm
Stylus Pressure Range 0 to 4g
Supported Cartridge Weight 3.5 to 6.0g
Overhang 18.6mm
Anti-skating Adjustment Supported
Cartridge section
Type MM type (Audio-Technica AT3600)
Stylus Construction Bonded Diamond
Frequency Response 20Hz to 20kHz
Channel Separation >18dB
Channel Balance 2.5dB
Vertical Tracking Angle 20 degrees
Supported Load Impedance 47k ohms
Output Voltage 2.5mV (1kHz, 3.54cm/sec.)
Stylus Pressure 3.5g +/–0.5g
Cartridge Weight 5g +/–0.5g
Head-shell Weight 10g (including Screws, Nuts and Wires)
Analog Output
Connector RCA Pin jack (Gold-plated)
Power AC 100 to 240V, 50/60Hz
Power Consumption 1.5W (less than 0.5W at Standby)
Overall Dimensions
(W x H x D)
420 x 355x 121mm
Weight Approx. 3.9 kg
