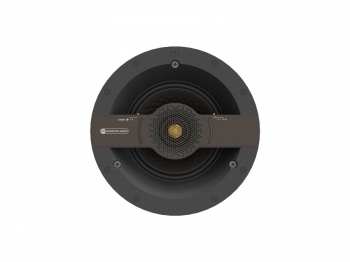

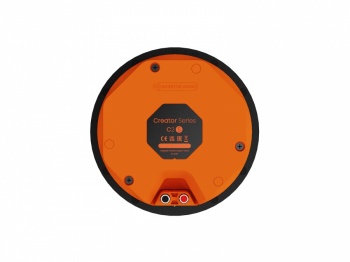

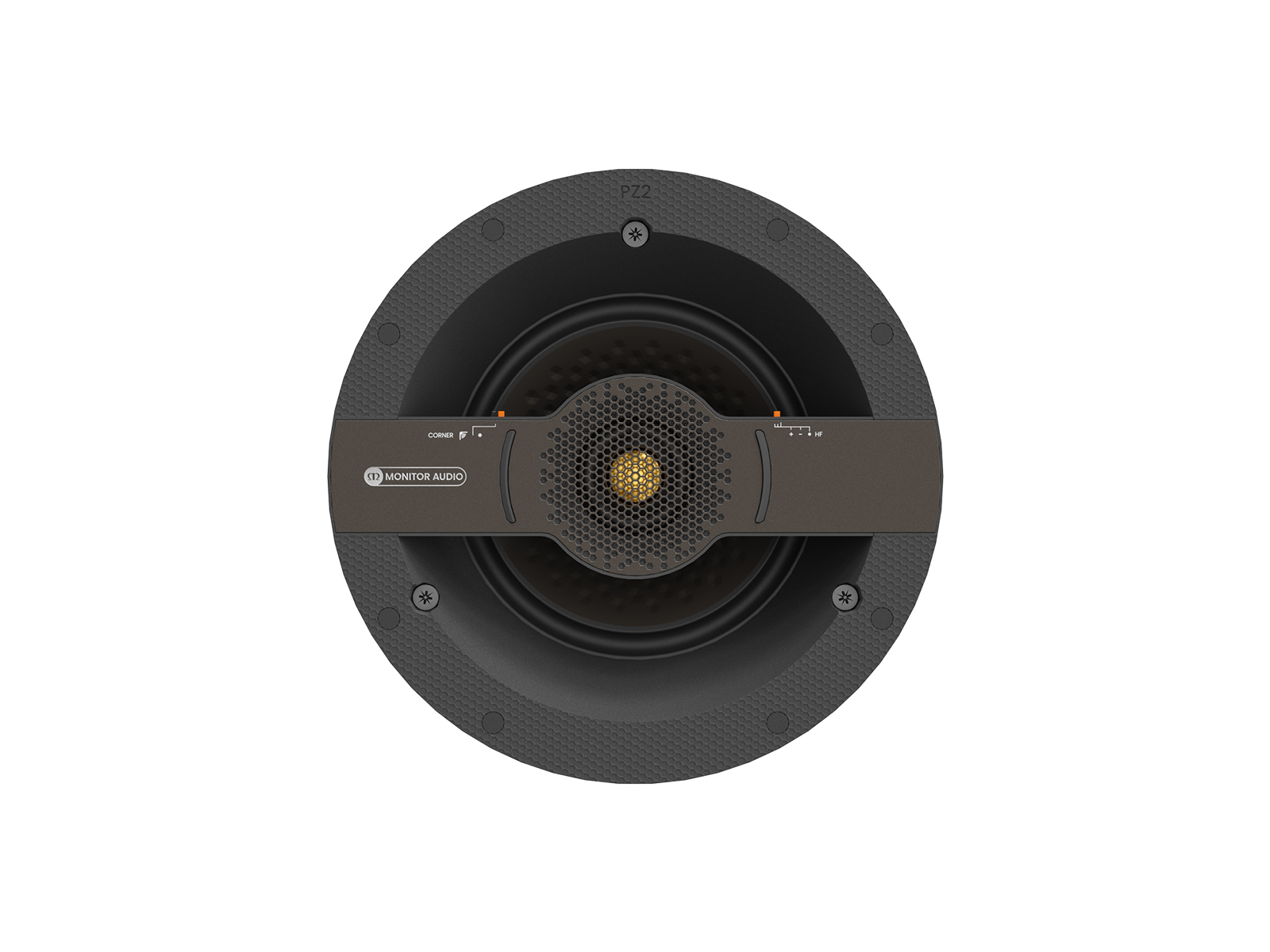

Monitor Audio C2S Creator Series In-Ceiling Speaker
Zoom  Zoom
 Monitor Audio C2S Creator Series In-Ceiling SpeakerMonitor Audio C2S Creator Series In-Ceiling Speaker

Monitor Audio C2S Creator Series In-Ceiling Speaker

Available In-Store Only or Buy and Collect

£350.00
£291.67 Exc. VAT |  |
Share

Monitor Audio C2S Creator Series In-Ceiling Speaker

This small Tier 2 in-ceiling loudspeaker is designed to deliver pristine, engaging acoustics where high-performance sound is a key requirement. It is a two-way model featuring an RST II mid-bass driver and C-CAM tweeter. The performance benefit of having both within a single design means greatly improved clarity, wider dispersion into the listening environment, and clear lifelike high-fidelity sound – of the quality you’d expect from any Monitor Audio passive box loudspeaker. It has a cut-out dimension of 171 mm and uses the patented Quik-Link speaker cable connecter, which revolutionises the ease and speed of speaker installation. Tri-Grip has also been evolved for simple, reliable and strong fitment.

Optional square grille can be used with this model.


Key Features

  • Ideal for installations where pristine acoustic performance is required.
  • Two-way design
  • 1 x 1" (25 mm) C-CAM tweeter with UD Waveguide II for lifelike sound
  • 1 x 5" (127 mm) RST II mid-bass driver for pristine mid-range and full bass
  • Patented Quik-Link speaker cable connector for quicker installation
  • Tri-Grip II for easy and secure fitment

System Format

2–Way

Channels

1

Frequency Response, Installed (-6dB)

40 Hz – 30 kHz​

Nominal Impedance

8 ohm

Minimum Impedance (20Hz to 20kHz)

6.8 Ohm @ 150 Hz

Sensitivity (2.83Vrms@1m, Installed)

84 dB

Maximum Peak SPL* (single speaker @ 1m Z-Weighted)

111 dB

Continuous Power Handling (RMS into Nominal Impedance, Pink Noise with 6dB Crest Factor)

65 W

Recommended Amplifier Power (RMS into 8 OHM, Music Signal)

35 – 130 W

Drive Unit Complement

1 x 5" (127 mm) RST II mid-bass driver
1 x 1 (25 mm) C-CAM tweeter

Crossover Frequency

LF/HF: 2.5 kHz

Mounting Depth

99 mm (37/8")

Cut-Out Hole Diameter

171 mm (63/4")

External Dimensions (Including Grille (H x W x D))

201 x 201 x 103​ mm (715/16 x 715/16 x 44/16")

Weight (each)

1.5 kg (3 lb 5 oz)

Pre-Construction Bracket

CS-B

Cabinet Finish

Matt black & Orange​ & Bronze

Sold As

Single Unit

Corner Switch

On/Off

HF Switch

- /0/ +
