Monitor Audio W1M Creator Series In-Wall Speaker
Zoom  Zoom
 Monitor Audio W1M Creator Series In-Wall SpeakerMonitor Audio W1M Creator Series In-Wall Speaker

Monitor Audio W1M Creator Series In-Wall Speaker

Available In-Store Only or Buy and Collect

£400.00
£333.33 Exc. VAT |  |

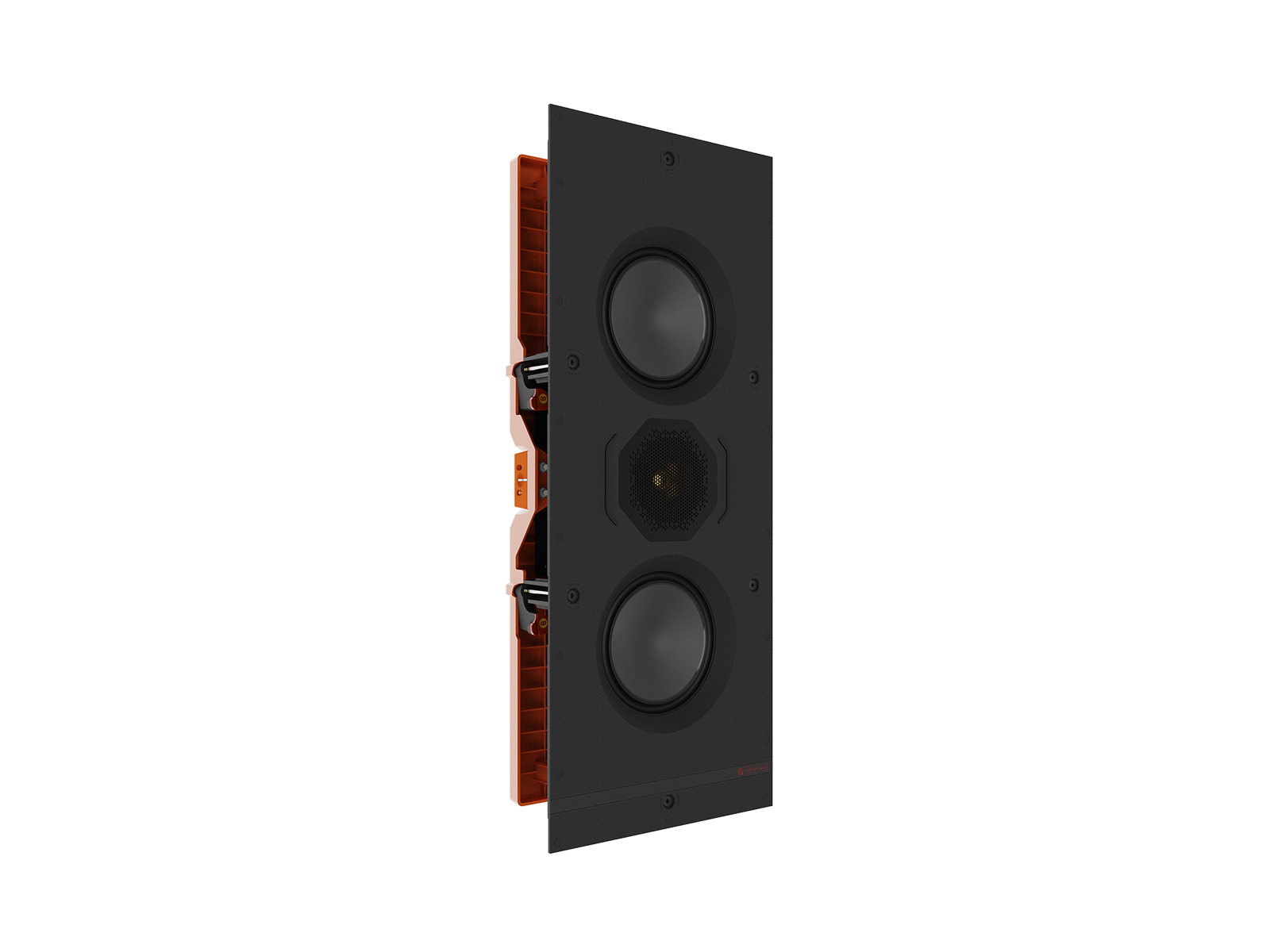

Monitor Audio W1M-E Creator Series In-Wall Speaker

This medium-sized Tier 1 in-wall loudspeaker is designed for cost-effective installations, where product simplicity and solid acoustic performance is required. It is a two-way model featuring a C-CAM mid-bass driver and C-CAM tweeter. The performance benefit of having both within a single design means greatly improved clarity, wider dispersion into the listening environment, and clear lifelike high-fidelity sound – of the quality you’d expect from any Monitor Audio passive box loudspeaker. It has a cut-out dimension of 527 x 198 mm and uses the patented Quik-Link speaker cable connecter, which revolutionises the ease and speed of speaker installation. Tri-Grip has also been evolved for simple, reliable and strong fitment.

Key Features

  • Ideal for cost-effective installations, where product simplicity and solid acoustic performance is required
  • Two-way design
  • 1 x 1" (25 mm) C-CAM tweeter with UD Waveguide I for lifelike sound
  • 2 x 5" (127 mm) C-CAM mid-bass driver for clear mid-range and full bass
  • Patented Quik-Link speaker cable connector for quicker installation
  • Tri-Grip II for easy and secure fitment

System Format

2–Way

Channels

1

Frequency Response, Installed (-6dB)

40 Hz – 30 kHz​

Nominal Impedance

6 ohm

Minimum Impedance (20Hz to 20kHz)

4.8 Ohm @ 15 kHz

Sensitivity (2.83Vrms@1m, Installed)

87 dB

Maximum Peak SPL* (single speaker @ 1m Z-Weighted)

113 dB

Continuous Power Handling (RMS into Nominal Impedance, Pink Noise with 6dB Crest Factor)

75 W

Recommended Amplifier Power (RMS into 8 OHM, Music Signal)

30 – 110 W

Drive Unit Complement

2 x 5" (127 mm) C-CAM mid-bass driver
1 x 1" (25 mm) C-CAM tweeter

Crossover Frequency

LF/HF: 2.75 kHz

Mounting Depth

85 mm (33/8")

Cutout L x W

527 x 198 mm (203/4 x 713/16")

External Dimensions (Including Grille (H x W x D))

540 x 211 x 90 mm (211/4 x 85/16 x 39/16")

Weight (each)

3.4 kg (7 lb 8 oz)

Pre-Construction Bracket

WM-B

Cabinet Finish

Matt black & Orange​

Sold As

Single Unit
