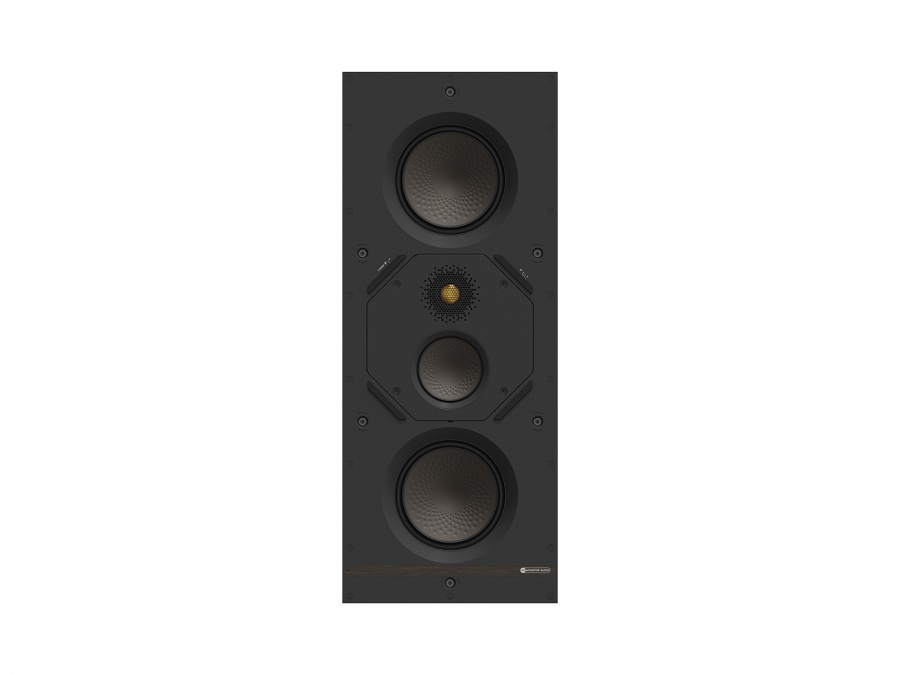

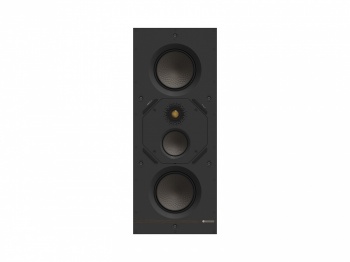

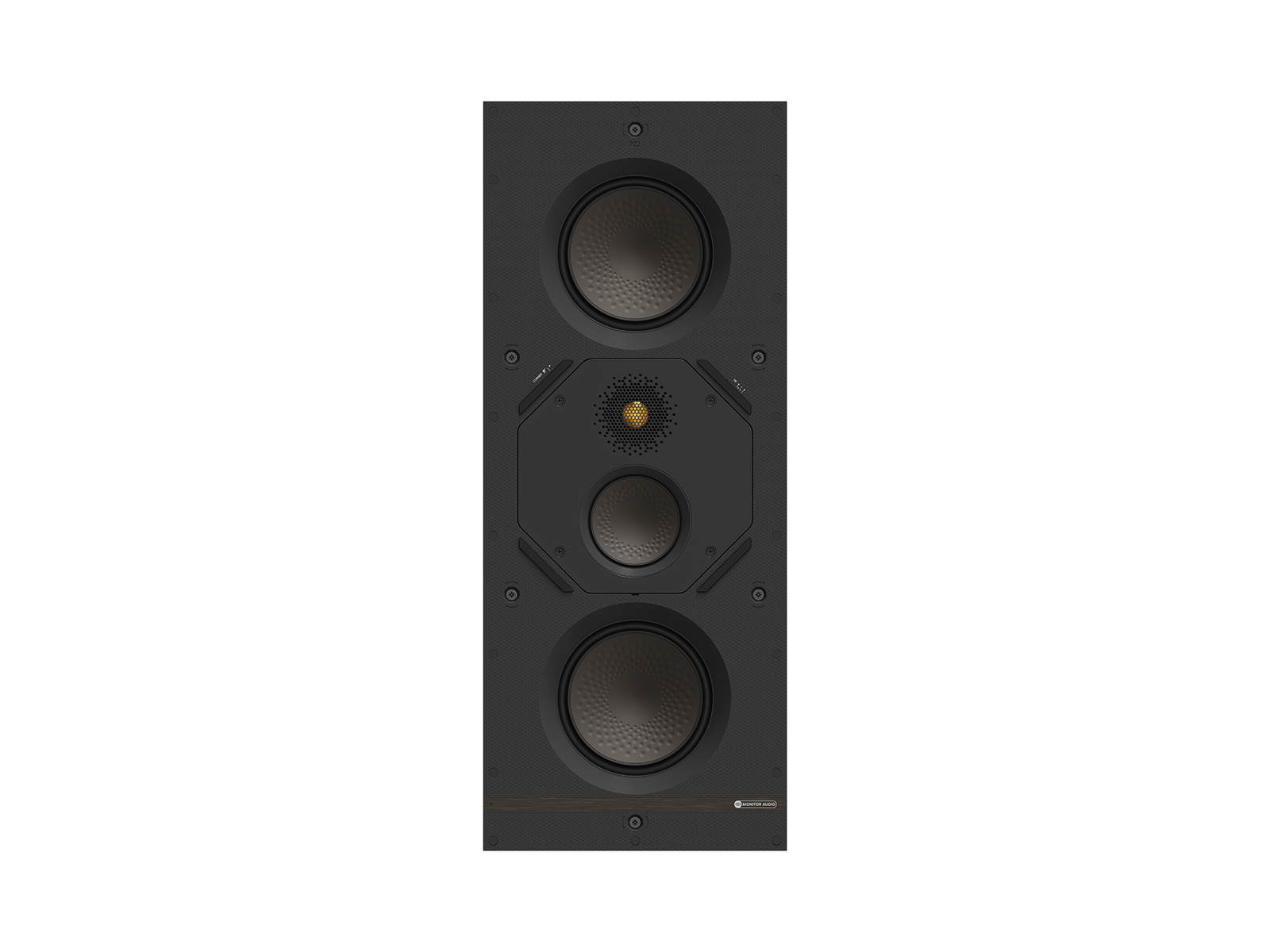

Monitor Audio W2M Creator Series In-Wall Speaker

This medium-sized Tier 2 in-wall loudspeaker is designed to deliver pristine, engaging acoustics where high-performance sound is a key requirement. It is a three-way model featuring two RST II bass drivers, an RST II mid-range driver and a C-CAM tweeter. This combination clear and lifelike high-fidelity sound – of the quality you’d expect from any Monitor Audio passive box loudspeaker. It has a cut-out dimension of 527 x 198 mm and uses the patented Quik-Link speaker cable connecter, which revolutionises the ease and speed of speaker installation. Tri-Grip has also been evolved for simple, reliable and strong fitment.

Key Features

Ideal for installations where pristine acoustic performance is required
Three-way design
1 x 1" (25 mm) C-CAM tweeter with UD Waveguide II for lifelike sound
1 x 3" (76 mm) RST II mid-range driver
2 x 5" (127 mm) RST II bass drivers for full bass
Patented Quik-Link speaker cable connector for quicker installation
Tri-Grip II for easy and secure fitment

System Format

3–Way

Channels

1

Frequency Response, Installed (-6dB)

40 Hz – 35 kHz

Nominal Impedance

6 ohm

Minimum Impedance (20Hz to 20kHz)

4.8 Ohm @ 1 kHz
(4.1 Ohm @ 15 kHz)

Sensitivity (2.83Vrms@1m, Installed)

87 dB

Maximum Peak SPL* (single speaker @ 1m Z-Weighted)

116 dB

Continuous Power Handling (RMS into Nominal Impedance, Pink Noise with 6dB Crest Factor)

120 W

Recommended Amplifier Power (RMS into 8 OHM, Music Signal)

45 – 180 W

Drive Unit Complement

2 x 5" (127 mm) RST II bass driver
1 x 3" (76 mm) RST II midrange driver
1 x 1" (25 mm) C-CAM tweeter

Crossover Frequency

LF/HF: 650 kHz
MF/HF: 3 kHz

Mounting Depth

85 mm (33/8")

Cutout L x W

527 x 198 mm (203/4 x 713/16")

External Dimensions (Including Grille (H x W x D))

540 x 211 x 90 mm (211/4 x 85/16 x 39/16")

Weight (each)

3.9 kg (8 lb 9 oz)

Pre-Construction Bracket

WM-B

Cabinet Finish

Matt black & Orange & Bronze

Sold As

Single Unit

Corner Switch

On/Off

HF Switch

- /0/ +
