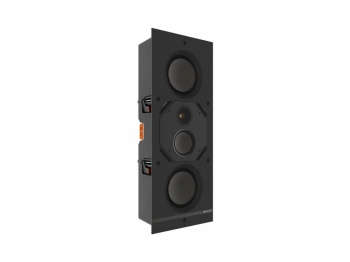

Monitor Audio W2M-CP Creator Series In-Wall Speaker
Zoom  Zoom
 Monitor Audio W2M-CP Creator Series In-Wall SpeakerMonitor Audio W2M-CP Creator Series In-Wall Speaker

Monitor Audio W2M-CP Creator Series In-Wall Speaker

Available In-Store Only or Buy and Collect

£800.00
£666.67 Exc. VAT |  |

Monitor Audio W2M-CP Creator Series In-Wall Speaker

This medium-sized Tier 2 in-wall loudspeaker is designed to deliver pristine, engaging acoustics where high-performance sound is a key requirement. It is a three-way model featuring two RST II bass drivers, an RST II mid-range driver and a C-CAM tweeter. This combination clear and lifelike high-fidelity sound – of the quality you’d expect from any Monitor Audio passive box loudspeaker.

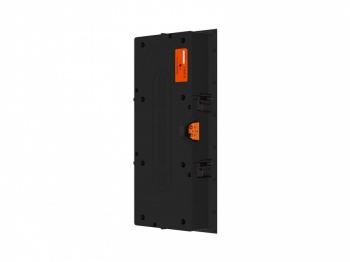

As a Controlled Performance (CP) model, it is fitted with a fully sealed back box that provides an ideal air load for the drivers, optimising mid-range and bass performance while maintaining sonic consistency regardless of interior wall construction. These rigid, mineral filled enclosures reduce the sound from the back of the cabinet by around 30 dB. This range guarantees excellent audio quality and versatility, for superior level of sound isolation between rooms and floors.

It has a cut out dimension of 527 x 198 mm and uses the patented Quik-Link speaker cable connecter, which revolutionises the ease and speed of speaker installation. Tri-Grip has also been evolved for simple, reliable and strong fitment.


Key Features

  • Ideal for installations where pristine acoustic performance is required.
  • Fitted back box delivers consistent performance regardless of interior wall construction
  • Three-way design
  • 1 x 1" (25mm) C-CAM tweeter with UD Waveguide II for lifelike sound
  • 1 x 3" (76 mm) RST II mid-range driver
  • 2 x 5" (127 mm) RST II bass drivers for full bass
  • Patented Quik-Link speaker cable connector for quicker installation
  • Tri-Grip II for easy and secure fitment

System Format

3–Way

Channels

1

Frequency Response, Installed (-6dB)

60 Hz – 35 kHz​

Nominal Impedance

6 ohm

Minimum Impedance (20Hz to 20kHz)

4.8 Ohm @ 1 kHz
(4.3 Ohm @ 15 kHz)

Sensitivity (2.83Vrms@1m, Installed)

87 dB

Maximum Peak SPL* (single speaker @ 1m Z-Weighted)

118 dB

Continuous Power Handling (RMS into Nominal Impedance, Pink Noise with 6dB Crest Factor)

100 W

Recommended Amplifier Power (RMS into 8 OHM, Music Signal)

40 – 150 W

Drive Unit Complement

2 x 5" (127 mm) RST II bass driver
1 x 3" (76 mm) RST II mid-range driver
1 x 1" (25 mm) C-CAM tweeter

Crossover Frequency

LF/HF: 550 kHz
MF/HF: 3 kHz

Bass Alignment

Sealed

Mounting Depth

97 mm (313/16")

Cutout L x W

527 x 198 mm (203/4 x 713/16")

External Dimensions (Including Grille (H x W x D))

540 x 212 x 102 mm (211/4 x 83/8 x 4")

Weight (each)

4.4 kg (9 lb 11 oz)

Pre-Construction Bracket

WM-B

Cabinet Finish

Matt black & Orange & Bronze

Sold As

Single Unit

Corner Switch

On/Off

HF Switch

- /0/ +
