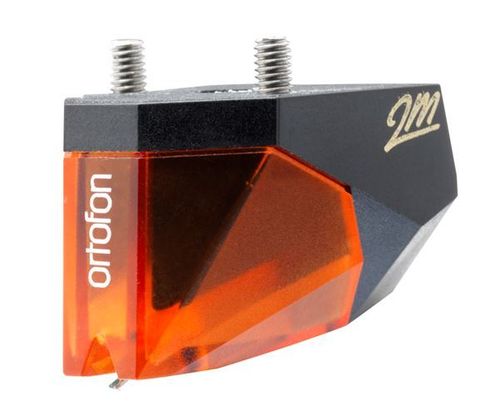

Ortofon 2M Bronze Verso MM Cartridge

Ortofon 2M Bronze Verso MM Cartridge

• The 2M series of cartridges are now also available in a special version, suited for bottom-mount tonearms.

The 2M Bronze features a nude Fine-Line stylus, polished to the highest standards. The slimmer profile of this stylus will track even the highest frequency modulations, making this cartridge better suited for extremely demanding material. Distortion and record wear are substantially reduced.

Specifications:

• Output voltage at 1000 Hz, 5cm/sec. 5 mV
• Channel balance at 1 kHz 1 dB
• Channel separation at 1 kHz 26 dB
• Channel separation at 15 kHz 15 dB
• Frequency range at - 3dB 20-29.000 Hz
• Frequency response 20-20.000 + 2 / - 0 dB
• Tracking ability at 315Hz at recommended tracking force 80 µm
• Compliance, dynamic, lateral 22 µm/mN
• Stylus type Nude Fine Line
• Stylus tip radius r/R 8/40 µm
• Tracking force range 1.4-1.7g (14-17 mN)
• Tracking force, recommended 1.5 g (15 mN)
• Tracking angle 20°
• Internal impedance, DC resistance 1.2 kOhm
• Internal inductance 630 mH
• Recommended load resistance 47 kOhm
• Recommended load capacitance 150-300 pF
• Cartridge colour, body/stylus Black/Bronze
• Cartridge weight 7.2 g
• Replacement stylus unit 2M Bronze
