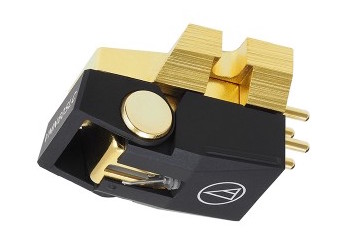

Audio Technica VM760SLC Dual Moving Magnet Stereo Cartridge
Zoom  Zoom

Audio Technica VM760SLC Dual Moving Magnet Stereo Cartridge

£599.00
£499.17 Exc. VAT |  |

Audio Technica VM760SLC Dual MM Stereo Cartridge

VM760SLC

DUAL MOVING MAGNET STEREO CARTRIDGE

Using an ultra-lightweight stylus tip ground to a high level of precision, we have achieved a combination of low distortion rate with fuller frequency reproduction during playback. This stylus tip extracts every possible piece of information from the grooves on a record.

AUDIO-TECHNICA’S INTERNATIONALLY-PATENTED DUAL MAGNET DESIGN REPLICATES THE STRUCTURE OF THE CUTTER HEAD.

Instead of using a single, large magnet, the two magnets are arranged in the shape of a "V". The two magnets are positioned precisely to match the positions of the left and right channels in the stereo groove walls. Consequently, the VM design ensures outstanding channel separation, extended frequency response and superb tracking.

Para-toroidal generating system

Para-toroidal coils improve generating efficiency and offers superb linearity, since leakage of magnetic flux in this continuous and unitised magnetic circuit is low. Permeability of the cores is also optimised through the use of laminated cores.

Centre shield plate reduces crosstalk

A permalloy centre shield plate enables the effective separation of left and right channels, suppressing electrical crosstalk to below 40dB. This is similar to the actual crosstalk value found in the grooves of the record itself.

Features:

  • Special line contact with diamond stylus construction has the ability to track the most complex record groove
  • VM type dual magnet design ensures outstanding channel separation, extended frequency response and superb tracking
  • Lightweight tapered aluminium cantilever allows for faithful reading of the record groove
  • Centre shield plate enables the effective separation of left and right channels, suppressing electrical crosstalk to below 40dB
  • Die-cast aluminium alloy housing reduces vibration and adds a natural electrical shield
Type VM Type
Mounting 1/2” centres
Frequency Response 20 - 30,000Hz
Channel Separation 30dB (1kHz)
Output Channel Balance 1.0dB (1kHz)
Output Voltage 4.0mV (1kHz, 5cm/sec.)
Vertical Tracking Angle 23˚
Vertical Tracking Force Range 1.8 – 2.2g (2.0g standard)
Stylus Shape Special Line Contact
Stylus Size 0.28 x 1.5 mil
Stylus Construction Nude Rectangular Shank
Cantilever Aluminium Tapered Pipe
Coil Impedance 2,700Ω (1kHz)
Static Compliance 40 x 10-6 cm/dyne
Dynamic Compliance 10 x 10-6 cm/dyne (100Hz)
Recommended Load Impedance 47,000Ω
Recommended Load Capacitance 100 – 200pF
Weight 8.0g
Dimensions 17.3 (H) x 17.0 (W) x 28.2 (L) mm
Replacement Stylus VMN60SLC
Accessories Included Cartridge installation screws 5mm ×2 and 10mm ×2, Washer ×2, Hexagon nut ×2, Non-magnetic screwdriver ×1, Brush ×1, Lead wire set ×1
