Van den Hul MC-Two Special MC Moving Coil Cartridge
Zoom  Zoom

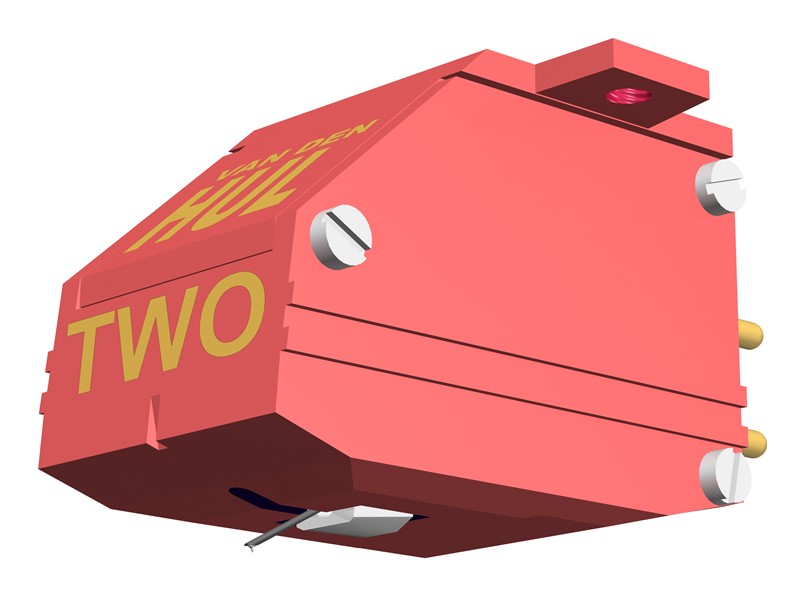

Van den Hul MC-Two Special MC Moving Coil Cartridge

£1,699.00
£1,415.83 Exc. VAT |  |



Van den Hul MC-Two Special MC Moving Coil Cartridge

A custom handbuilt moving coil cartridge; High output version of the MC - ONE Special with 2.25 mV/channel and matched crystal copper-wire coils. The designation “Special” in this cartridge’s name indicates important improvements over its previous version:

  • The cartridge is equipped with a thicker frontpole and an extra small magnet, both further enhancing its resolution capabilities and output voltage.


Production time:

  • The production time for a MC - TWO Special cartridge after ordering is about two weeks.
THE MC - TWO SPECIAL
stylus replacement see (*1)
stylus shape VDH - I
stylus radii 3 x 85 Micron
frequency range 5 - 50.000 Hz
tracking force 13.5 - 15.0 mN
static compliance 28 Micron/mN
tracking ability 70 - 80 Micron
output voltage

2.25 mV RMS

channel unbalance < 0.5 dB
channel separation

> 35 / > 30 dB

stylus tip mass 0.35 Milligram
system weight 8.2 Gram
vertical tracking angle 22 Degrees
load capacitance see (*2)
load impedance

47k (> 1k) Ohm

eff tone arm mass 8 - 12 Gram
moving coil resistance

96 Ohm +/- 10%

extra info

(*1): Stylus replacement and other services available on request

(*2): Non critical
