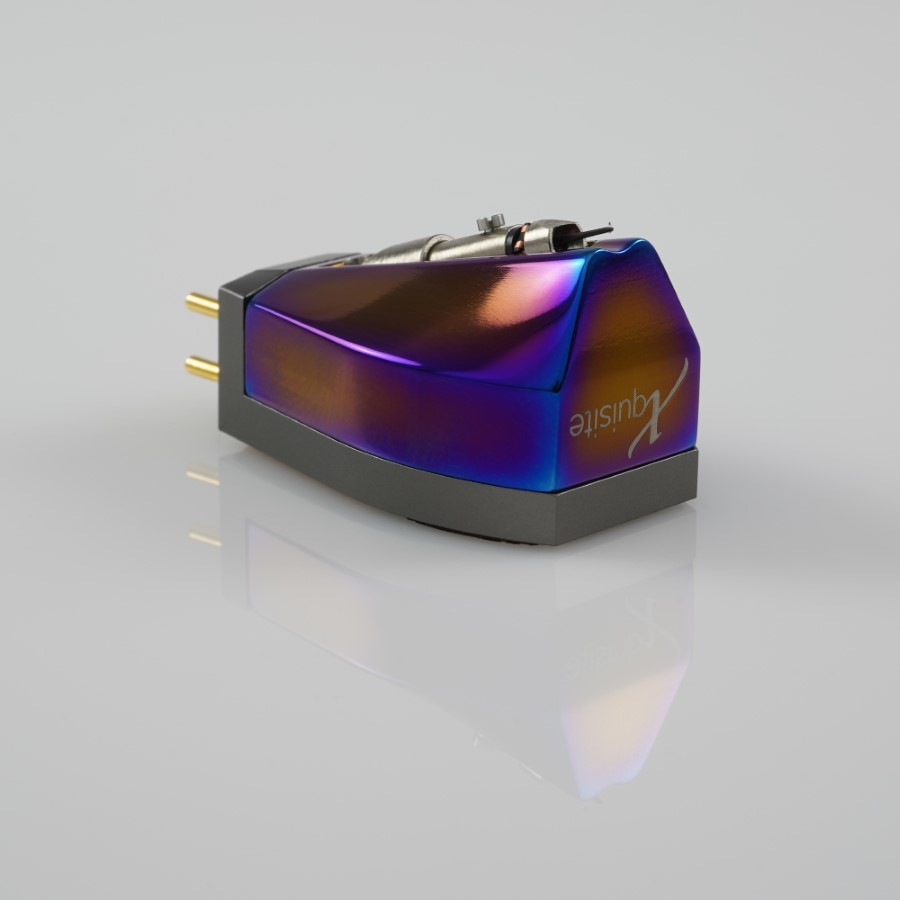

All X-quisite cartridges take advantage of the patented monobloc-ceramic transducer technology, which ensures supreme detail resolution and at the same time extremely natural sound. The FIRE model features a titanium body with special coating process applied: each cartridge is a unique item regarding colour and gradient. The pure copper coil which has been carefully matched with an advanced aluminium-wood sandwich-body to achieve most dynamic sound characteristics. Each X-quisite cartridge is handmade piece by piece and calibrated by Micha Huber personally.
Cantilever and coil body: Monobloc ceramic unit, patented design
Coil: Pure Copper 4N
Diamond shape: Micro ridge
Magnet unit: Neodym-Armco, reduced eddy current loss
Body: Titanium Unique
Connection: 1/2" – 4pin, gold plated
Vertical Tracking Angle: 20°
Weight: 16,6g
Tracking force: 1,9…2,1g
Output voltage: 0,3mV @ 5cm/s
Compliance: 12µm/mN
Frequency response: 20 - 30‘000Hz
FIM disortion: max. 0,2%
Impedance: 2x 24Ω
Recommended load: 400 - 800Ω
